Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - Front Floor Console .
  2. Disconnect the electrical connector from the front floor console power accessory port.

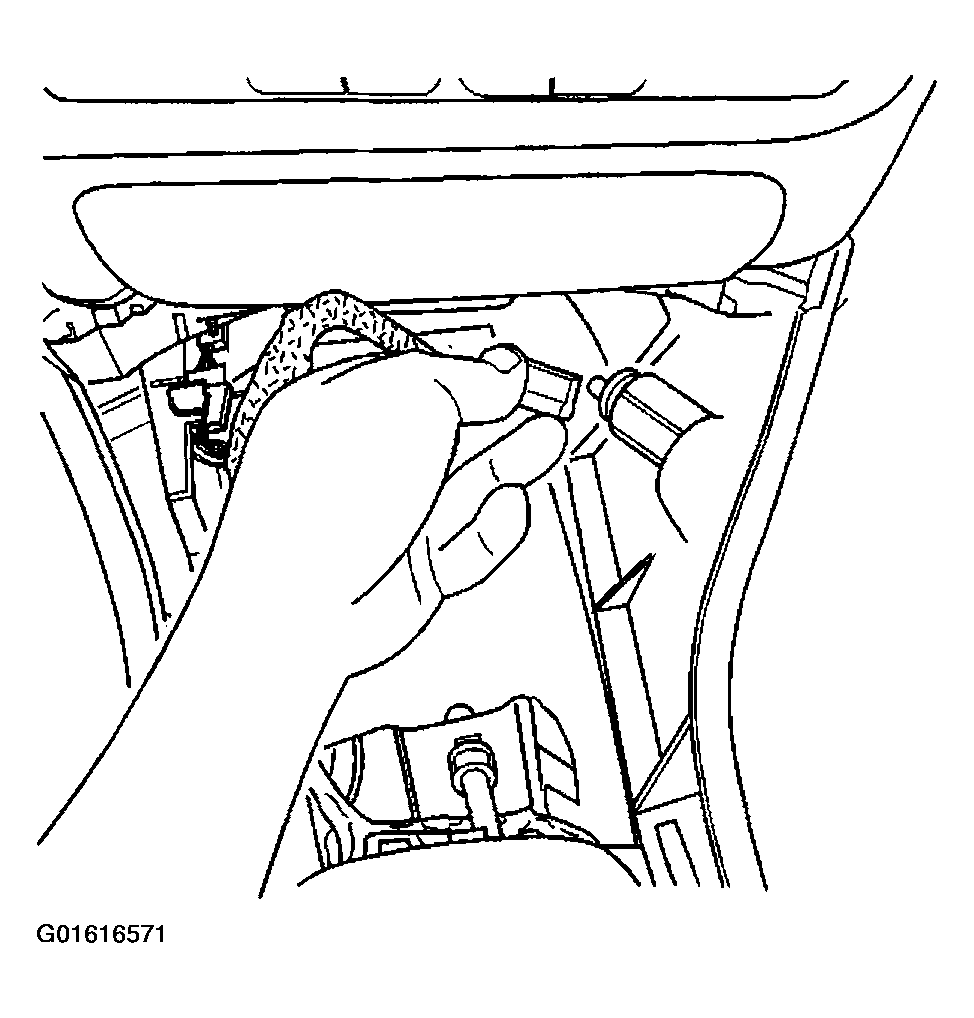

    Fig 1: Power Accessory Port Electrical Connector
    G01616571Courtesy of GENERAL MOTORS CORP.
  3. Unscrew the housing from the power accessory port.
  4. Remove the power accessory port from the front floor console.

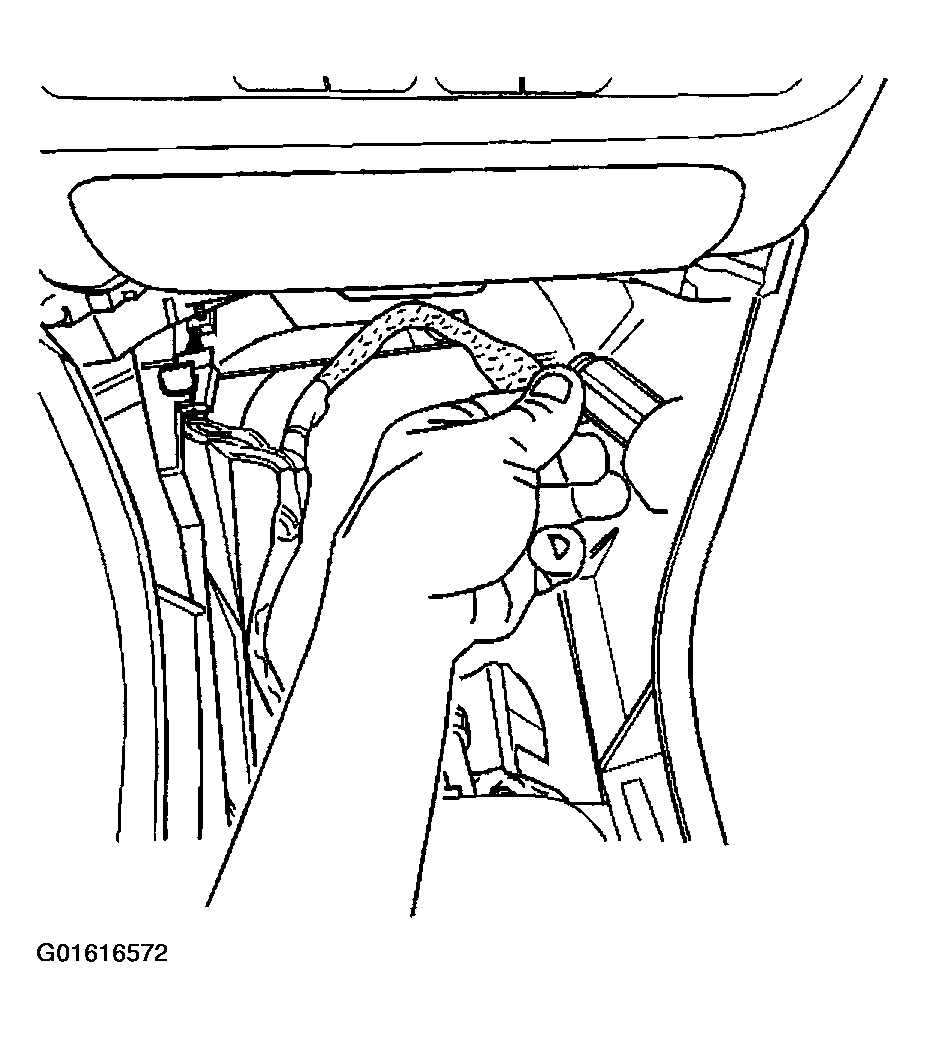

    Fig 2: Power Accessory Port
    G01616572Courtesy of GENERAL MOTORS CORP.
