Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel (IP) insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - Left .
  2. Remove the steering column filler. Refer to Steering Column Filler Replacement .
  3. Remove the knee bolster bracket bolts at the IP.

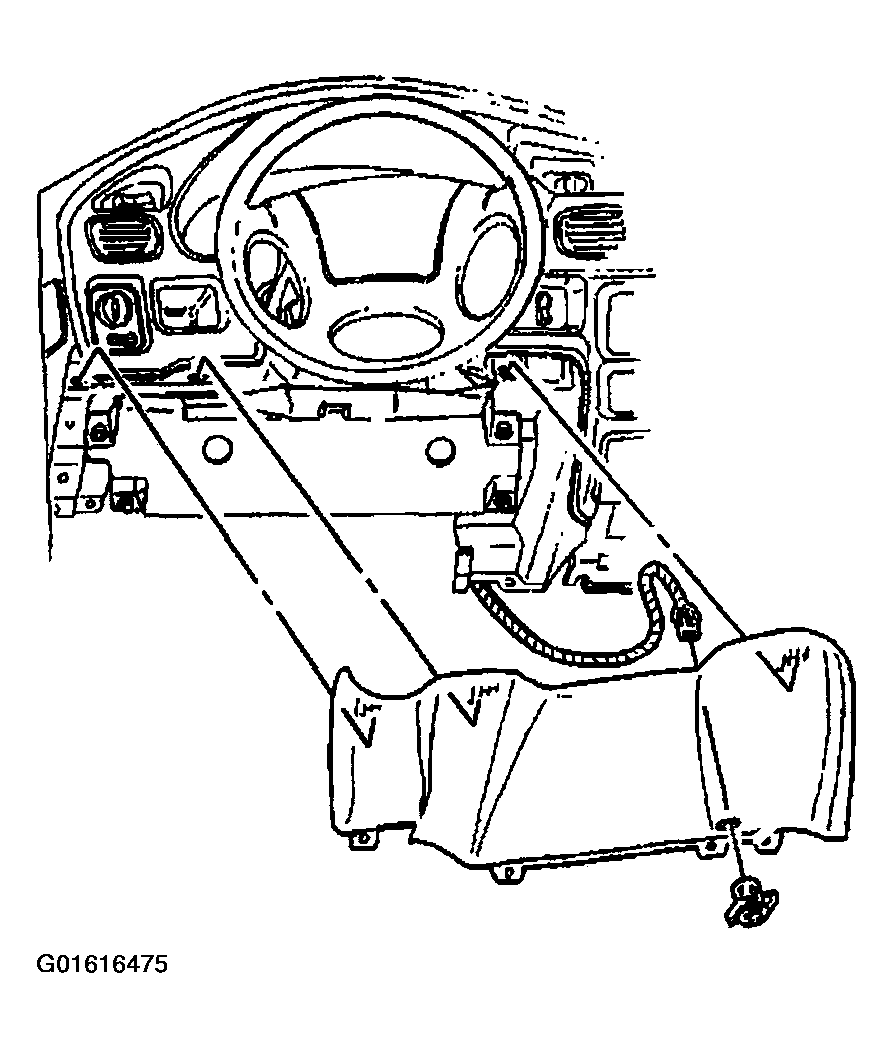

    Fig 1: Steering Column Filler
    G01616475Courtesy of GENERAL MOTORS CORP.
  4. Remove the knee bolster bracket bolts at the steering column support.
  5. Remove the knee bolster from the IP.

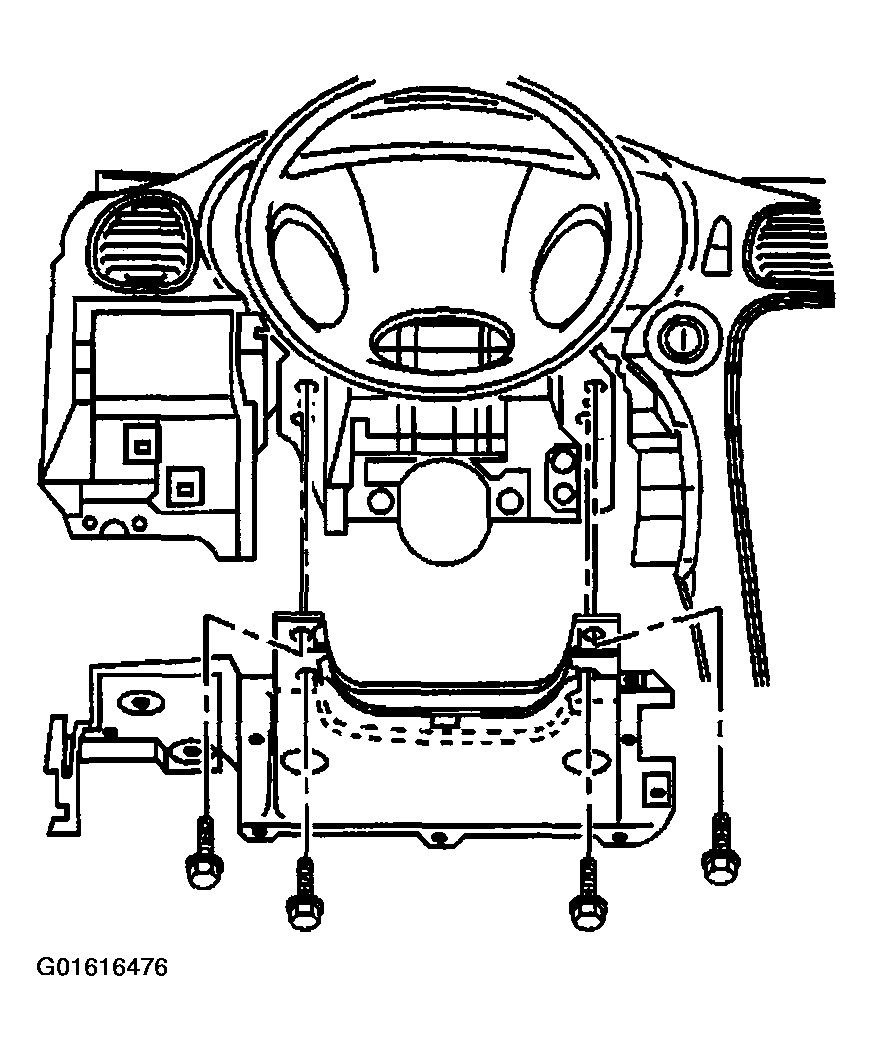

    Fig 2: Knee Bolster
    G01616476Courtesy of GENERAL MOTORS CORP.
