Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster (IPC) trim plate. Refer to TRIM PANEL REPLACEMENT - IP Cluster .
  2. Remove the rubber knob from the trip meter reset stem by pulling rearward.

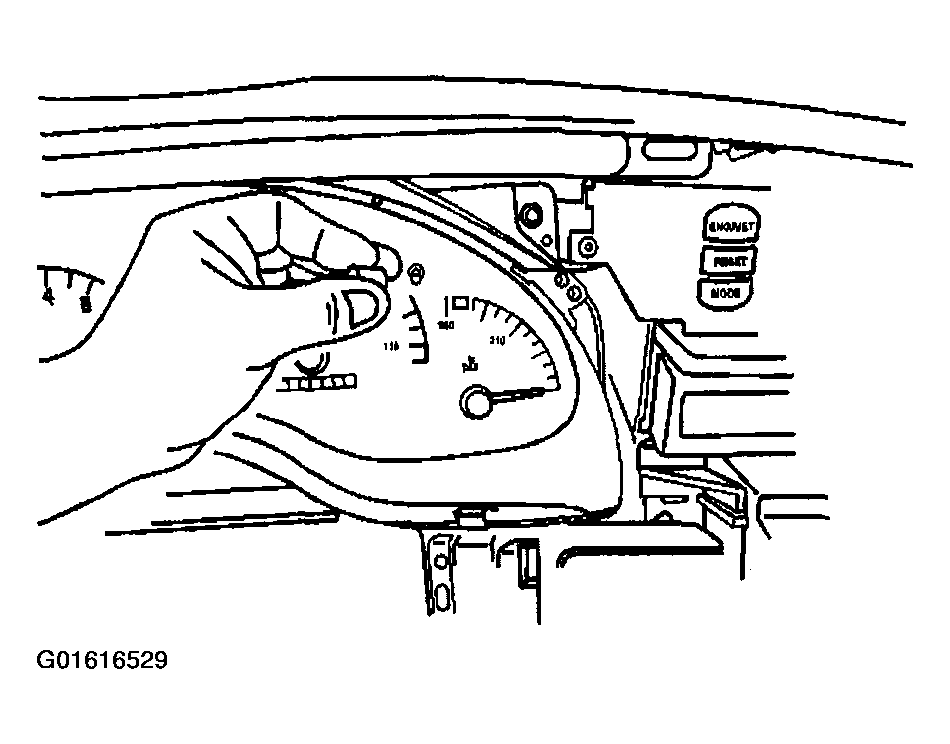

    Fig 1: Removing Trip Meter Reset Stem Rubber Knob
    G01616529Courtesy of GENERAL MOTORS CORP.
  3. Remove the IPC lens screws.

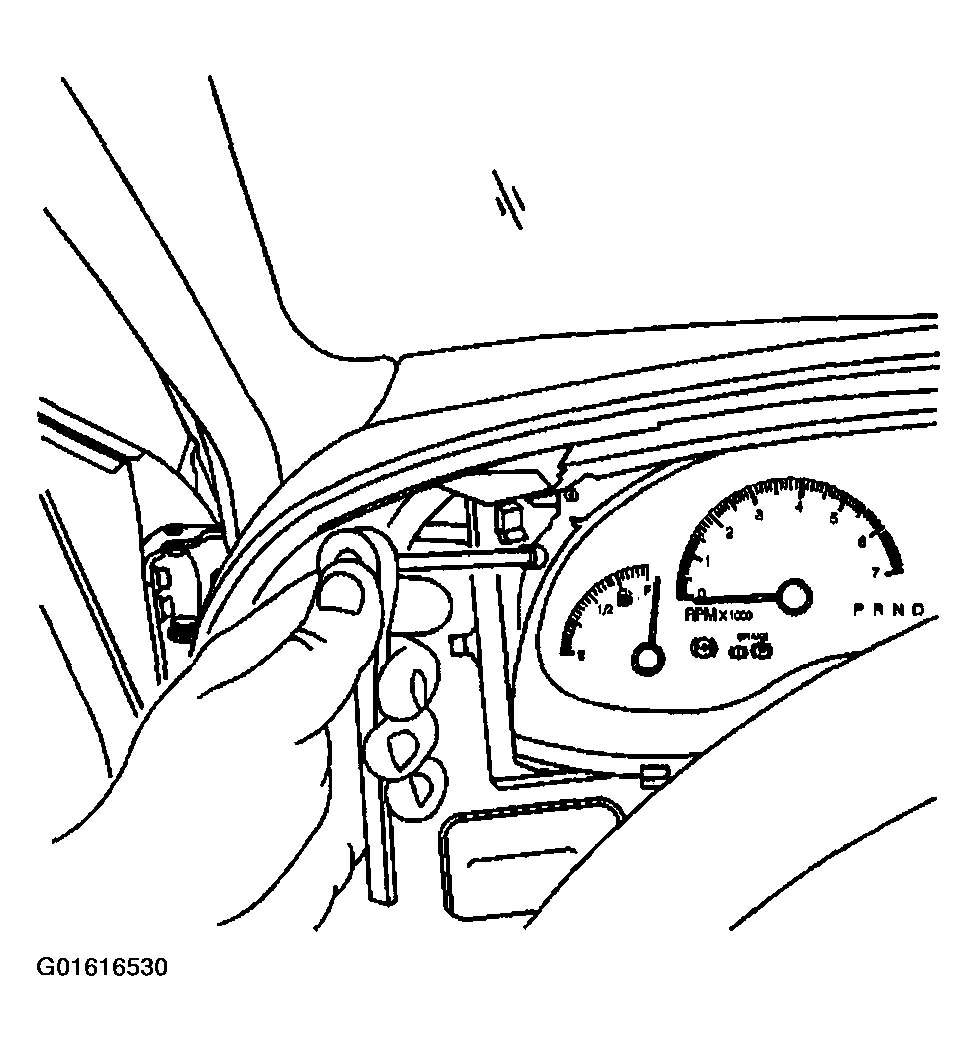

    Fig 2: Removing IPC Lens Screws
    G01616530Courtesy of GENERAL MOTORS CORP.
  4. Remove the IPC lens.

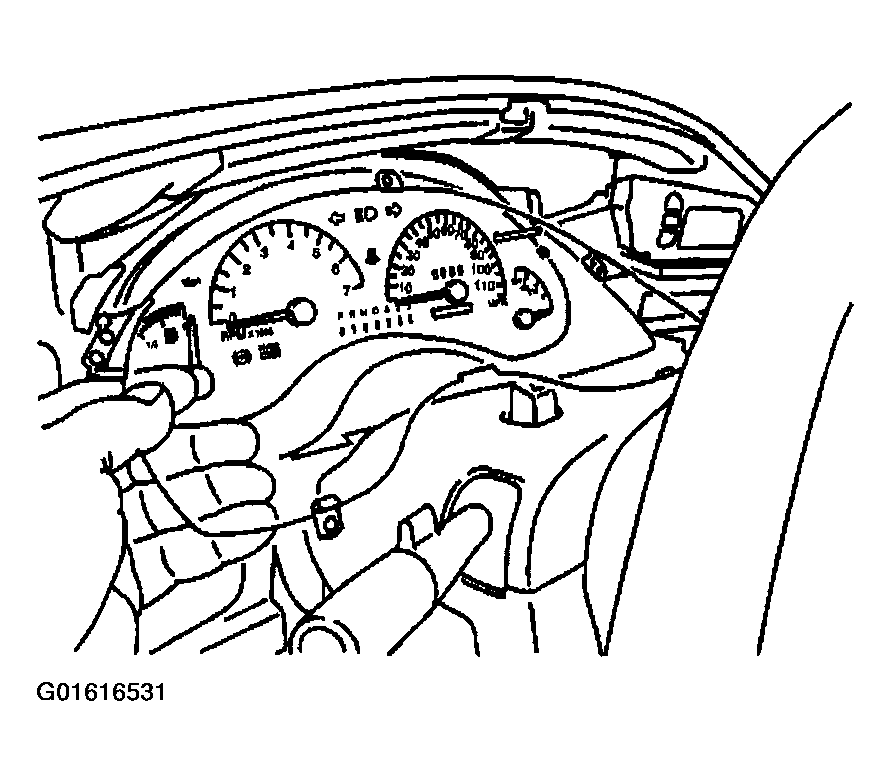

    Fig 3: IPC Lens
    G01616531Courtesy of GENERAL MOTORS CORP.
