Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ashtray. Refer to Ashtray Replacement .
  2. Release the electrical connector retainer tabs from the lighter element.

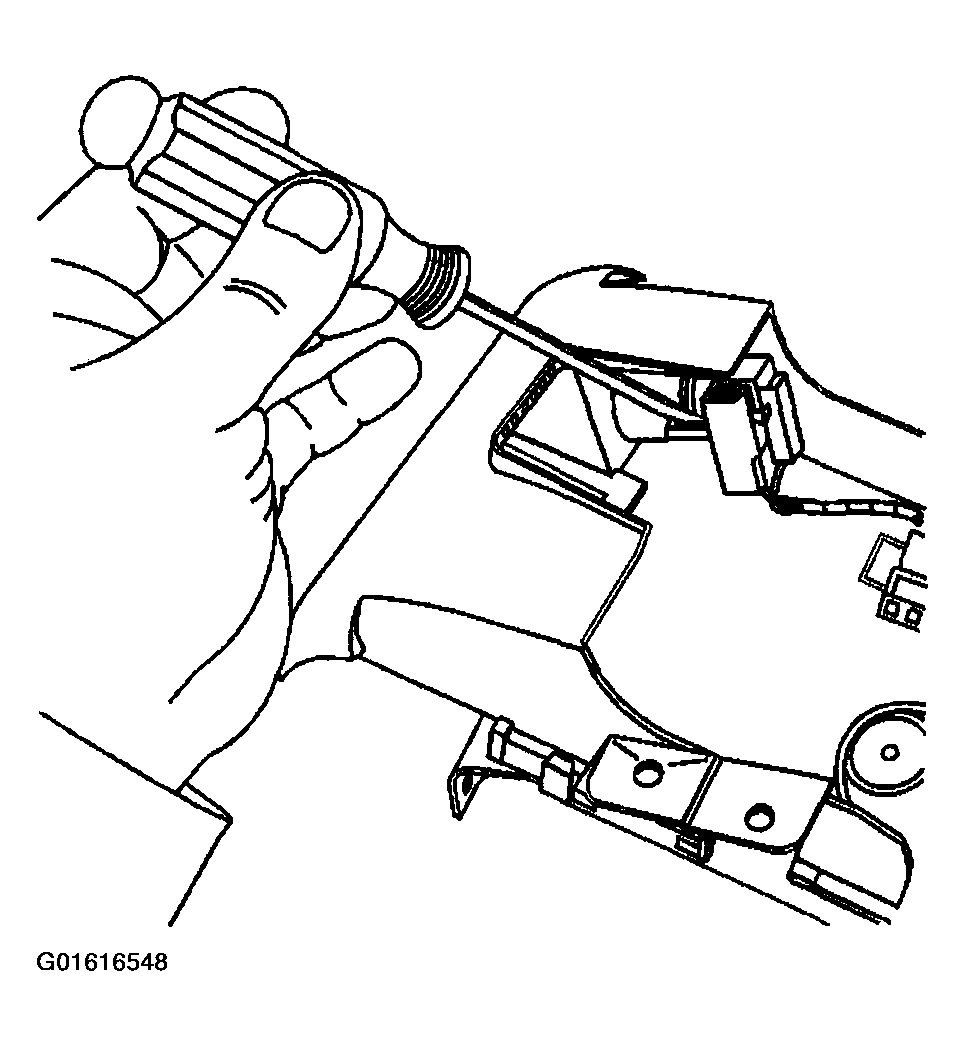

    Fig 1: Releasing Electrical Connector Retainer Tabs
    G01616548Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the lighter element.

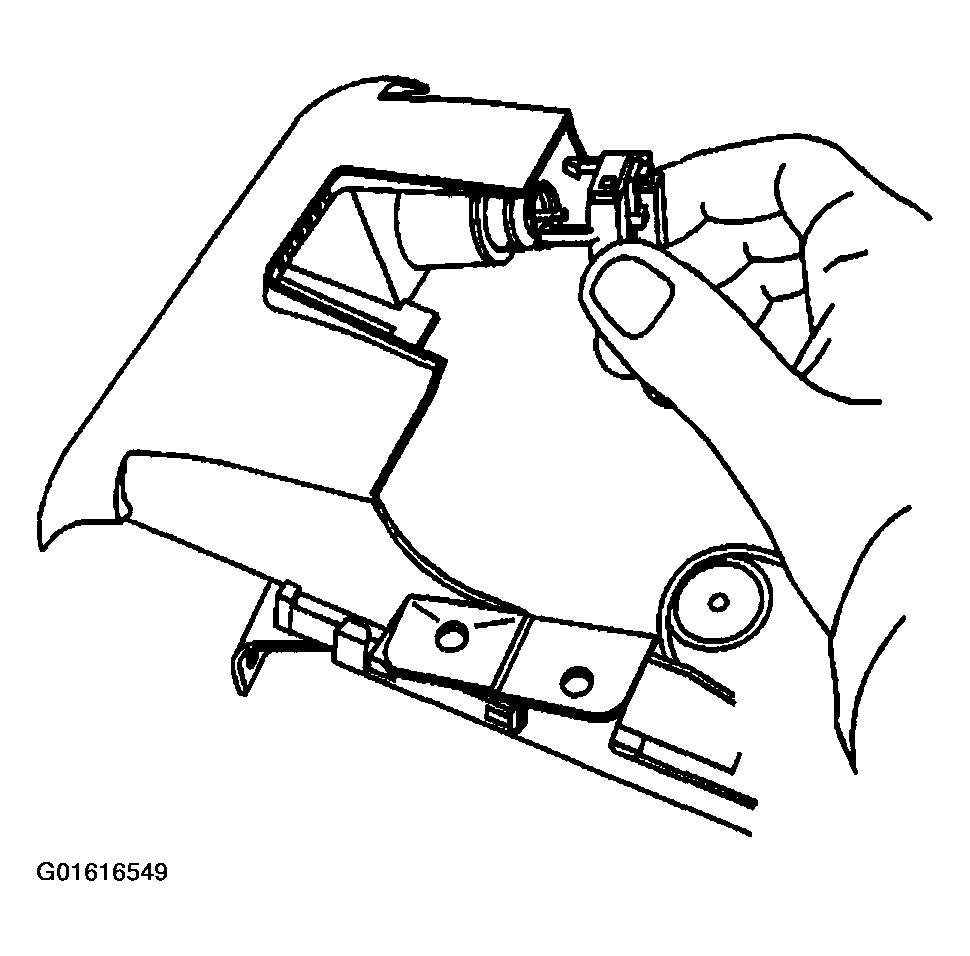

    Fig 2: Disconnecting Lighter Element Electrical Connector
    G01616549Courtesy of GENERAL MOTORS CORP.
  4. Remove the lighter element retainer by unscrewing the retainer.
  5. Remove the lighter element.

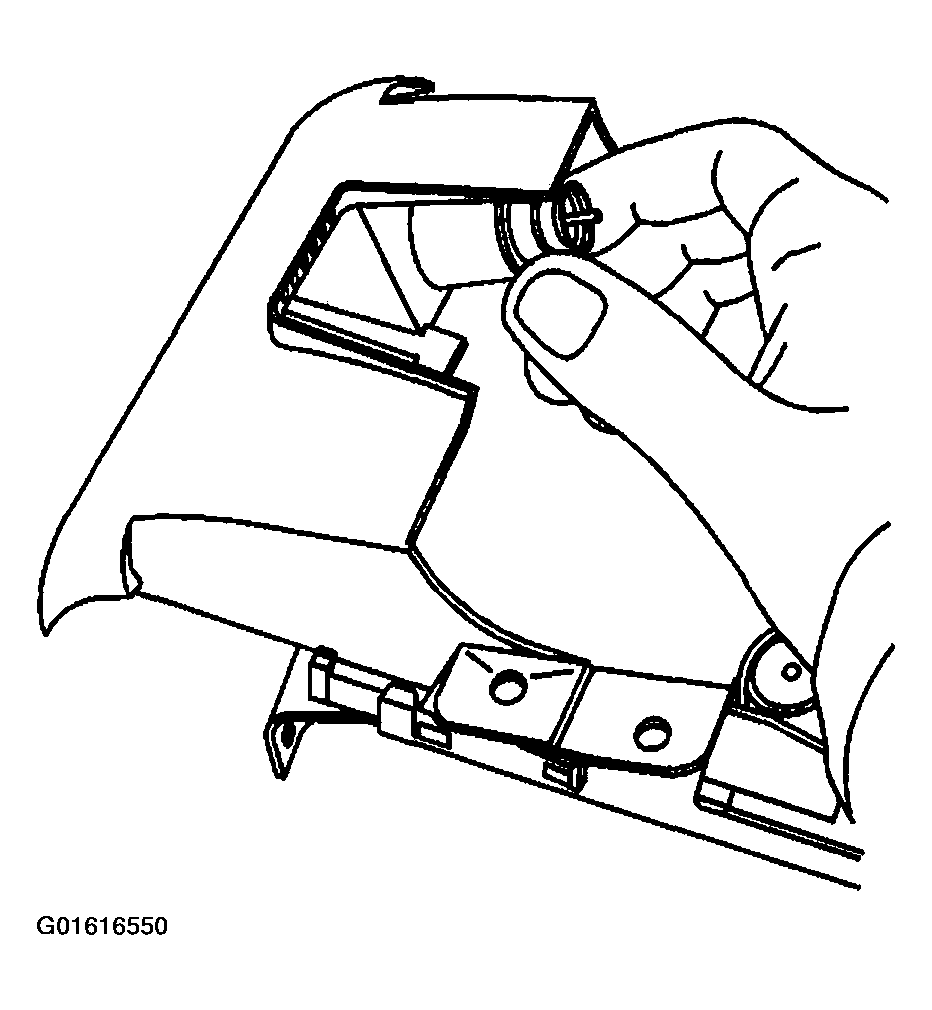

    Fig 3: Removing Lighter Element
    G01616550Courtesy of GENERAL MOTORS CORP.
