Wheel Stud (Semi-Floating Axle): Removal

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2000 GMC Yukon, 2000 GMC Pickup, 2000 GMC Cab & Chassis, 2000 GMC C3500 HD, and 2000 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove tire and wheel assembly.
Remove the brake drum. See 1998 DISC & DRUM -- TRUCKS -- EXCEPT TRACKER , 1999 DISC & DRUM -- TRUCKS -- EXCEPT TRACKER or 2000-01 DISC & DRUM -- TRUCKS -- EXCEPT TRACKER .
Use the Wheel Stud Remover (J 6627-A) in order to remove the stud from the axle flange. See Fig 1 . See SPECIAL TOOLS .

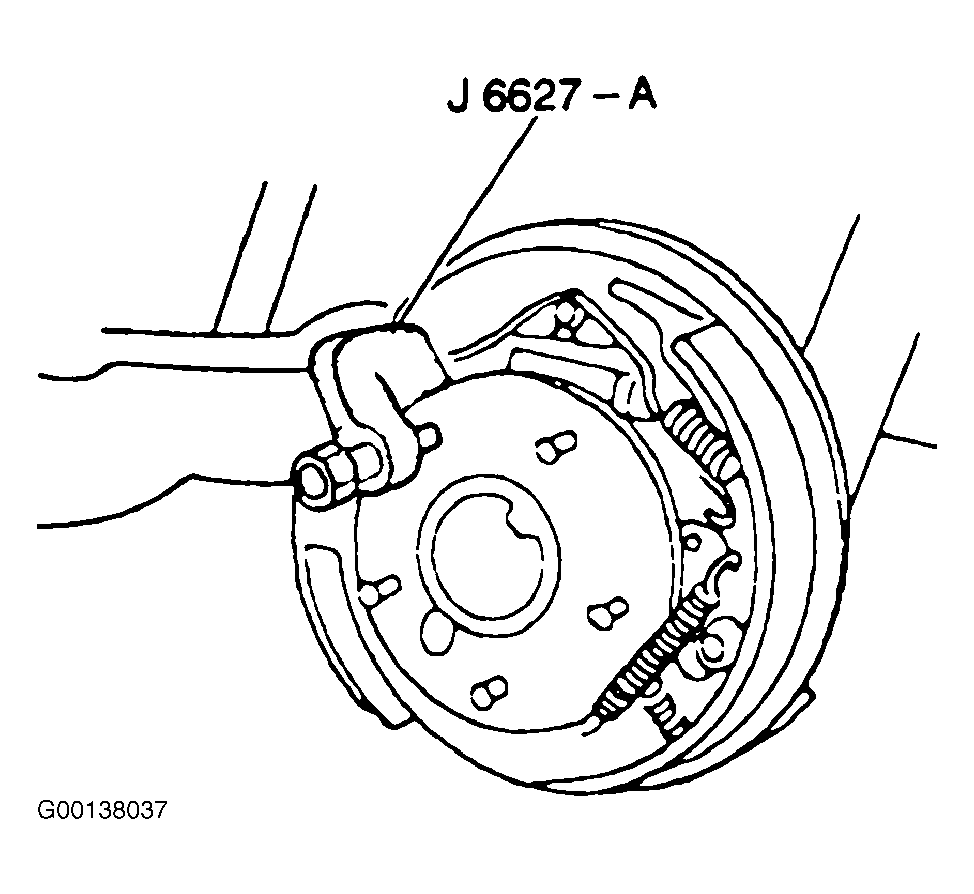

Fig 1: Removing Wheel Stud (Semi-Floating Axle)

Courtesy of GENERAL MOTORS CORP.
