Shock Absorber (S4WD): Installation

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2000 GMC Yukon, 2000 GMC Pickup, 2000 GMC Cab & Chassis, 2000 GMC C3500 HD, and 2000 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

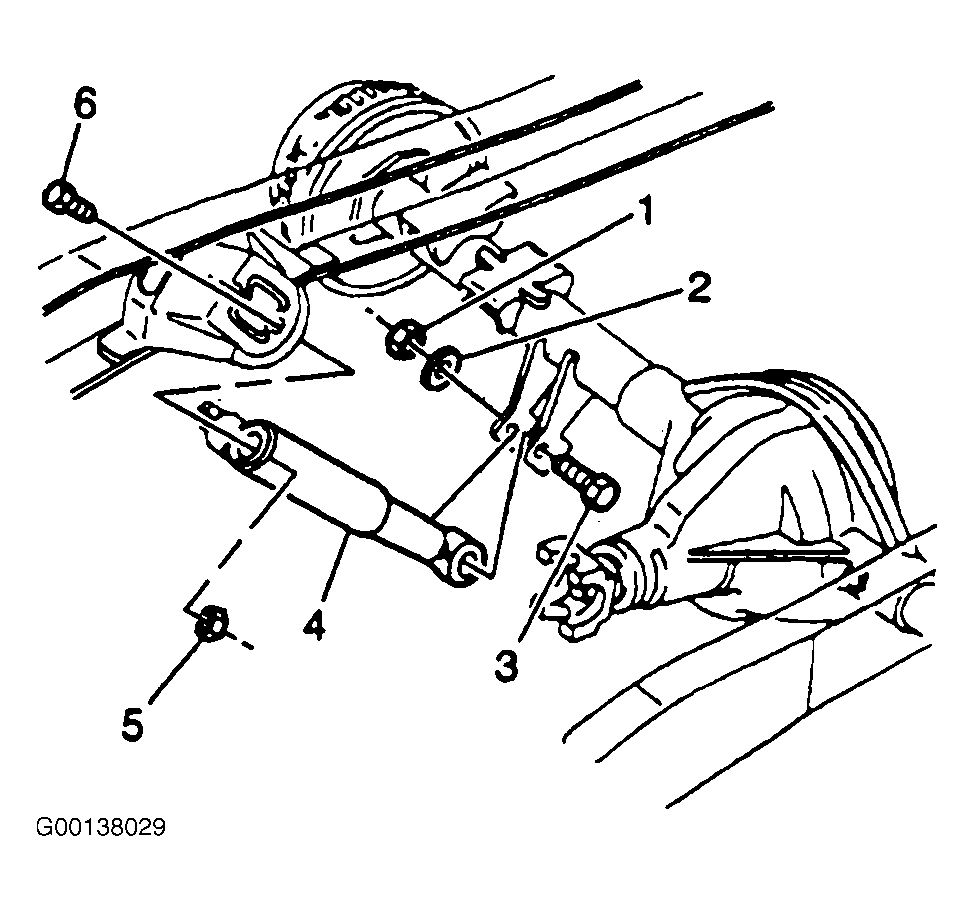

  1. Install the shock absorber (4) to the vehicle. See Figure .
  2. Install the lower shock bolt (3).
  3. Install the washer (2).
  4. Install the lower nut (1) and tighten to specification. See Figure . See TORQUE SPECIFICATIONS  .
  5. Install the upper shock bolt (6). See Figure .
  6. Install the upper nut (5) and tighten to specification. See Figure . See TORQUE SPECIFICATIONS  .
  7. Lower the vehicle.
