Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Disconnect the engine block heater cord from the engine block heater.
  3. Remove the engine block heater cord straps.
  4. Disconnect the upper engine block heater cord from the diagonal brace strap.
  5. Remove the engine block heater cord.

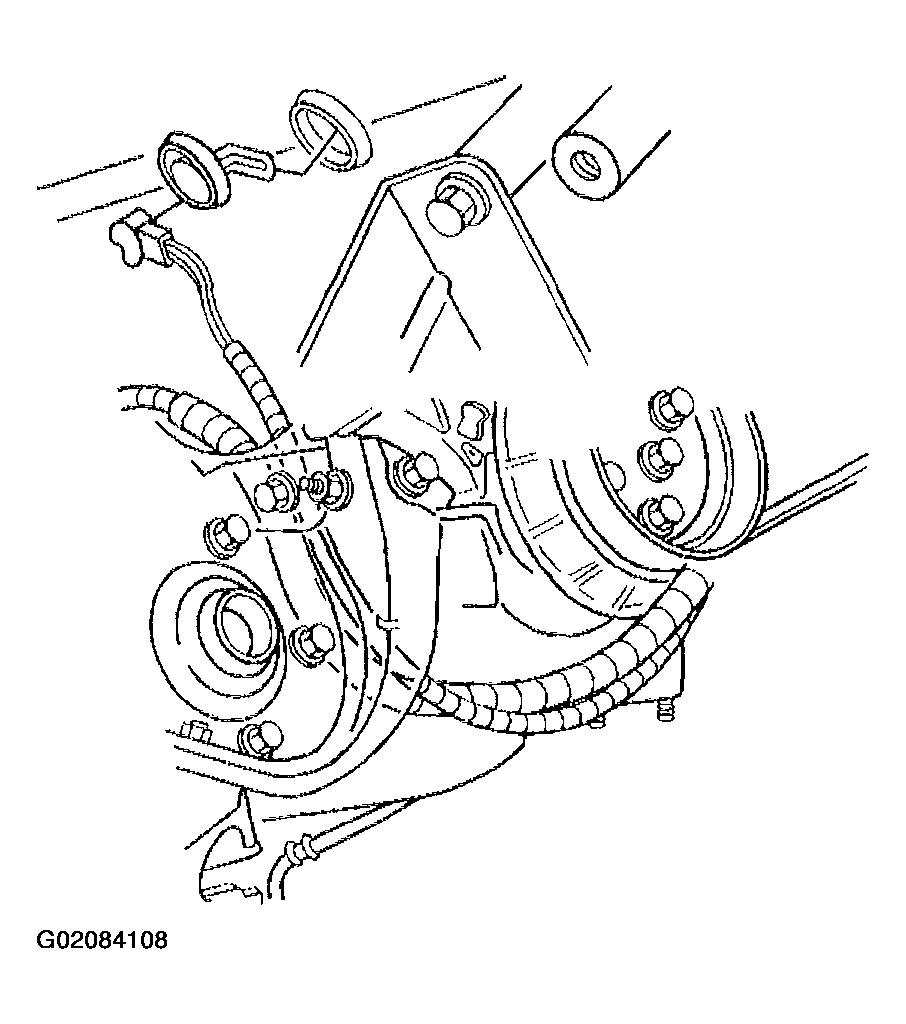

    Fig 1: Disconnecting Upper Engine Block Heater Cord (3.1 L)
    G02084108Courtesy of GENERAL MOTORS CORP.
