WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

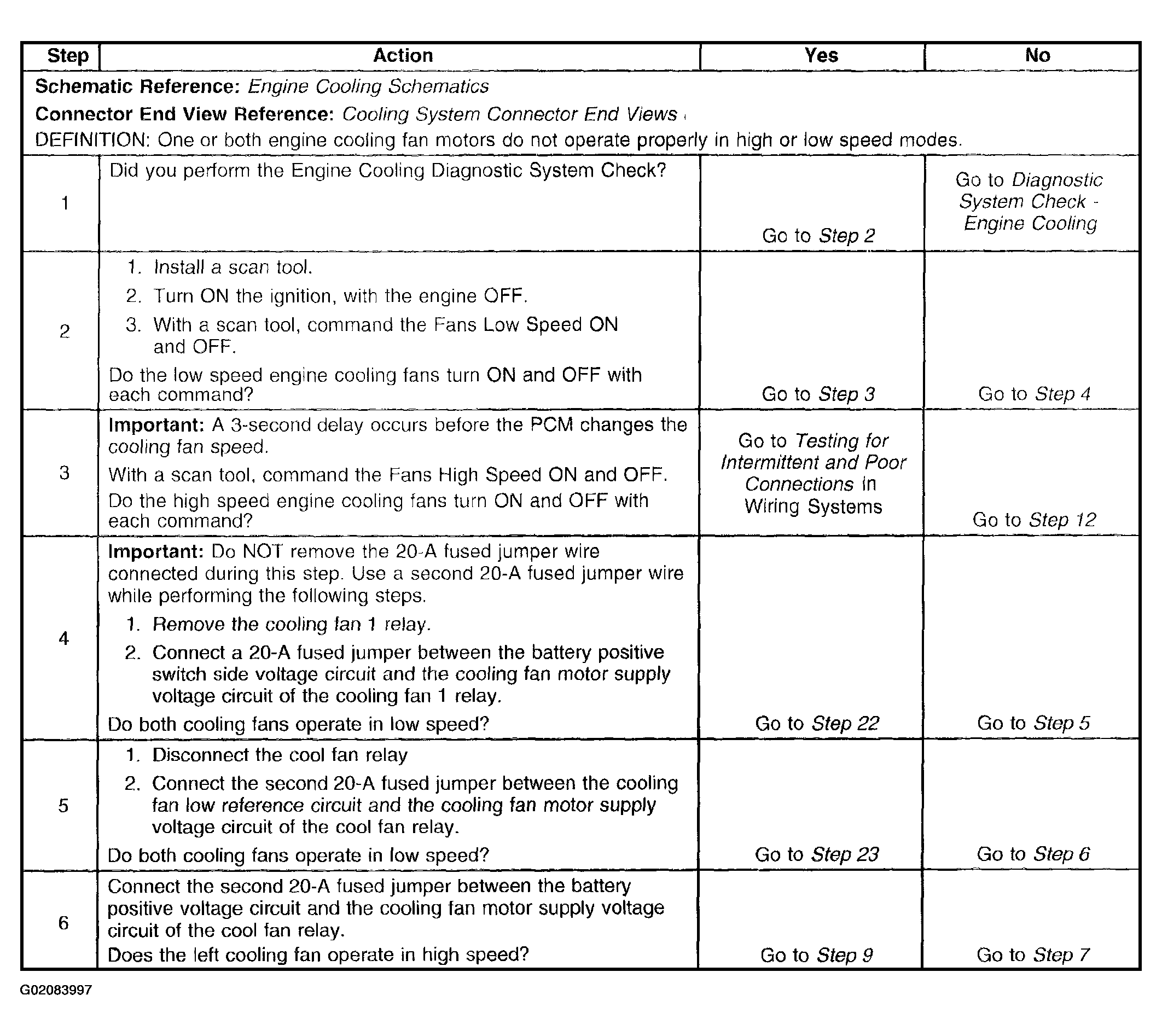

Fig 1: Diagnostic System Check - Cooling Fan Inoperative (3.8L) (1 Of 4)
Courtesy of GENERAL MOTORS CORP.

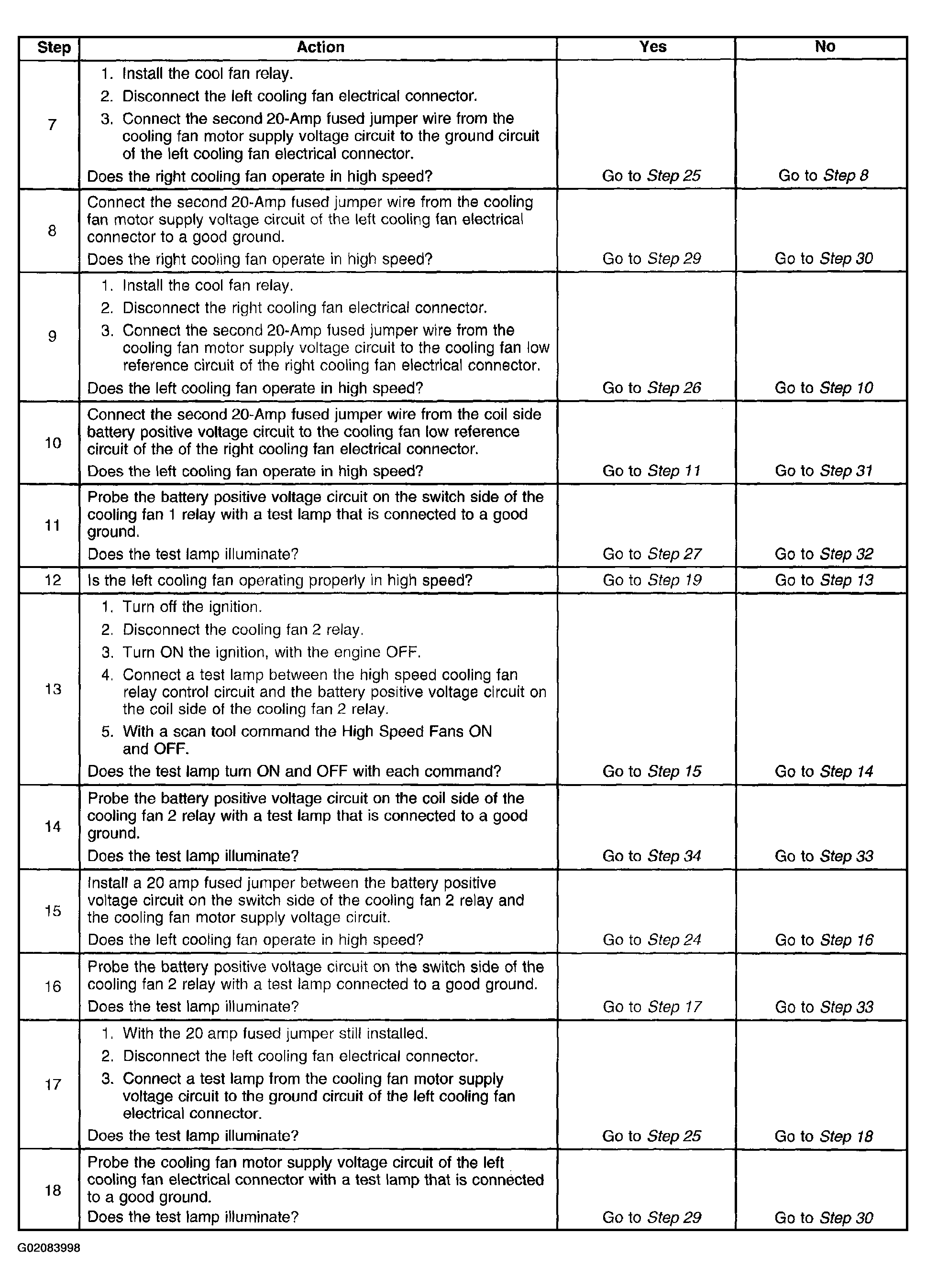

Fig 2: Diagnostic System Check - Cooling Fan Inoperative (3.8L) (2 Of 4)
Courtesy of GENERAL MOTORS CORP.

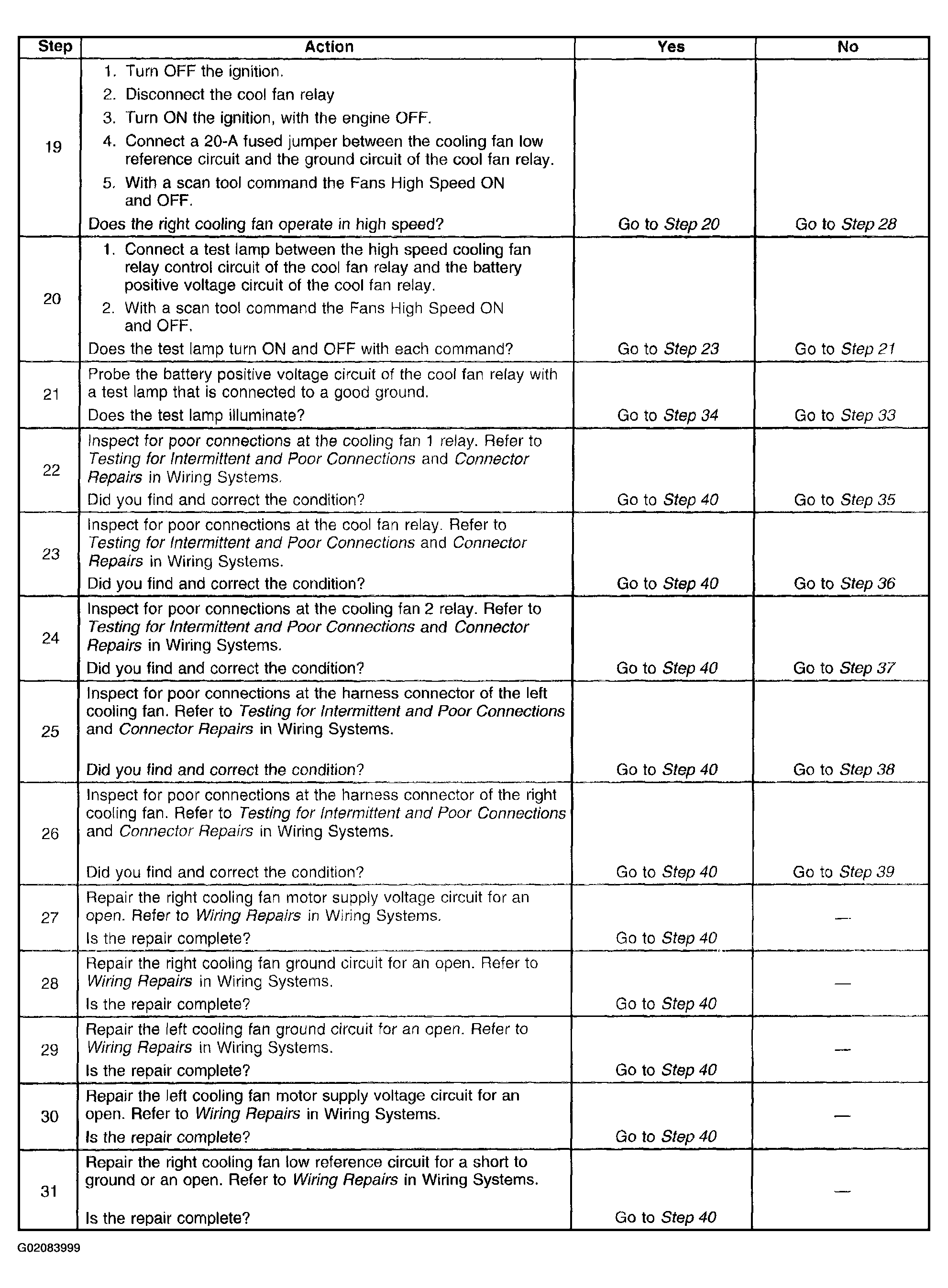

Fig 3: Diagnostic System Check - Cooling Fan Inoperative (3.8L) (3 Of 4)
Courtesy of GENERAL MOTORS CORP.

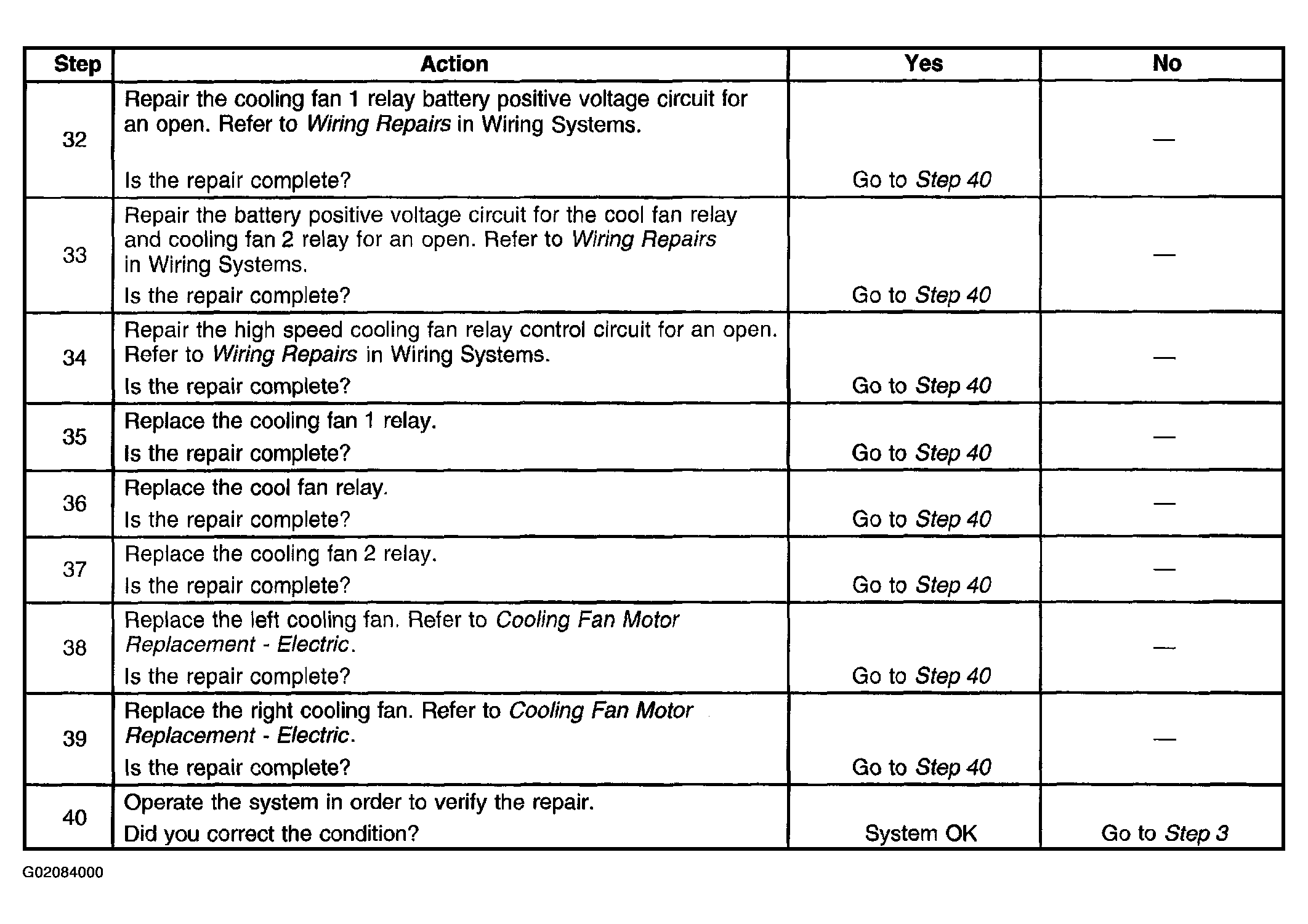

Fig 4: Diagnostic System Check - Cooling Fan Inoperative (3.8L) (4 Of 4)
