Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT  .
  2. Remove the oil pump cover screws.
  3. Remove the oil pump cover.
  4. Remove the oil pump gear set.
  5. Inspect the oil pump gear set and housing. Refer to OIL PUMP CLEANING AND INSPECTION  .

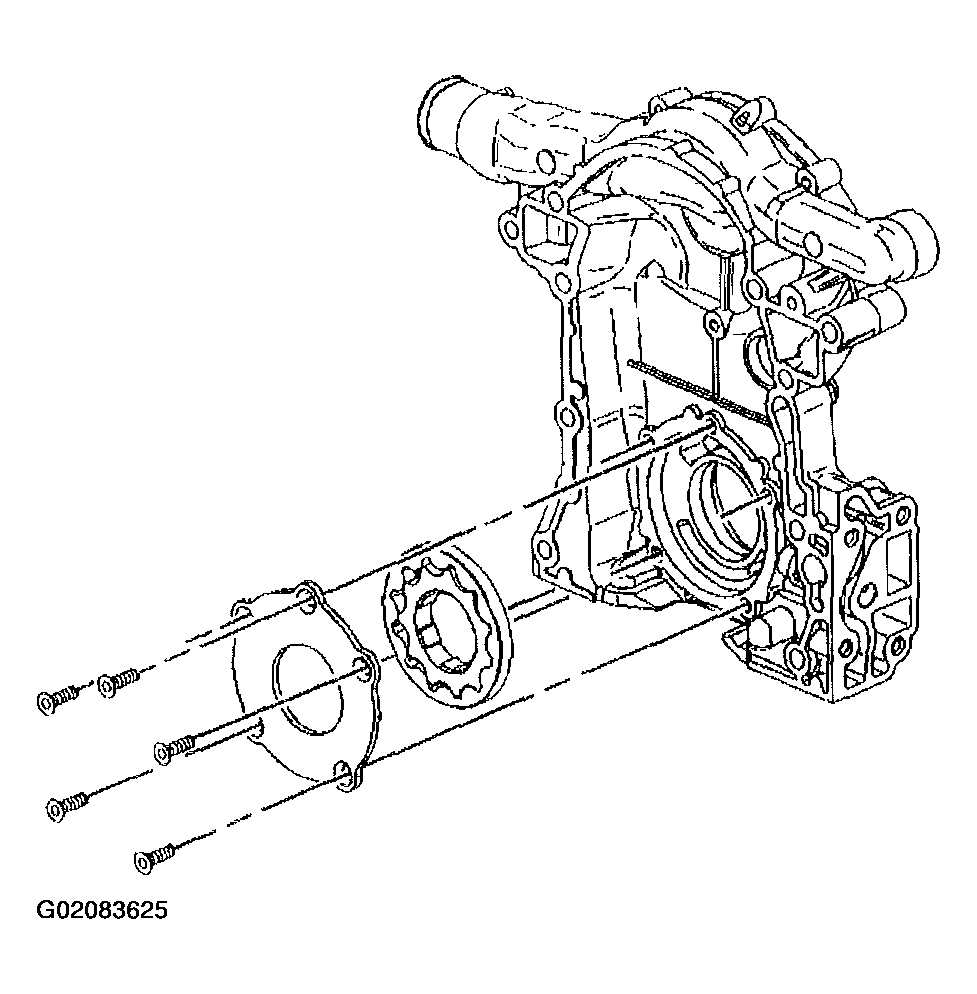

    Fig 1: Removing Oil Pump Cover And Gear Set
    G02083625Courtesy of GENERAL MOTORS CORP.
