Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  2. Remove the ignition coil. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION - V6 & V8 in Engine Performance - Removal and Installation.
  3. Remove the supercharger drive belt. Refer to DRIVE BELT REPLACEMENT (L36)  or DRIVE BELT REPLACEMENT (L67)  .

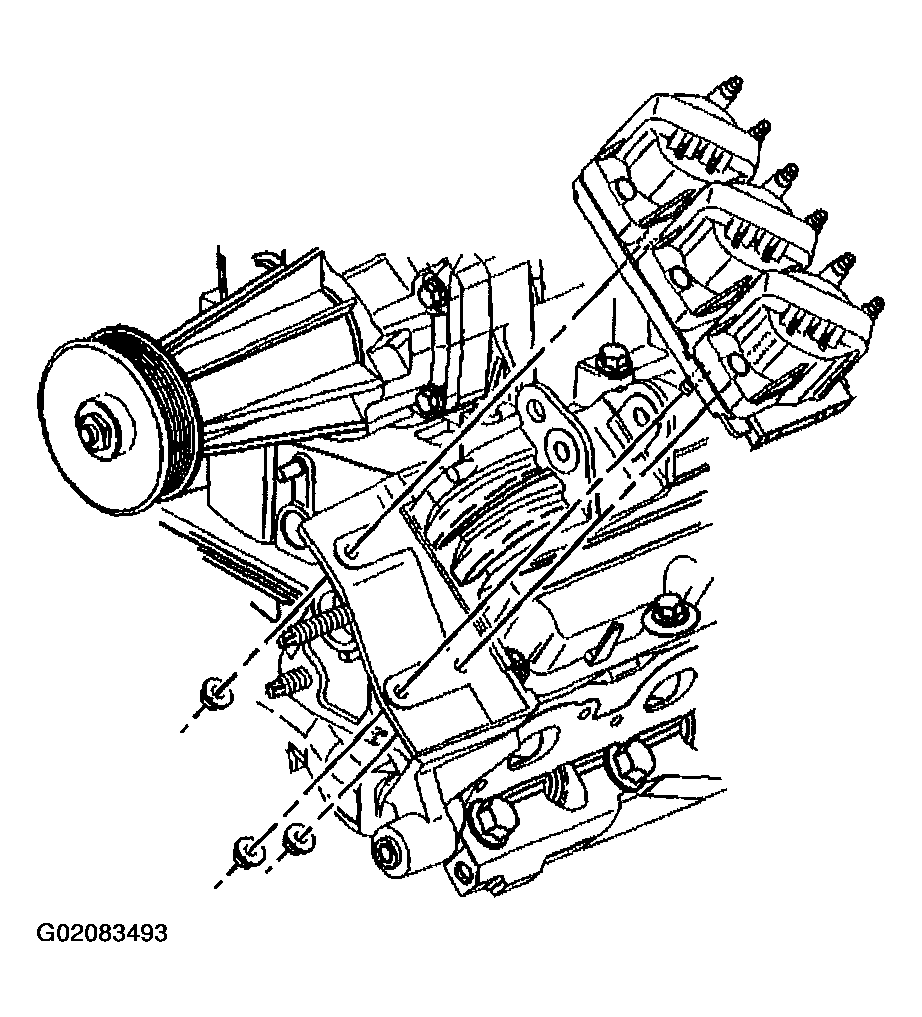

    Fig 1: Removing Ignition Coil (L67)
    G02083493Courtesy of GENERAL MOTORS CORP.
  4. Remove the upper supercharger drive belt idler pulley. Refer to DRIVE BELT IDLER PULLEY REPLACEMENT - UPPER  .

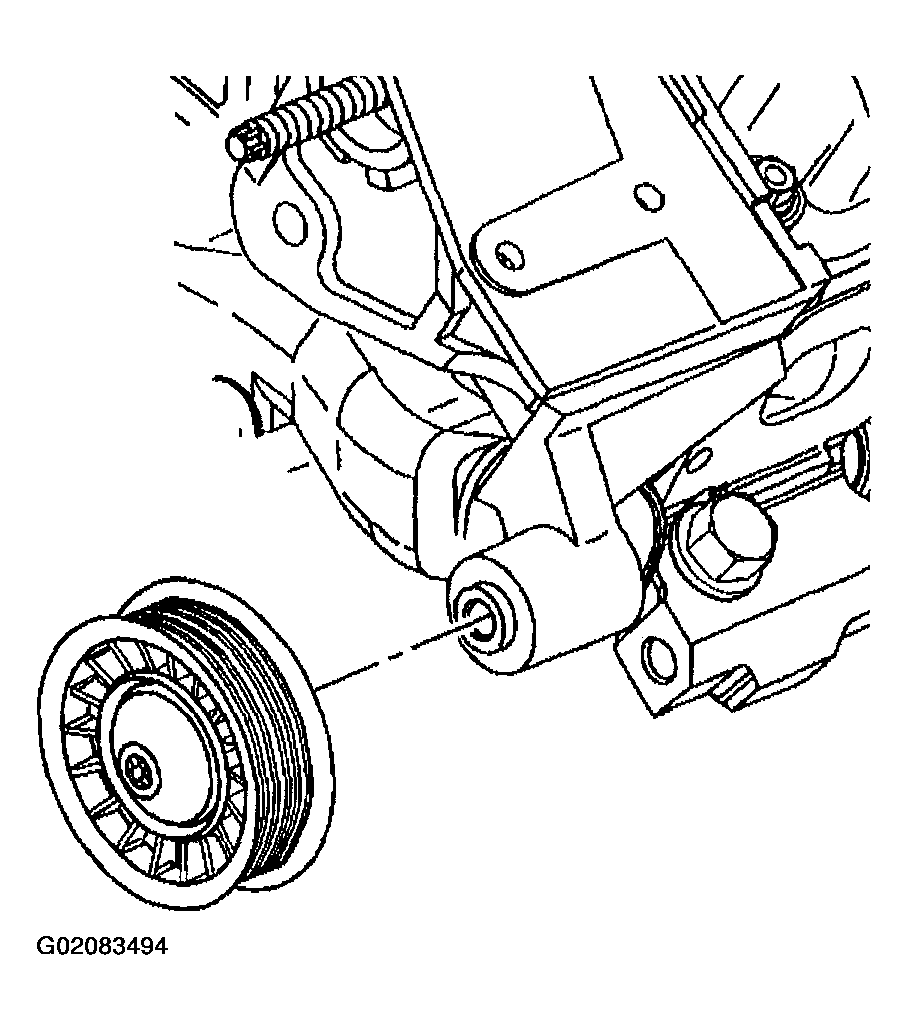

    Fig 2: Removing Upper Supercharger Drive Belt Idler Pulley
    G02083494Courtesy of GENERAL MOTORS CORP.
  5. Remove the supercharger drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT - SUPERCHARGER  .

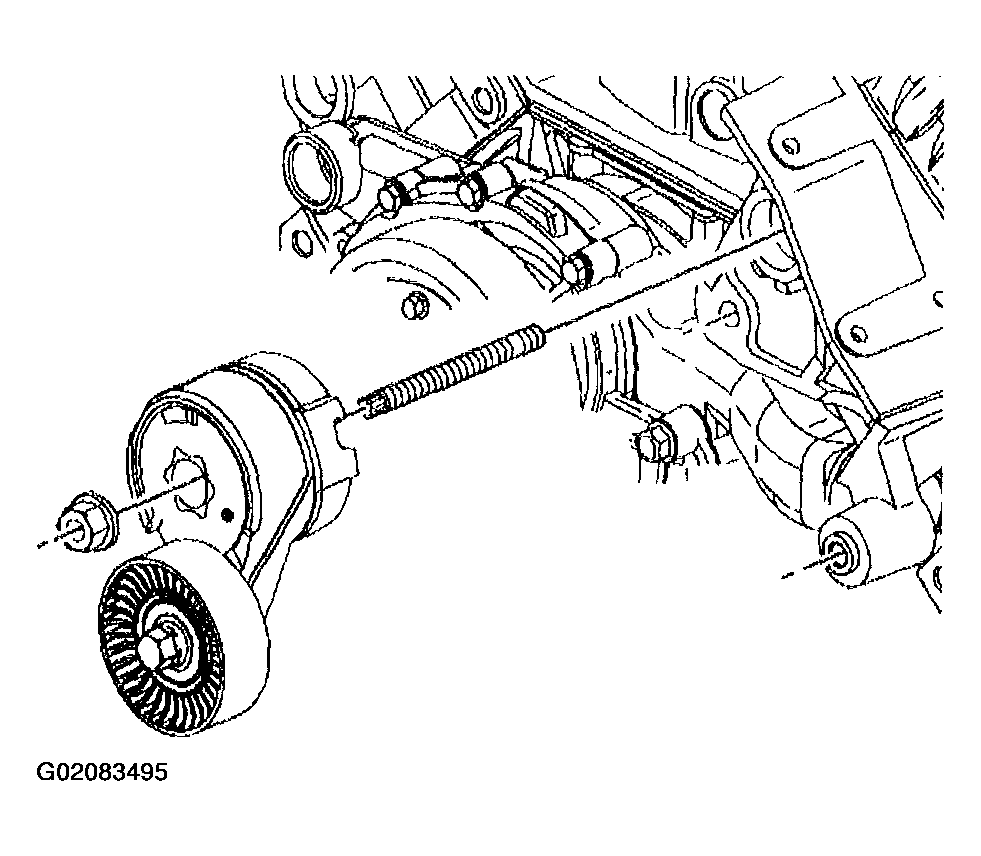

    Fig 3: Removing Supercharger Drive Belt Tensioner
    G02083495Courtesy of GENERAL MOTORS CORP.
  6. Remove the right engine mount strut at the right engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT  and ENGINE MOUNT STRUT REPLACEMENT - RIGHT  .

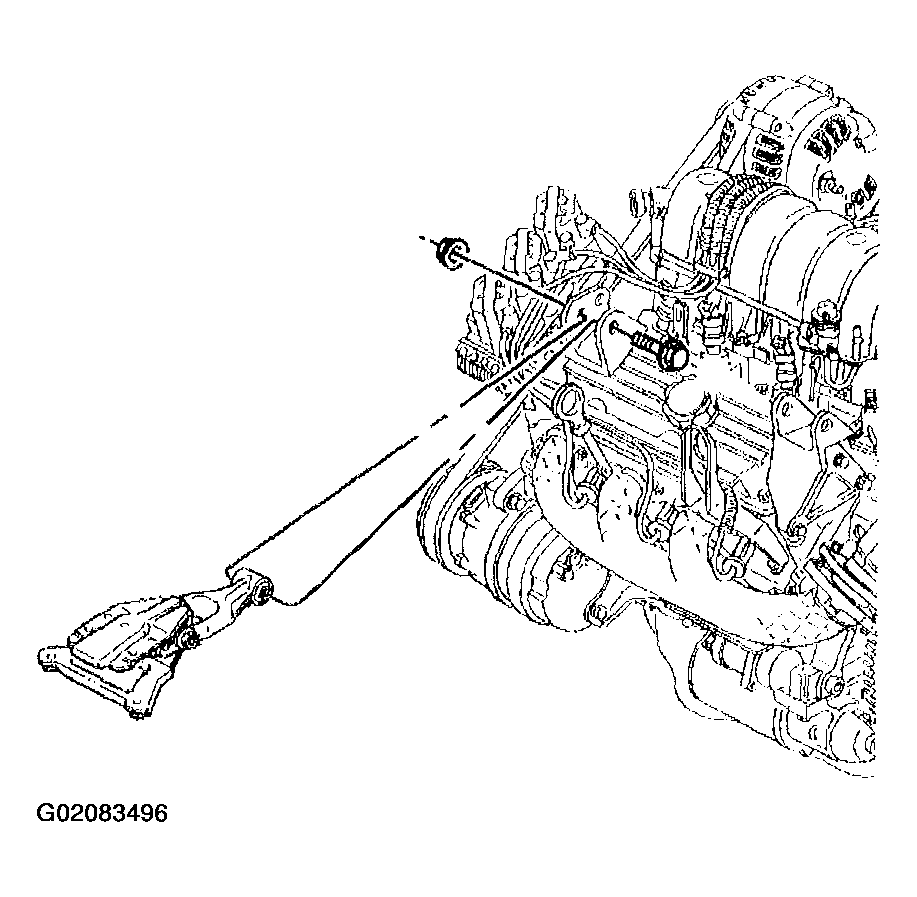

    Fig 4: Removing Right Engine Mount Strut
    G02083496Courtesy of GENERAL MOTORS CORP.
  7. Remove the right engine mount strut bracket nuts and stud.
  8. Remove the right engine mount strut bracket from the cylinder head.

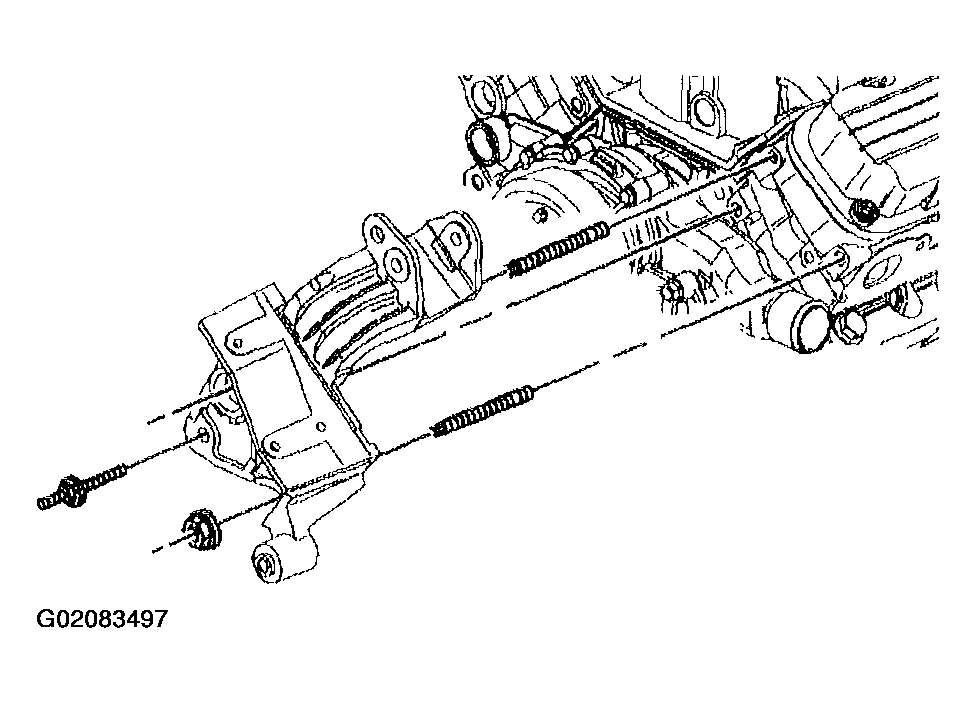

    Fig 5: Removing Right Engine Mount Strut Bracket
    G02083497Courtesy of GENERAL MOTORS CORP.
