Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift or rotate the drive belt tensioner using a 15 mm box end wrench on the pulley nut.
  2. Install the drive belt.

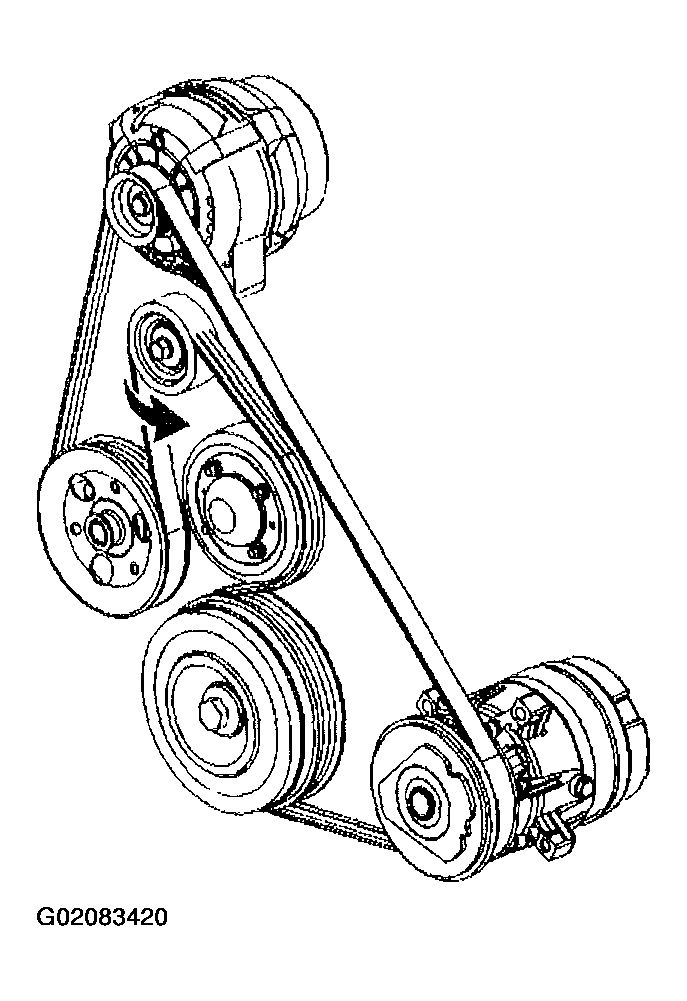

    Fig 1: View Of Drive Belt Routing (L36)
    G02083420Courtesy of GENERAL MOTORS CORP.
