Water Outlet and Thermostat Installation (L36)

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the thermostat.
  2. Install the water outlet.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the water outlet bolt and stud.

    Tighten

    Tighten the water outlet bolt and stud to 27 N.m (20 lb ft).

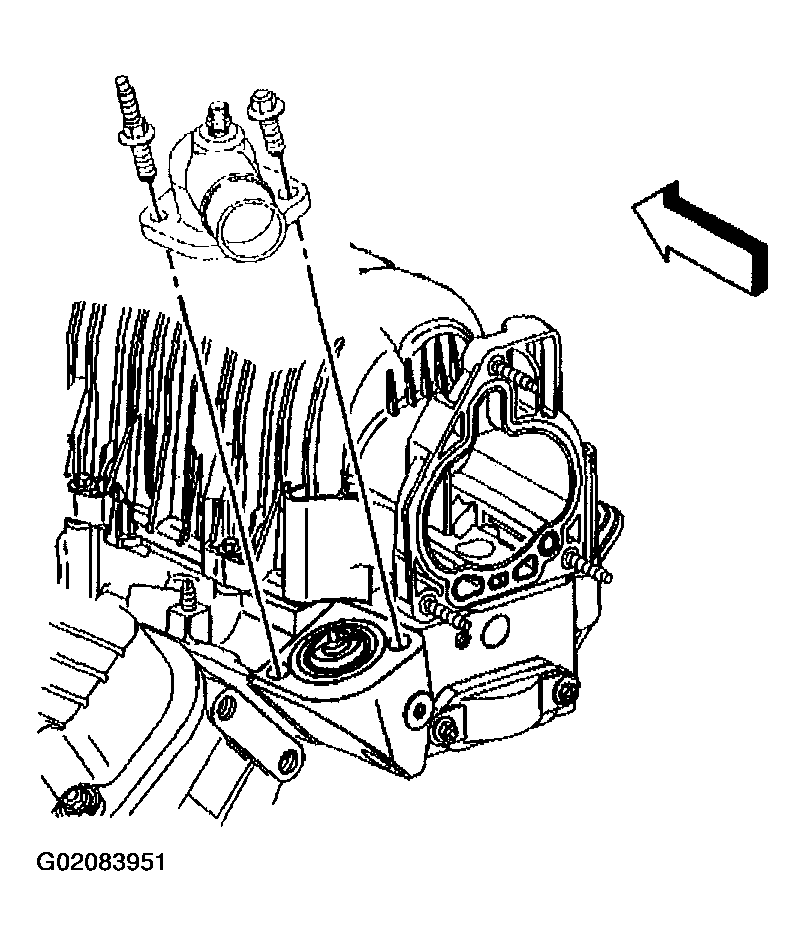

    Fig 1: Installing Water Outlet (L36)
    G02083951Courtesy of GENERAL MOTORS CORP.
