Valve Rocker Arm and Push Rod Removal

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm bolts.
  2. Remove the valve rocker arm.
  3. Remove the push rods.
  4. Remove the push rod guide plate.

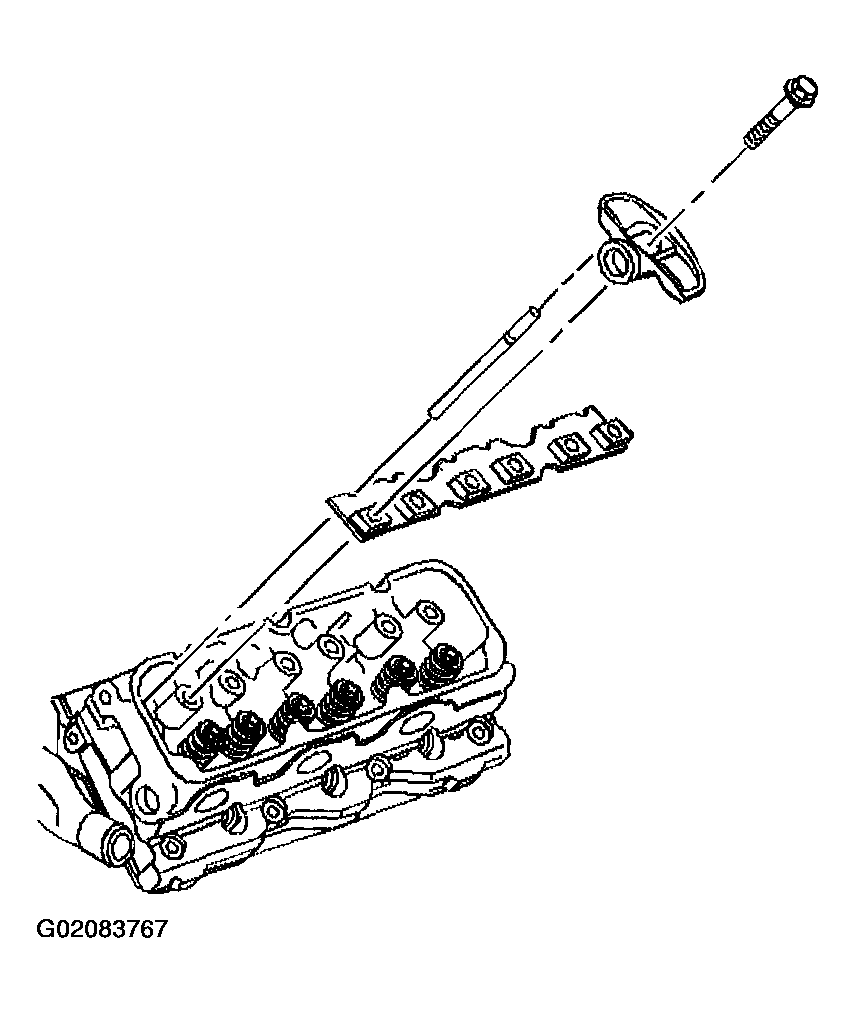

    Fig 1: Removing Push Rod Guide Plate
    G02083767Courtesy of GENERAL MOTORS CORP.
