Valve Rocker Arm Cover Removal - Left

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover bolts.
  2. Remove the valve rocker arm cover.

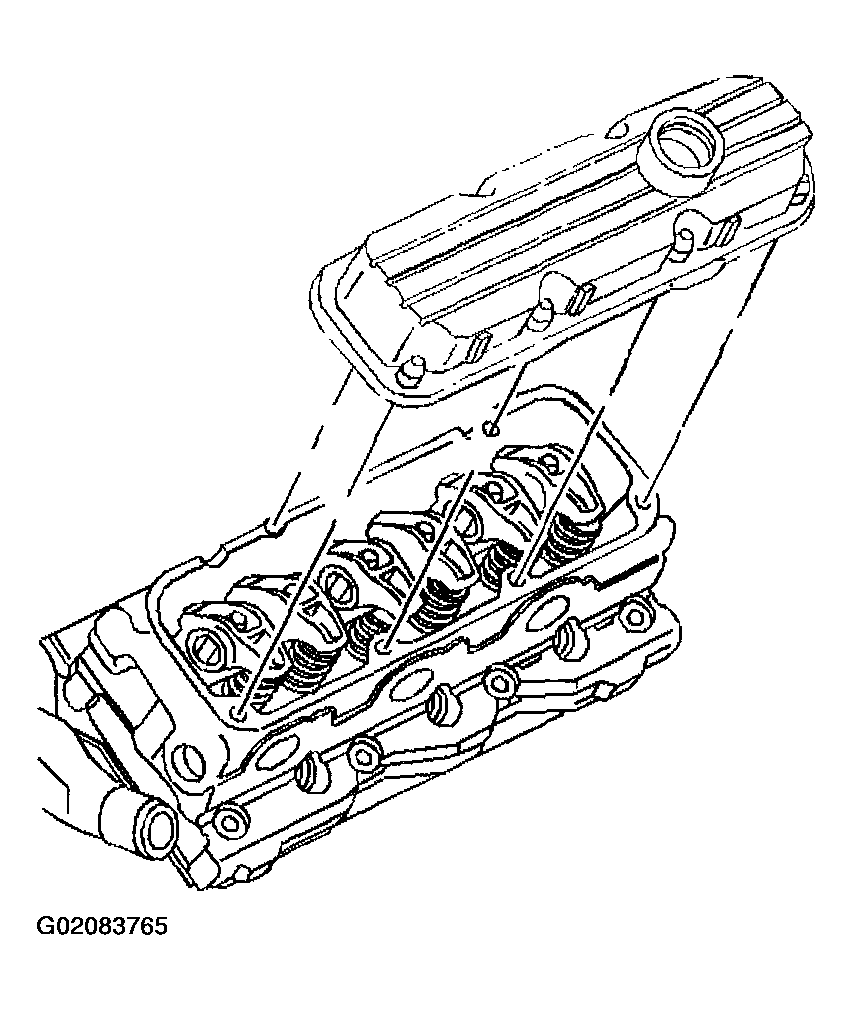

    Fig 1: Removing Valve Rocker Arm Cover (Left)
    G02083765Courtesy of GENERAL MOTORS CORP.
