Valve Lifter Removal

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve lifter guide retainer bolts.
  2. Remove the valve lifter guide retainers.
  3. Remove the valve lifters.

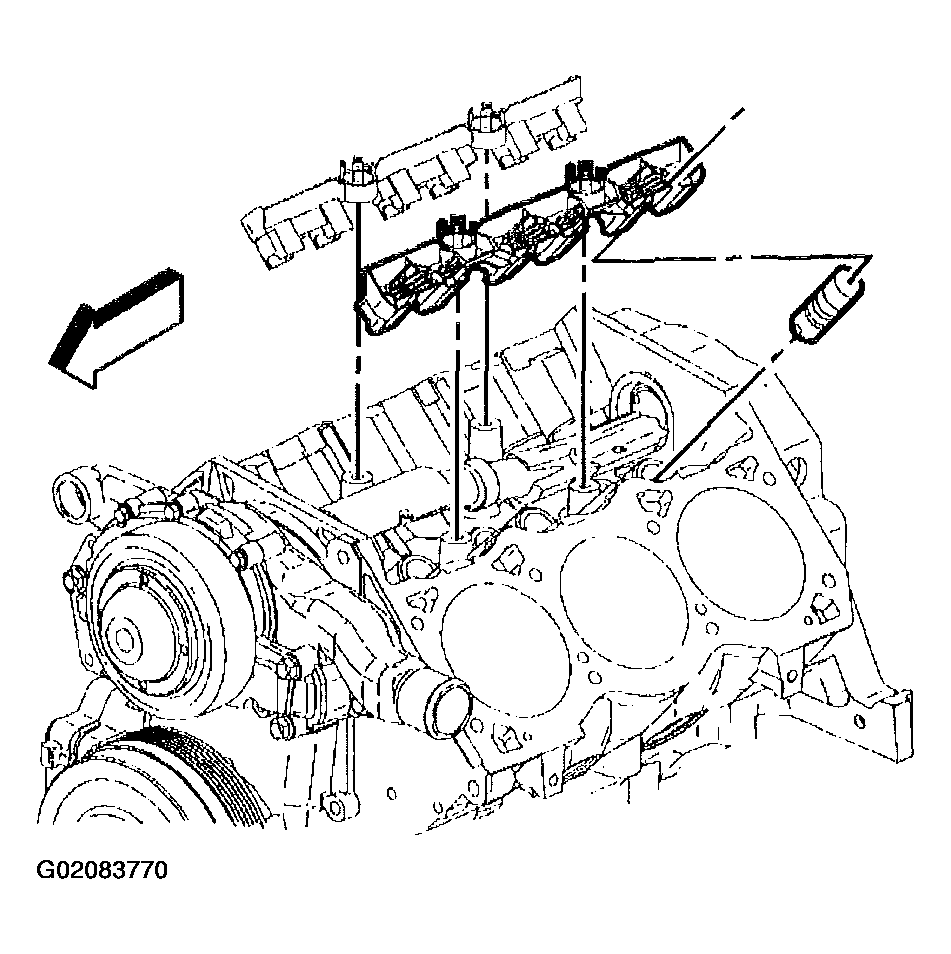

    Fig 1: Removing Valve Lifters
    G02083770Courtesy of GENERAL MOTORS CORP.
