Tools Required

J 36660-A  Torque Angle Meter

1. Install the crankshaft balancer key into the crankshaft keyway.

   The crankshaft balancer key should be parallel to the crankshaft or with a slight incline.

2. Install the timing chain on the sprockets. Align the timing marks.

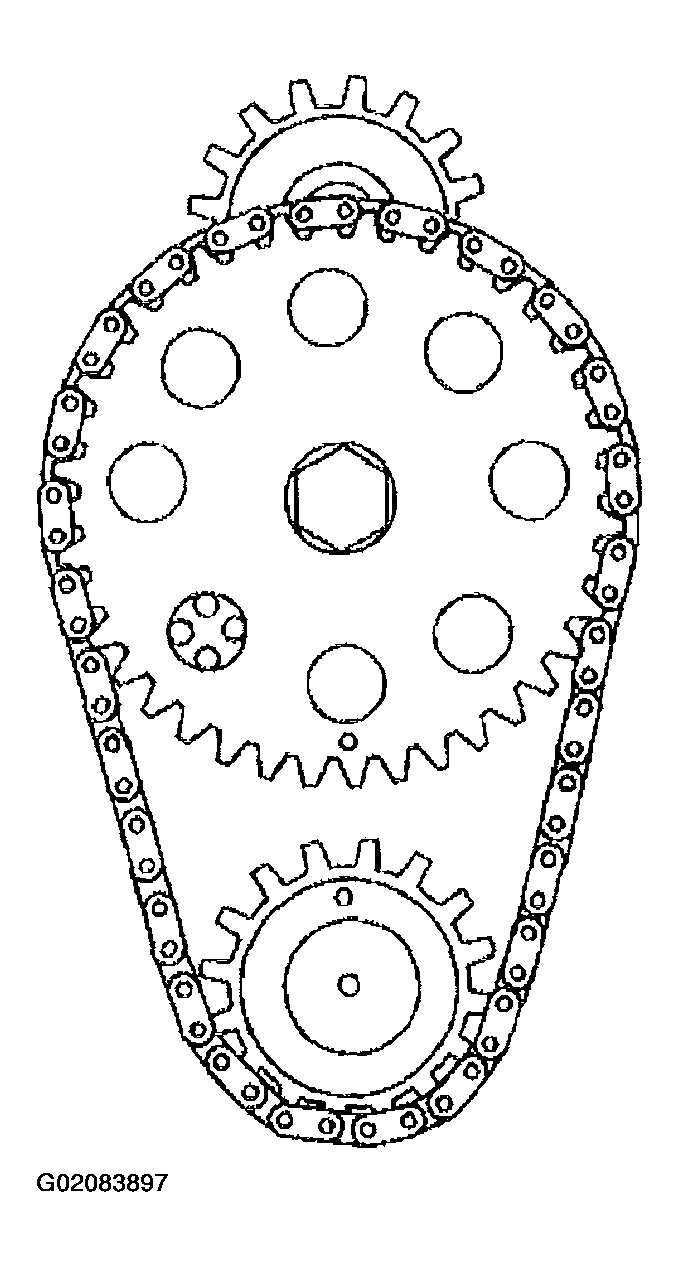

   Fig 1: Aligning Timing Mark (L36)

   Courtesy of GENERAL MOTORS CORP.
3. Install the timing chain, the crankshaft sprocket, and the camshaft sprocket.
   NOTE: Refer to SPECIAL FASTENER NOTICE in Cautions and Notices.
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
4. Install the camshaft sprocket bolt.

   Tighten

   Tighten the camshaft sprocket bolt to 100 N.m (74 lb ft). Use J 36660-A  to tighten the camshaft sprocket bolt an additional 90 degrees.

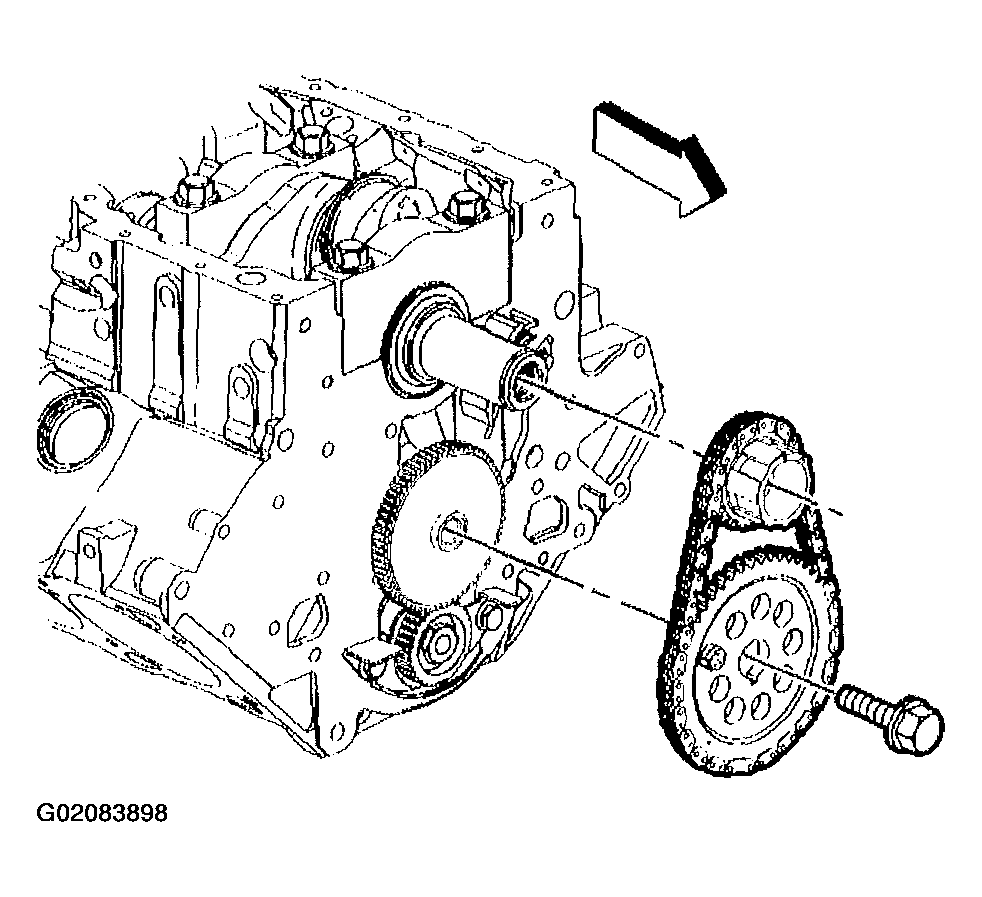

   Fig 2: Installing Timing Chain And Sprocket

   Courtesy of GENERAL MOTORS CORP.
5. Install the timing chain dampener.

   Tighten

   Tighten the timing chain dampener bolt to 22 N.m (16 lb ft).

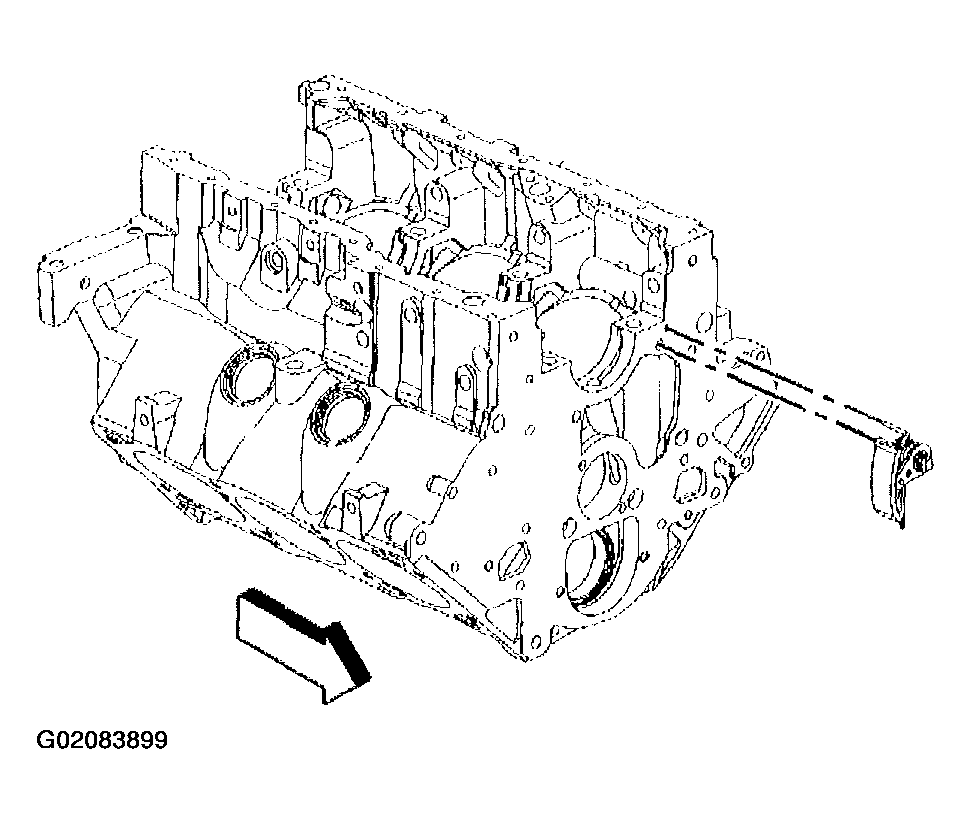

   Fig 3: Installing Timing Chain Dampener

   Courtesy of GENERAL MOTORS CORP.
