Oil Pump Pipe and Screen Assembly Removal

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump pipe and screen assembly bolts.
  2. Remove the oil pump pipe and screen assembly.
  3. Remove the oil pump pipe and screen assembly gasket.
  4. Use solvent to clean the oil pump pipe and screen.

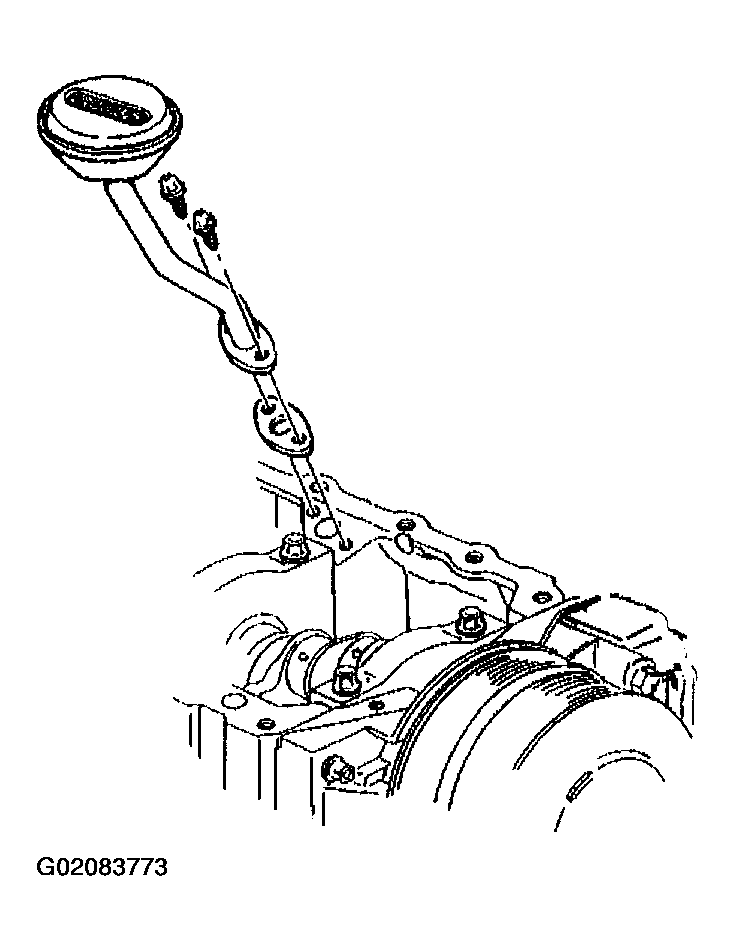

    Fig 1: Removing Oil Pump Pipe And Screen Assembly
    G02083773Courtesy of GENERAL MOTORS CORP.
