Oil Pump Disassemble

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump cover screws.
  2. Remove the oil pump cover.
  3. Remove the oil pump gears.

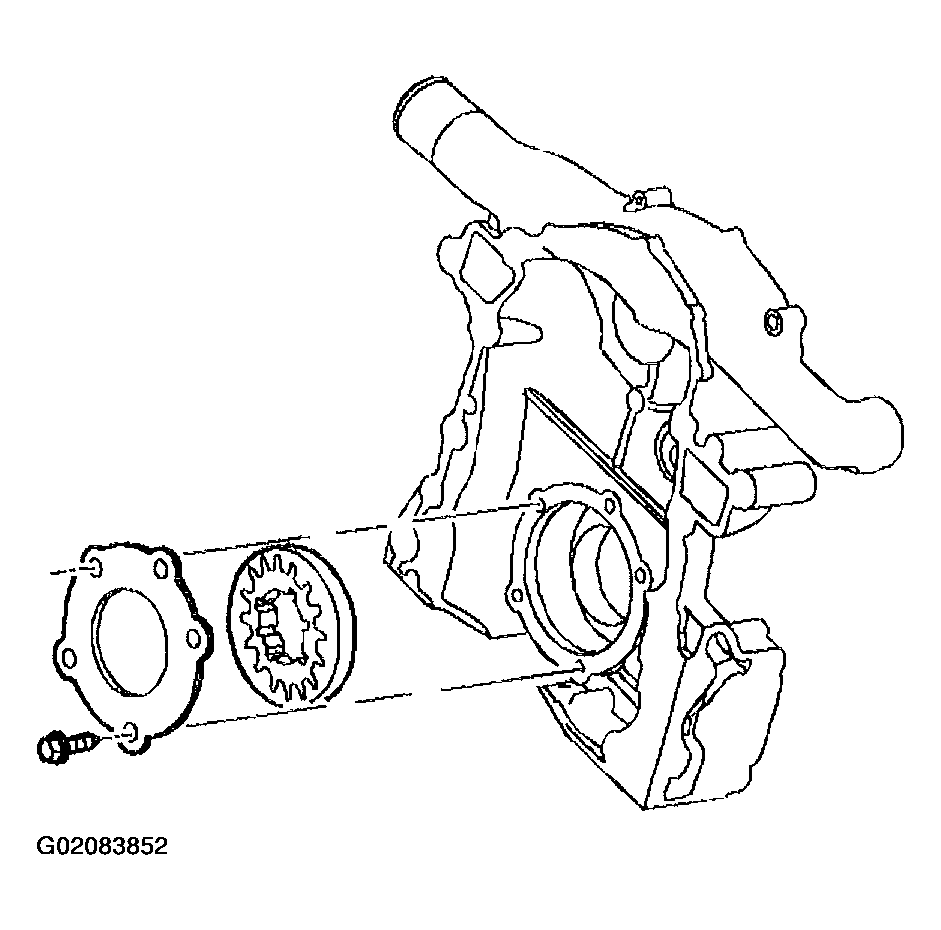

    Fig 1: Removing Cover And Oil Pump Gears
    G02083852Courtesy of GENERAL MOTORS CORP.
