Intake Manifold Installation - Lower (L36)

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower intake manifold gasket.
  2. Install the lower intake manifold.
  3. Apply threadlocker 272 GM P/N 12345493, (Canadian P/N 10953488) or the equivalent to the bolt threads.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the lower intake manifold bolts.

    Tighten

    Tighten the lower intake manifold bolts in sequence to 15 N.m (11 lb ft).

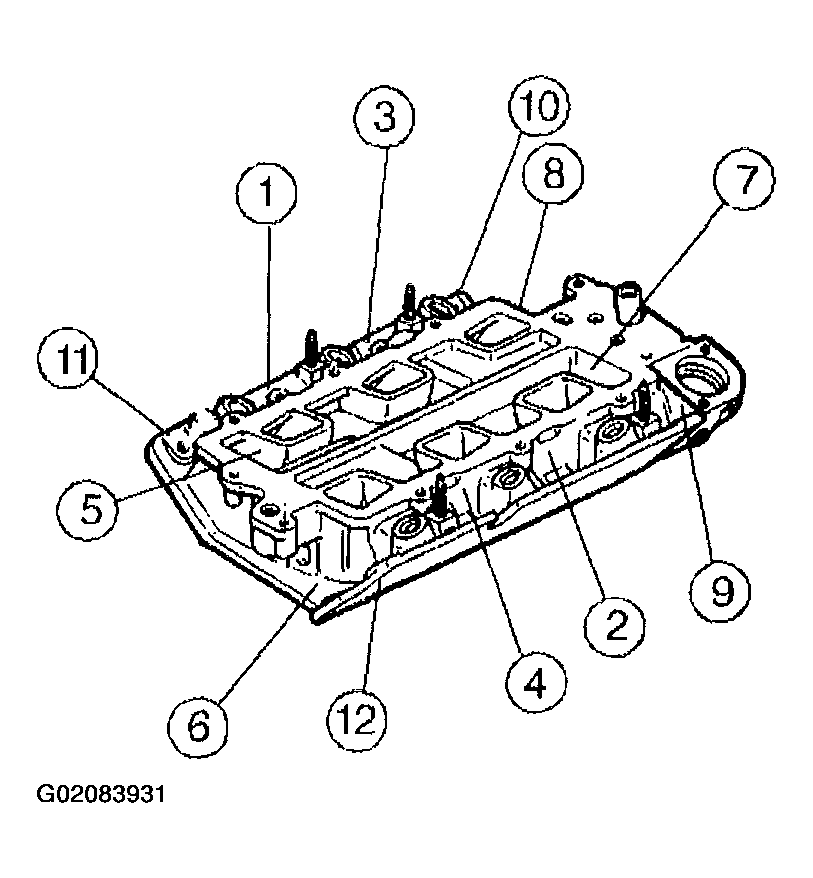

    Fig 1: Tightening Lower Intake Manifold Bolts In Sequence (L36)
    G02083931Courtesy of GENERAL MOTORS CORP.
