Drive Belt Idler Pulley Installation (L67)

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt idler pulley.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the drive belt idler pulley bolt.

    Tighten

    Tighten the drive belt idler pulley bolt to 50 N.m (37 lb ft).

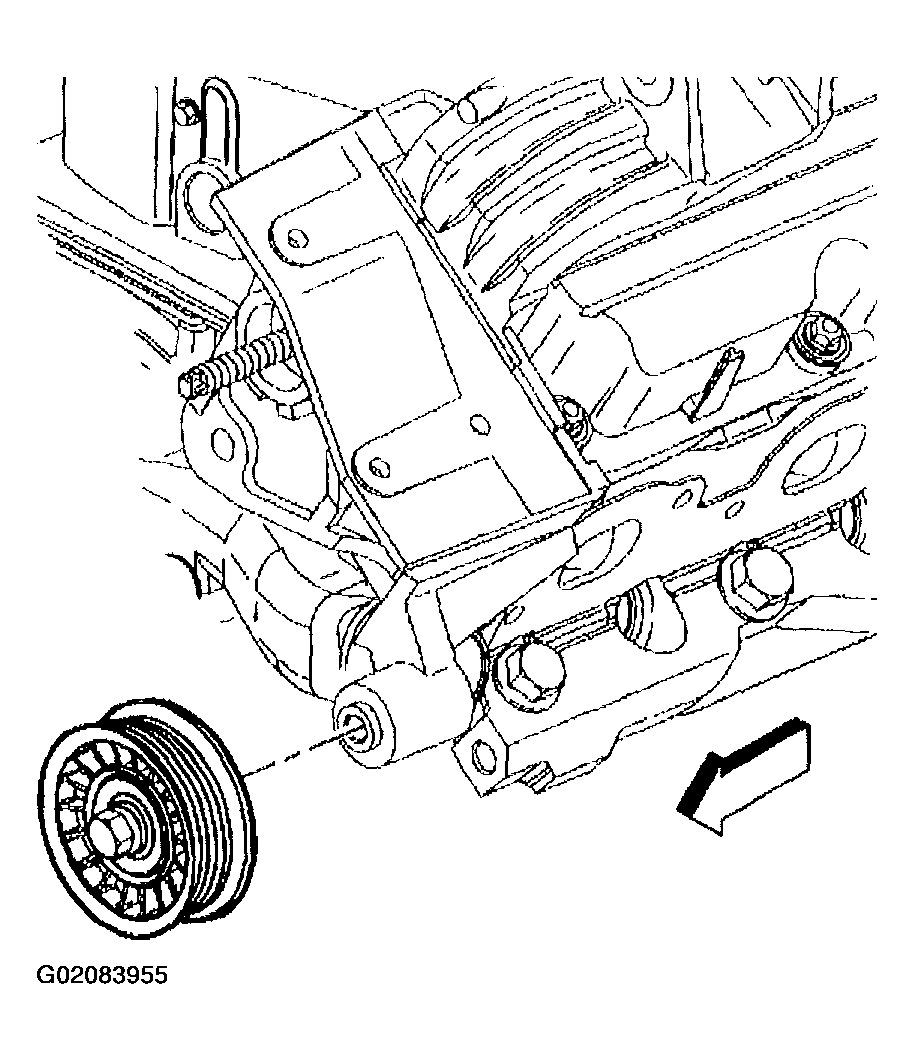

    Fig 1: Installing Drive Belt Idler Pulley (L67)
    G02083955Courtesy of GENERAL MOTORS CORP.
