Cylinder Head Removal - Right

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head bolts.
  2. Discard the cylinder head bolts.
  3. Remove the cylinder head.
  4. Remove the cylinder head gasket.

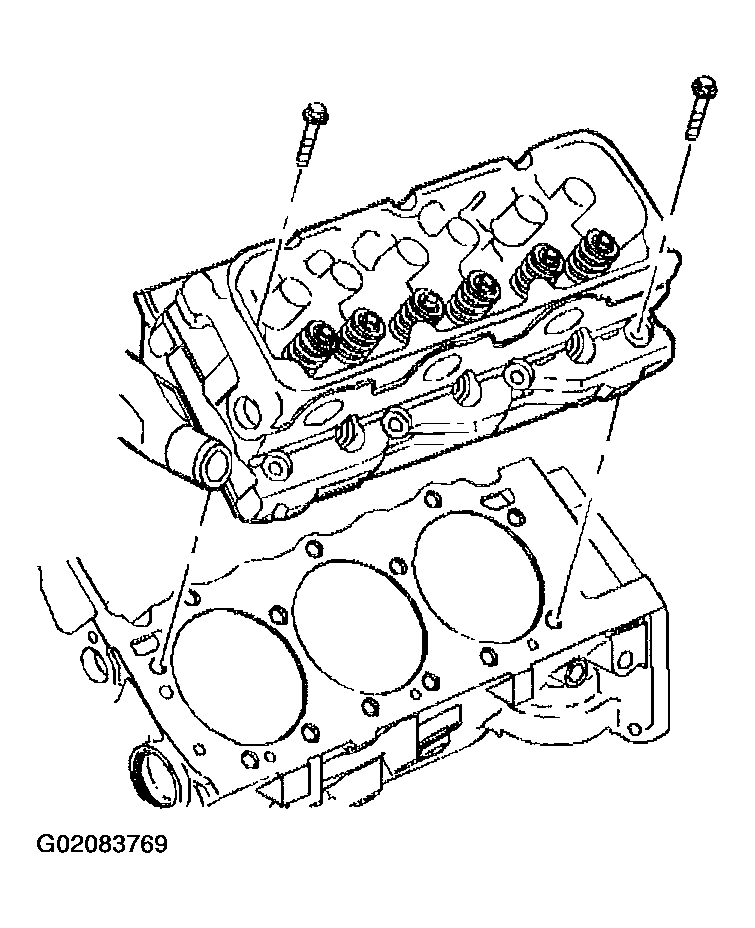

    Fig 1: Removing Cylinder Head (Right)
    G02083769Courtesy of GENERAL MOTORS CORP.
