Camshaft Installation

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the camshaft with prelube GM P/N 12345501 (Canadian P/N 992704) or the equivalent.
  2. Install the camshaft.
  3. Install the camshaft thrust plate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the camshaft thrust plate bolts.

    Tighten

    Tighten the bolts to 15 N.m (11 lb ft).

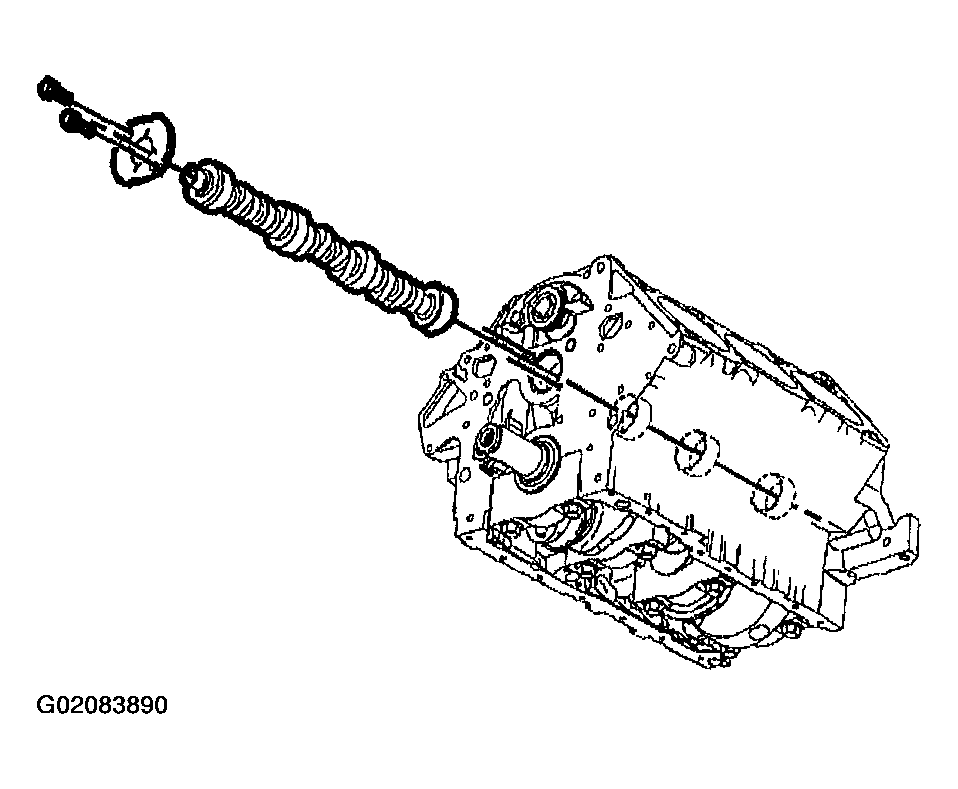

    Fig 1: Installing Camshaft Thrust Plate
    G02083890Courtesy of GENERAL MOTORS CORP.
