Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Dip the balance shaft bushing in clean engine oil.

    Important:  The J 36995  installs the balance shaft bushing to the correct depth. The balance shaft bushing is properly installed when J 36995  fully contacts the balance shaft bore or the engine block/transaxle mounting flange.

  2. Use the balance shaft bushing installers to install the balance shaft bushing.
  3. Remove J 36995  .
    Fig 1: Installing Balance Shaft Bushing
    G02083873Courtesy of GENERAL MOTORS CORP.
  4. Dip the balance shaft bearing into clean engine oil.
  5. Use J 21465-13  and J 36995  to install the balance shaft bearing into the engine block.

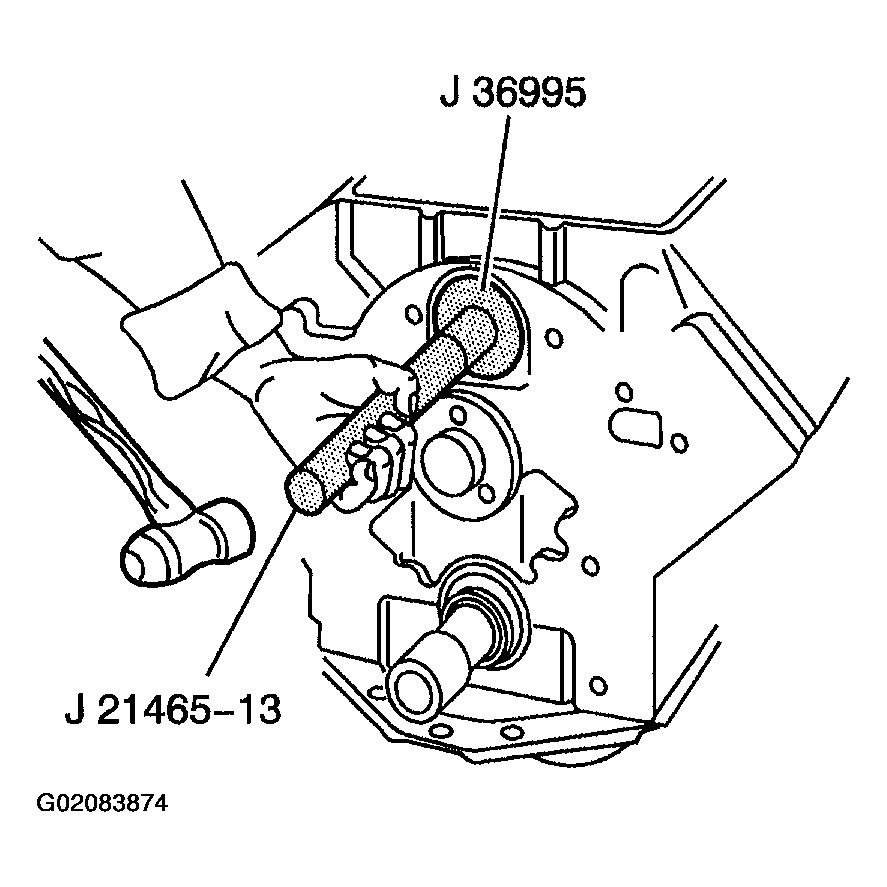

    Fig 2: Installing Balance Shaft Bearing Into Engine Block
    G02083874Courtesy of GENERAL MOTORS CORP.
