Test Description

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This test is to verify that the noise is being caused by the accessory drive components. When removing the drive belt the water pump may not be operating and the engine may overheat.

    Also DTCs may set when the engine is operating with the drive belt removed.

  2. 4. The inspection should include checking the drive belt tensioner and the drive belt idler pulley bearings. The drive belt may have to be installed and the accessory drive components operated separately by varying their loads. Refer to the suspected accessory drive component for the proper inspection and replacement procedure.

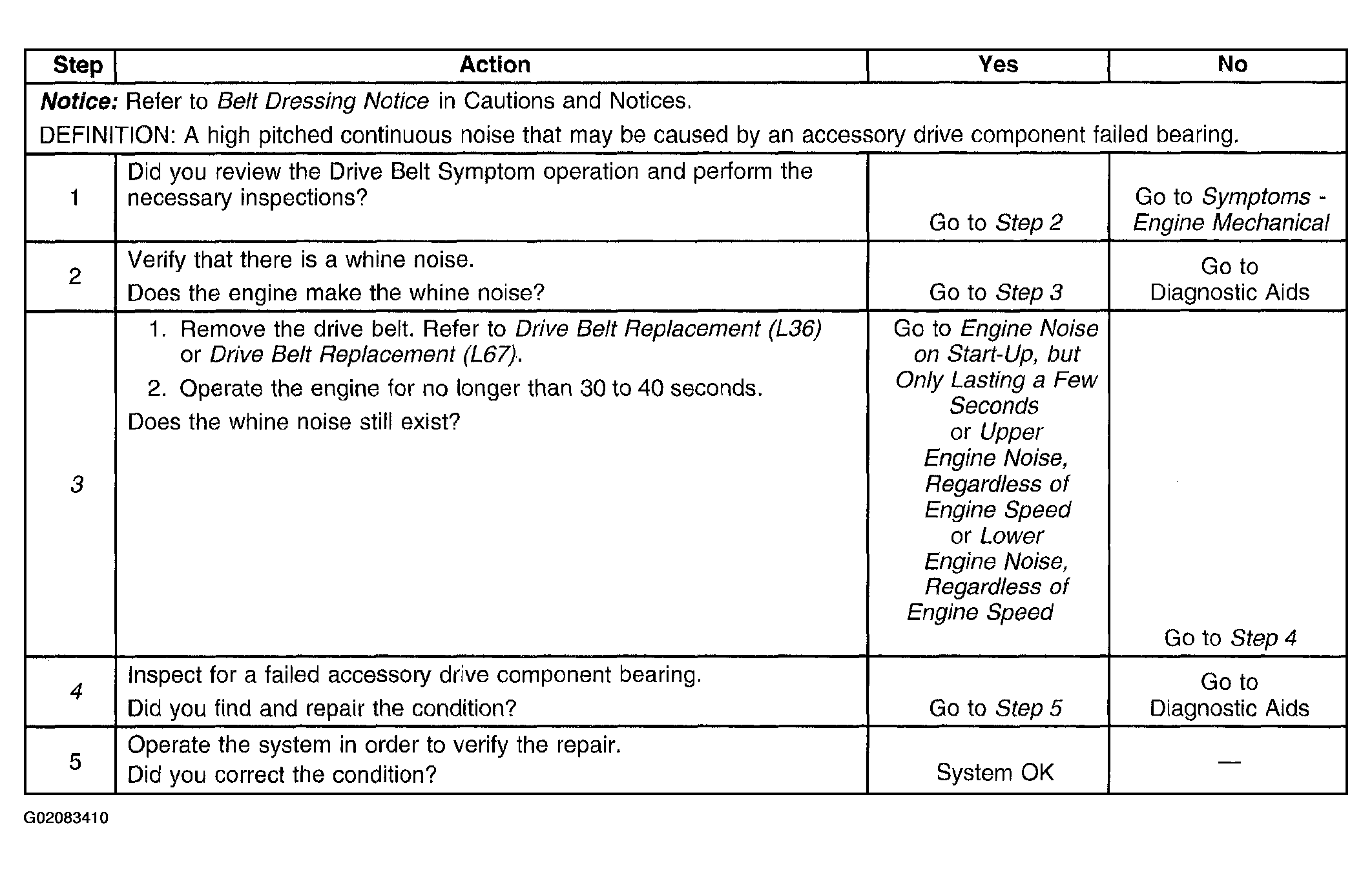

    Fig 1: Diagnostic System Check - Drive Belt Whine Diagnosis
    G02083410Courtesy of GENERAL MOTORS CORP.
