Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the valve lifters with prelube GM P/N 1052367 (Canadian P/N 992869) or equivalent.
  2. Install the valve lifters to the same location from which they were removed.
  3. Install the valve lifter guides.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the valve lifter guide bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

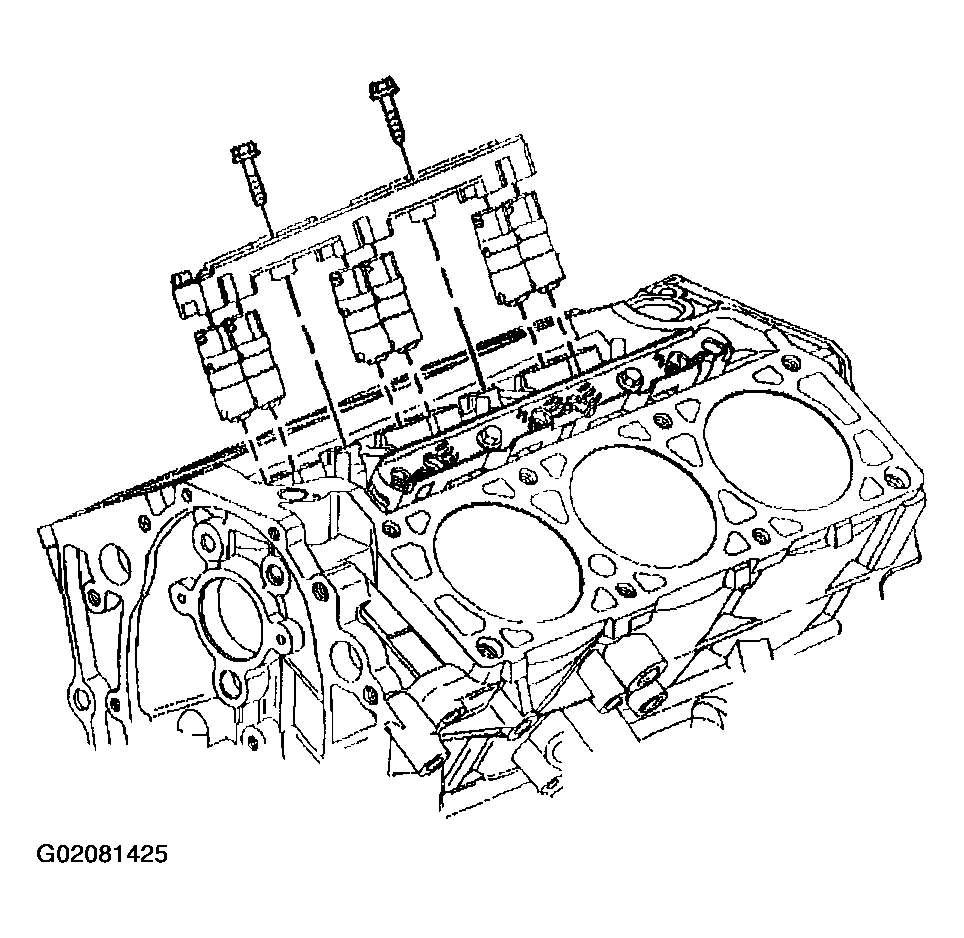

    Fig 1: Installing Valve Lifter
    G02081425Courtesy of GENERAL MOTORS CORP.
  5. Install the intake manifold oil splash shield
  6. Install the valve rocker arms and pushrods. Refer to VALVE ROCKER ARM AND PUSH ROD REPLACEMENT  .
  7. Install the lower intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT - LOWER  .

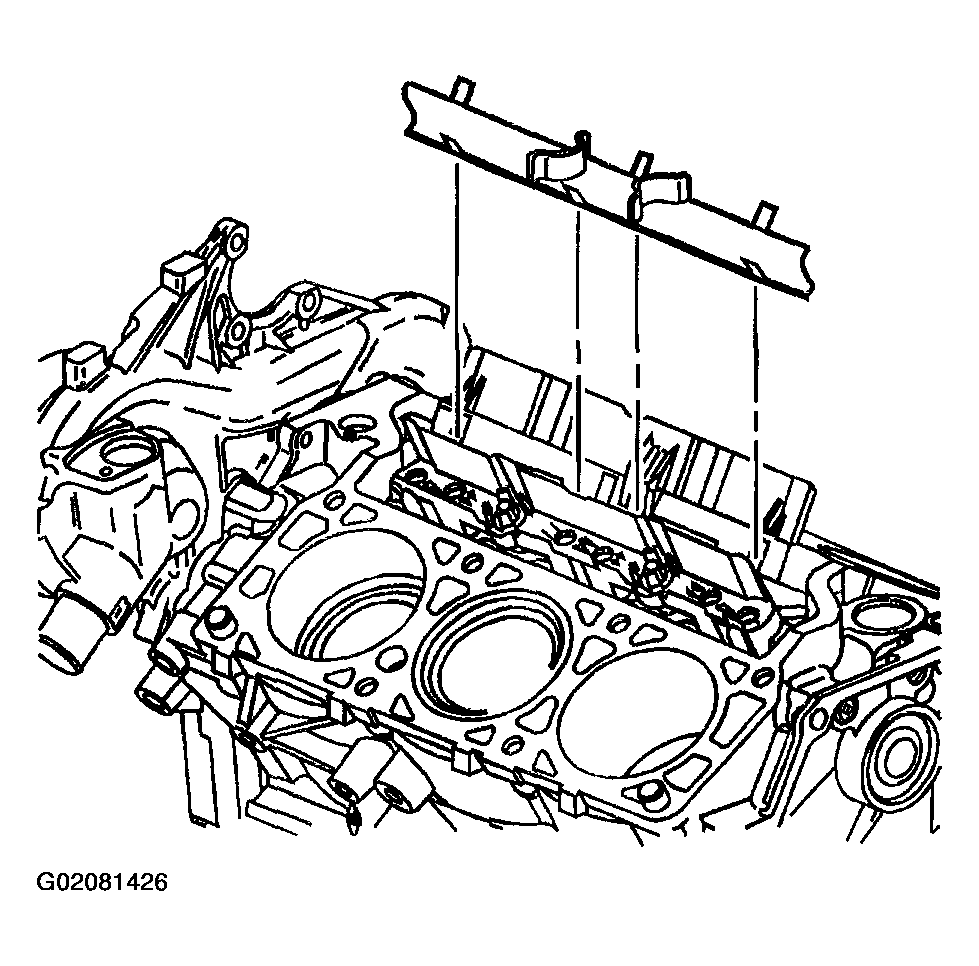

    Fig 2: Installing Intake Manifold Oil Splash Shield
    G02081426Courtesy of GENERAL MOTORS CORP.
