Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the vacuum hoses (1) from the fuel pressure regulator (3) and the positive crankcase ventilation (PCV) valve (2).
  2. Remove the PCV valve (2).

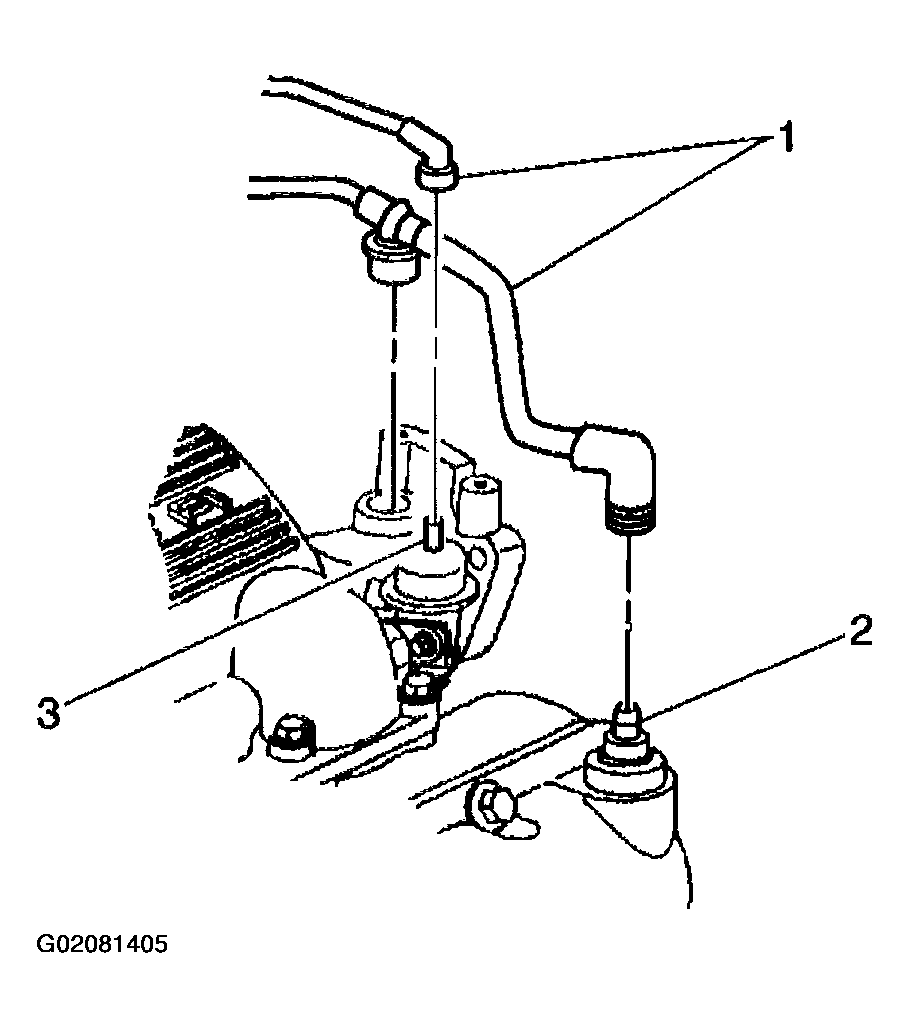

    Fig 1: Removing Positive Crankcase Ventilation (PCV) Valve
    G02081405Courtesy of GENERAL MOTORS CORP.
