Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the PCV valve (2).
  2. Connect the vacuum hoses (1) to the fuel pressure regulator (3) and the PCV valve (2).

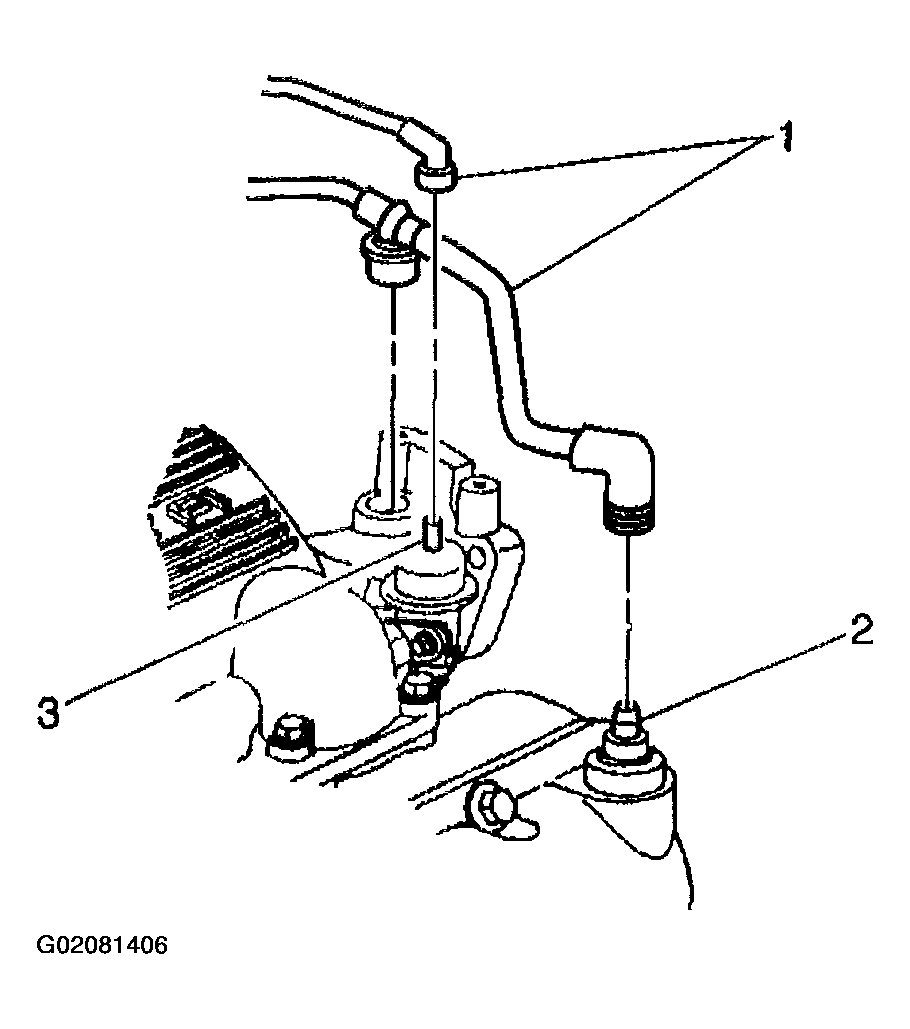

    Fig 1: Installing Positive Crankcase Ventilation PCV valve
    G02081406Courtesy of GENERAL MOTORS CORP.
