Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT - UPPER  .
  2. Remove the fuel pipe clip bolt and the clip.
  3. Remove the fuel feed and the fuel return pipes from the fuel injector rail. Refer to FUEL RAIL & INJECTORS in Engine Performance - Removal and Installation.

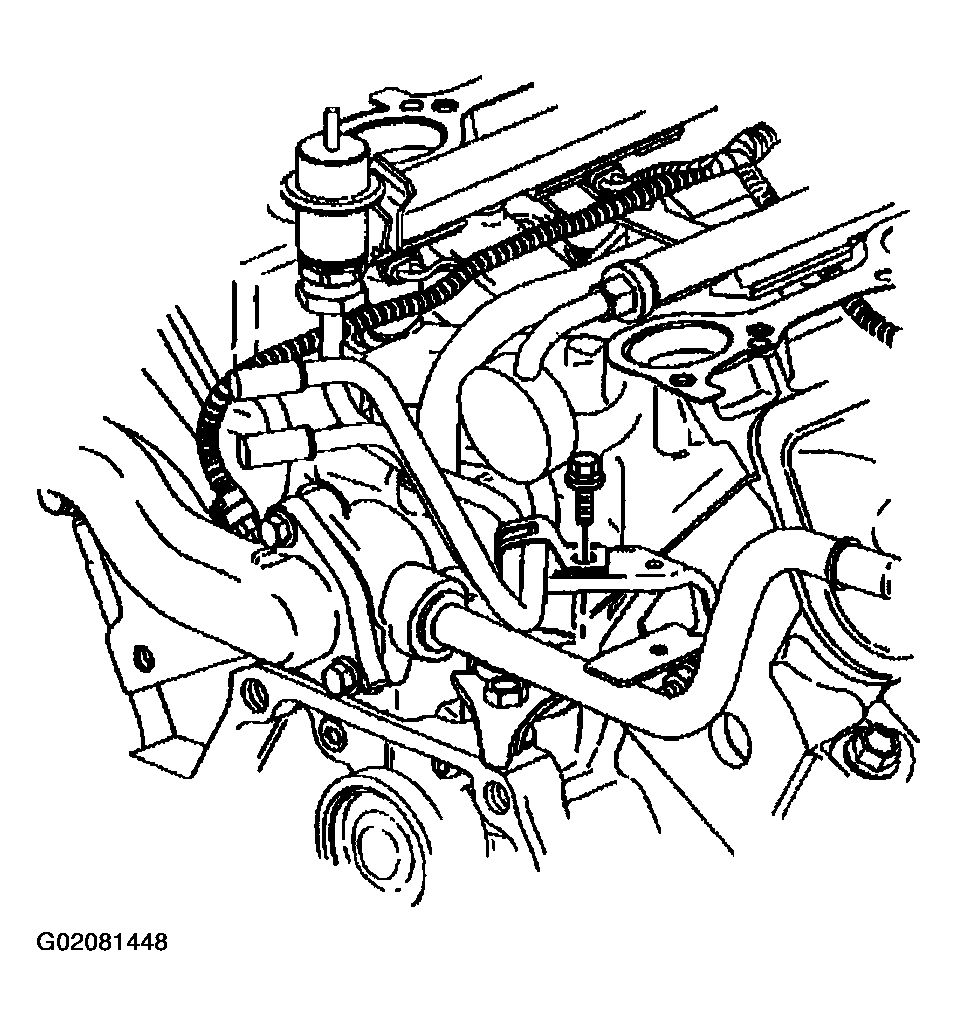

    Fig 1: Removing Fuel Pipe Clip Bolt And Clip
    G02081448Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil pump drive bolt.
  5. Remove the oil pump drive clamp.
  6. Remove the oil pump drive.
  7. Remove the oil pump drive seal.

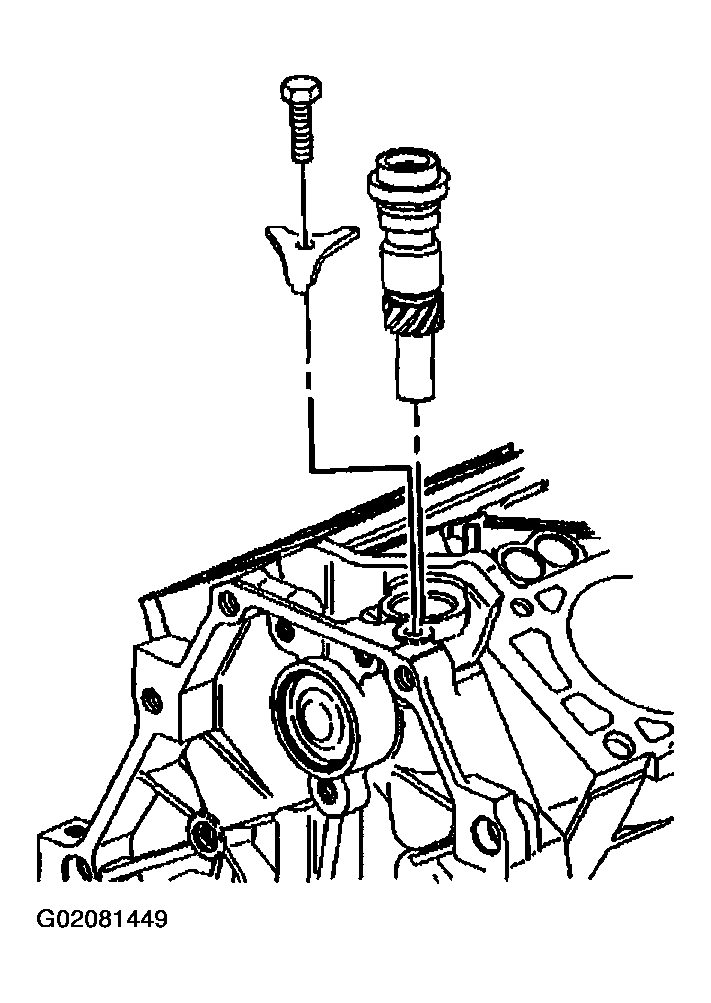

    Fig 2: Removing Oil Pump Drive Seal
    G02081449Courtesy of GENERAL MOTORS CORP.
