Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the drive belt tensioner bolt.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

  3. Install the drive belt. Refer to DRIVE BELT REPLACEMENT  .
  4. Install the coolant recovery reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.

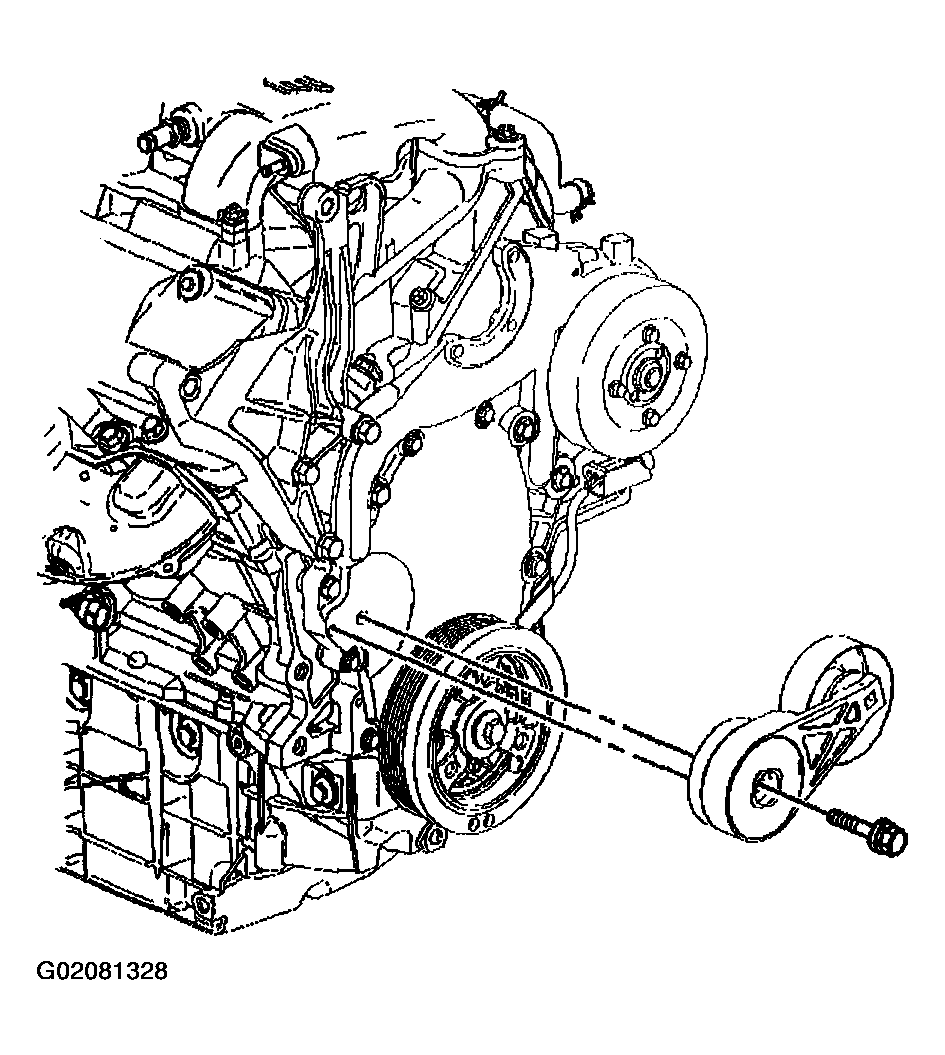

    Fig 1: Installing Drive Belt Tensioner
    G02081328Courtesy of GENERAL MOTORS CORP.
