Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft balancer. Refer to CRANKSHAFT BALANCER REPLACEMENT  .
  2. Pry out the crankshaft front oil seal with a flat-bladed tool such as a large screwdriver. Refer to the instructions supplied with the replacement part.
  3. Inspect the crankshaft, the crankshaft balancer and the engine front cover for wear and/or damage. Replace or repair the crankshaft, the crankshaft balancer and/or engine front cover as necessary.

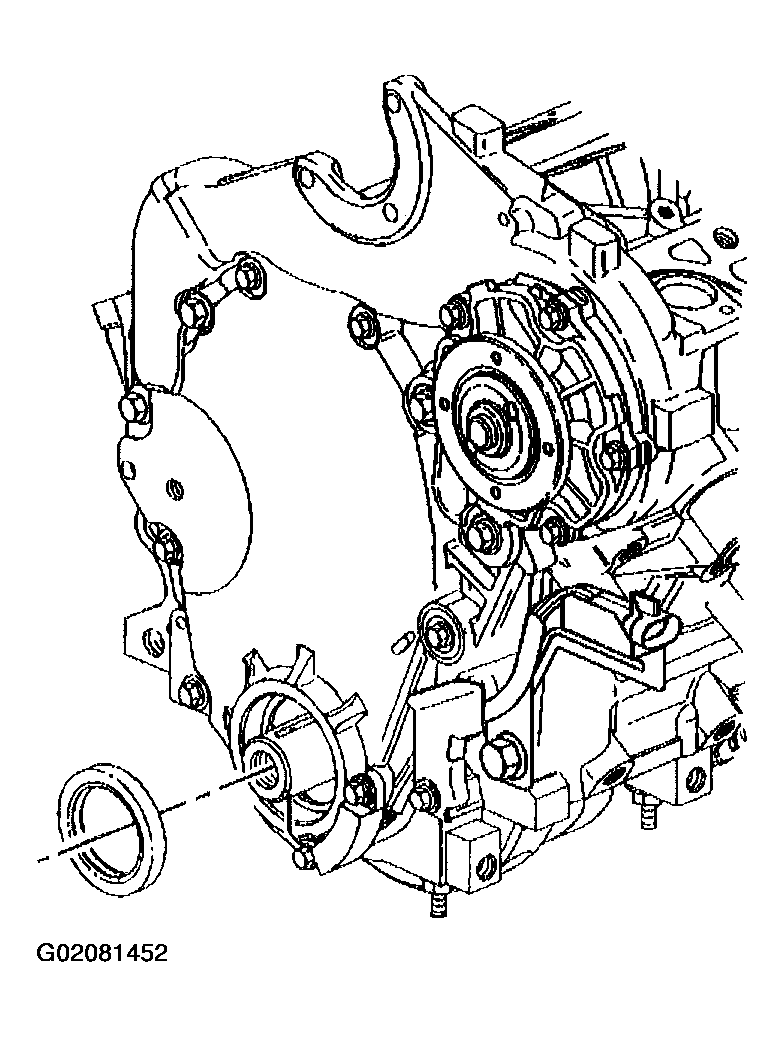

    Fig 1: Removing Crankshaft Front Oil Seal
    G02081452Courtesy of GENERAL MOTORS CORP.
