Water Outlet and Thermostat Removal

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water outlet bolts.
  2. Remove the water outlet.

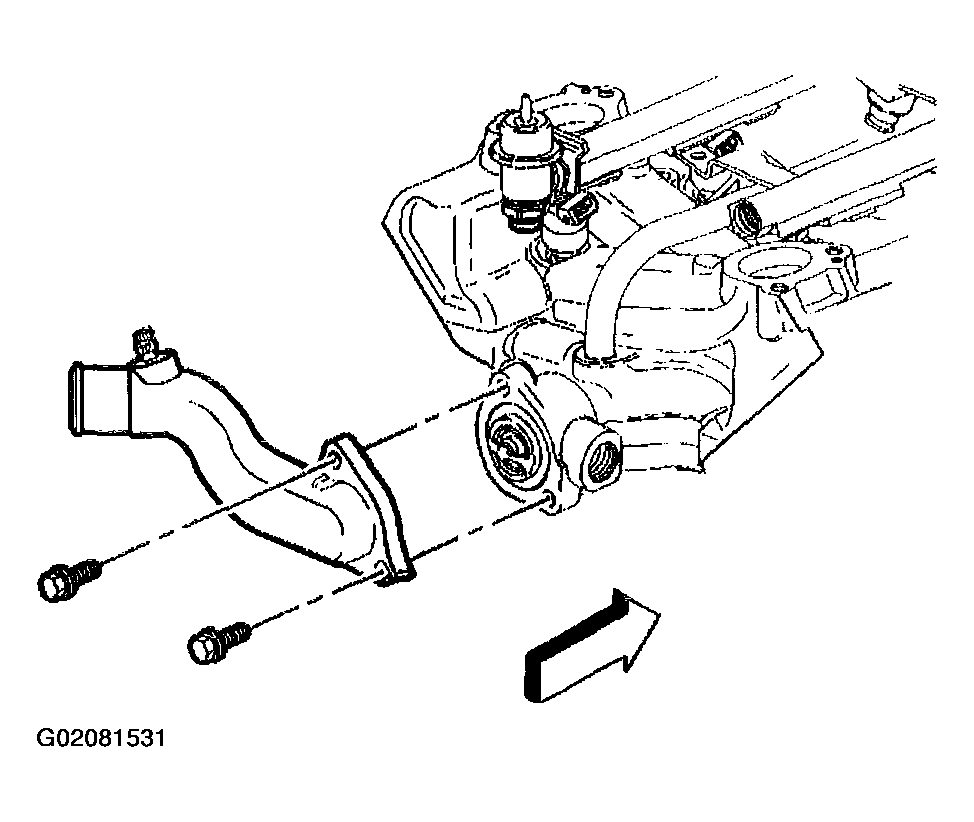

    Fig 1: Removing Water Outlet
    G02081531Courtesy of GENERAL MOTORS CORP.
  3. Remove the thermostat.

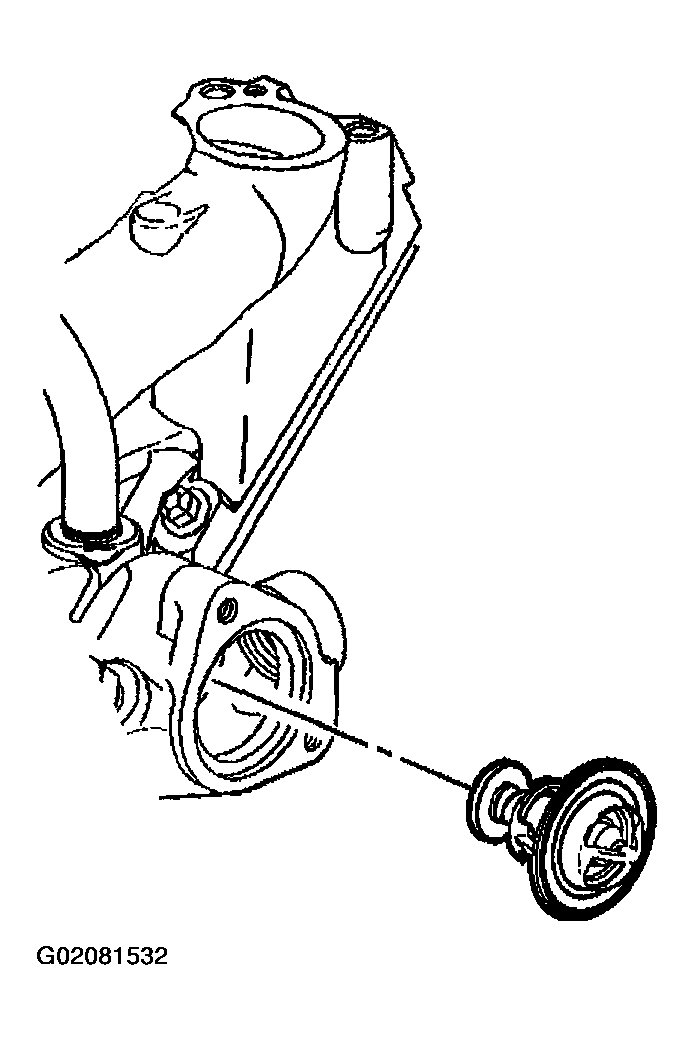

    Fig 2: Removing Thermostat
    G02081532Courtesy of GENERAL MOTORS CORP.
