Water Outlet and Thermostat Installation

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the thermostat.

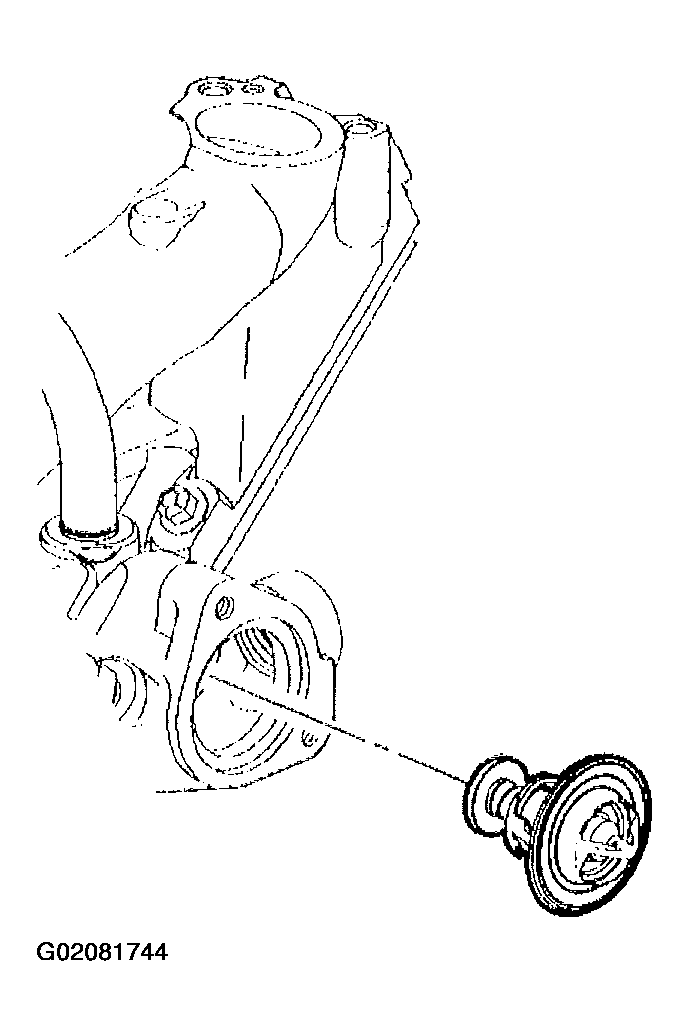

    Fig 1: Installing Thermostat
    G02081744Courtesy of GENERAL MOTORS CORP.
  2. Install the water outlet.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the water outlet bolts.

    Tighten

    Tighten the water outlet bolts to 25 N.m (18 lb ft).

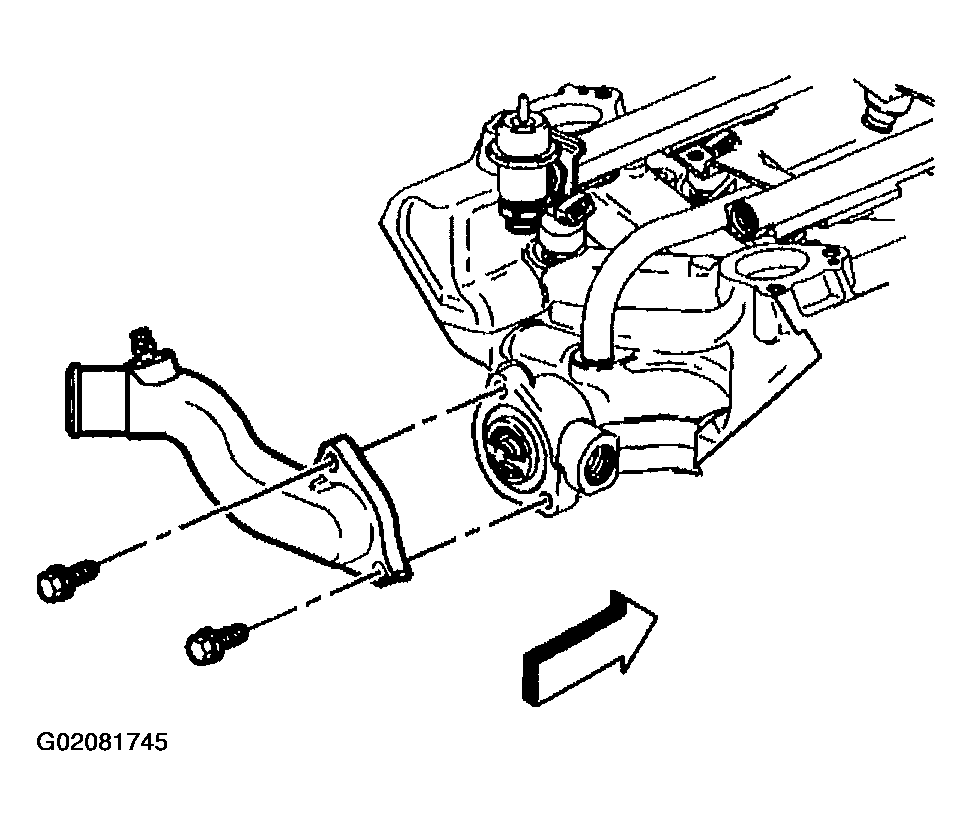

    Fig 2: Installing Water Outlet
    G02081745Courtesy of GENERAL MOTORS CORP.
