Valve Rocker Arm and Push Rod Removal

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm bolts.

    Important:  Place the valve train components in a rack in order to ensure that the components are installed in the same location from which they were removed.

  2. Remove the valve rocker arms.

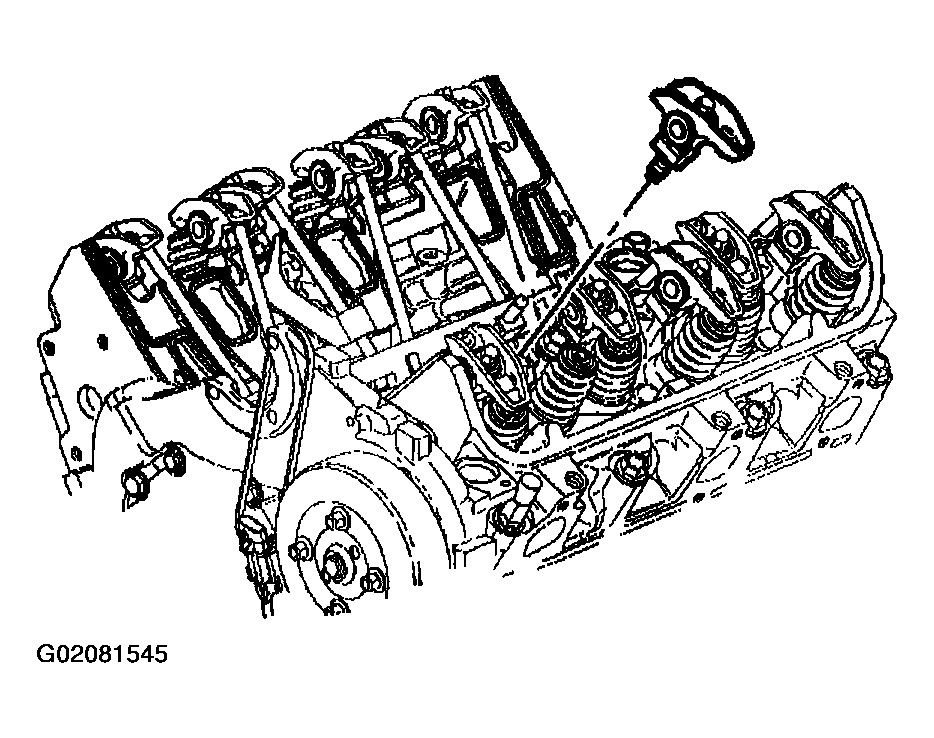

    Fig 1: Removing Valve Rocker Arms
    G02081545Courtesy of GENERAL MOTORS CORP.
  3. Remove the push rods.
    • The intake push rods measure 146 mm (5.75 in).
    • The exhaust push rods measure 152.51 mm (6.0 in).

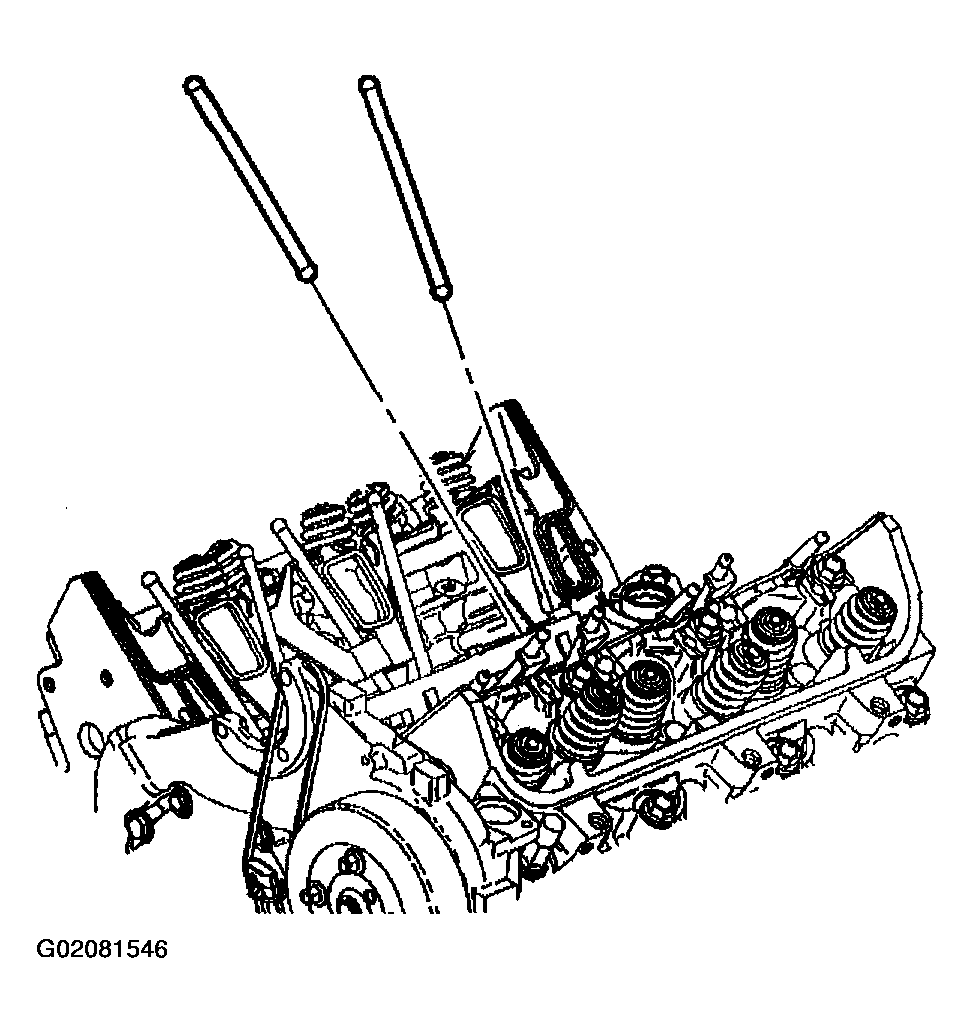

    Fig 2: Removing Push Rods
    G02081546Courtesy of GENERAL MOTORS CORP.
  4. Remove the intake manifold gaskets.

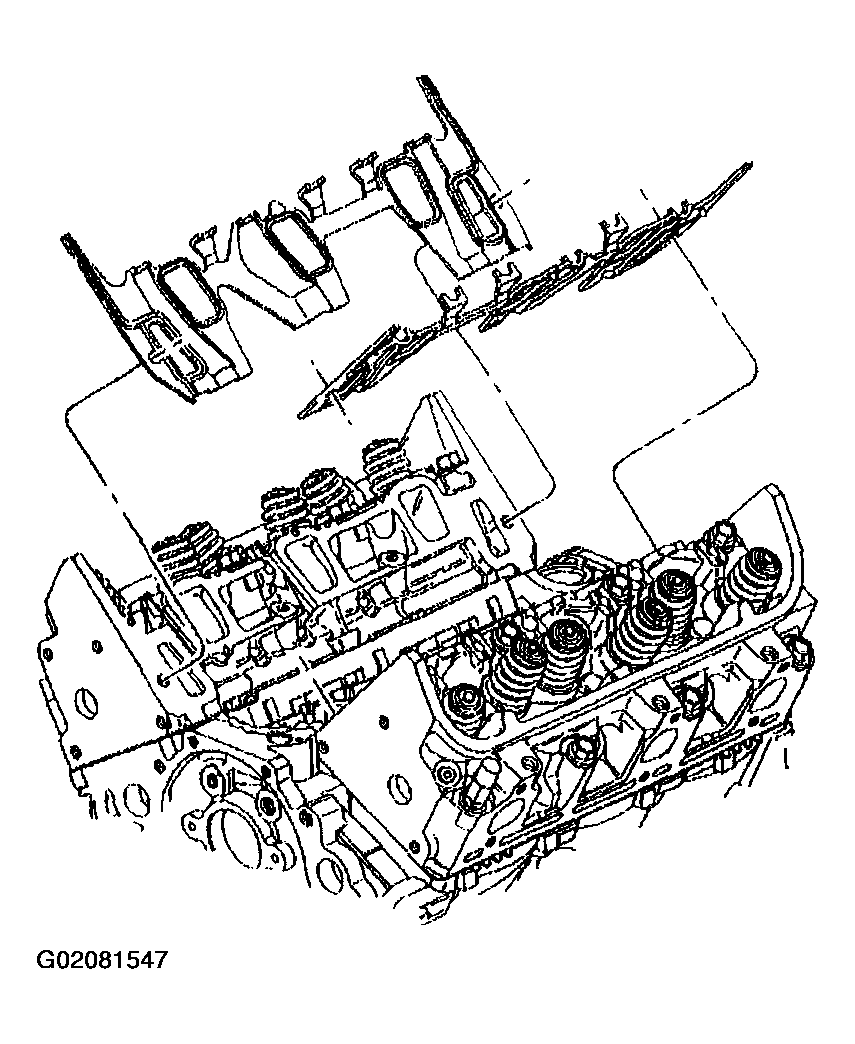

    Fig 3: Removing Intake Manifold Gaskets
    G02081547Courtesy of GENERAL MOTORS CORP.
