Valve Rocker Arm Cover Installation - Right

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve rocker arm cover gasket into the valve rocker arm cover.
  2. Apply sealer GM P/N 12346286, (Canadian P/N 10953472) or the equivalent to the notches where the cylinder head and intake manifold meet.
  3. Install the valve rocker arm cover.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the valve rocker arm cover bolts to 10 N.m (89 lb in).

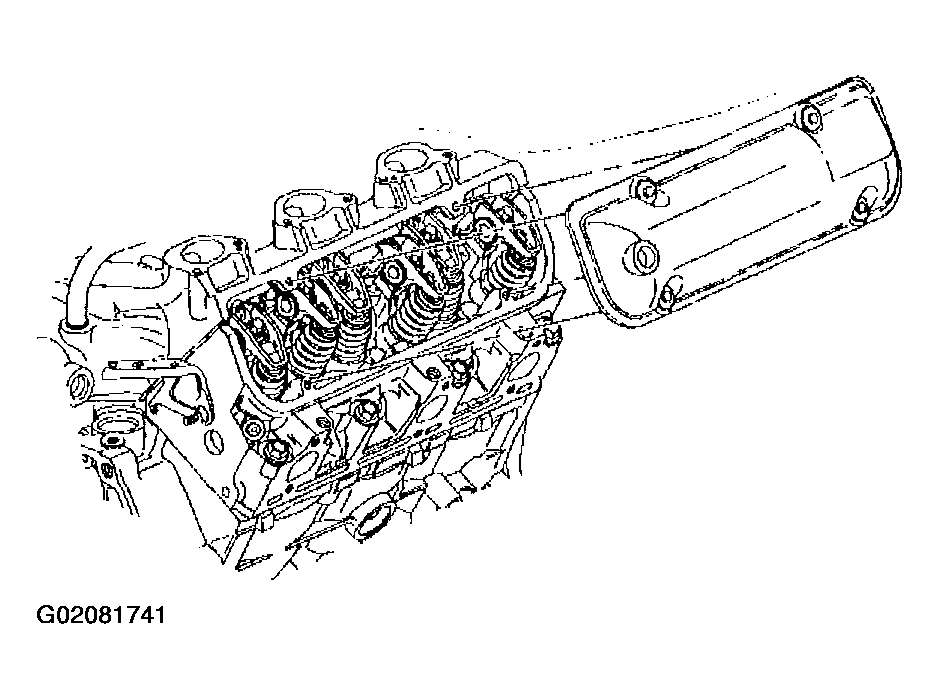

    Fig 1: Installing Right Valve Rocker Arm Cover
    G02081741Courtesy of GENERAL MOTORS CORP.
  5. Install the vacuum lines from the upper intake manifold.

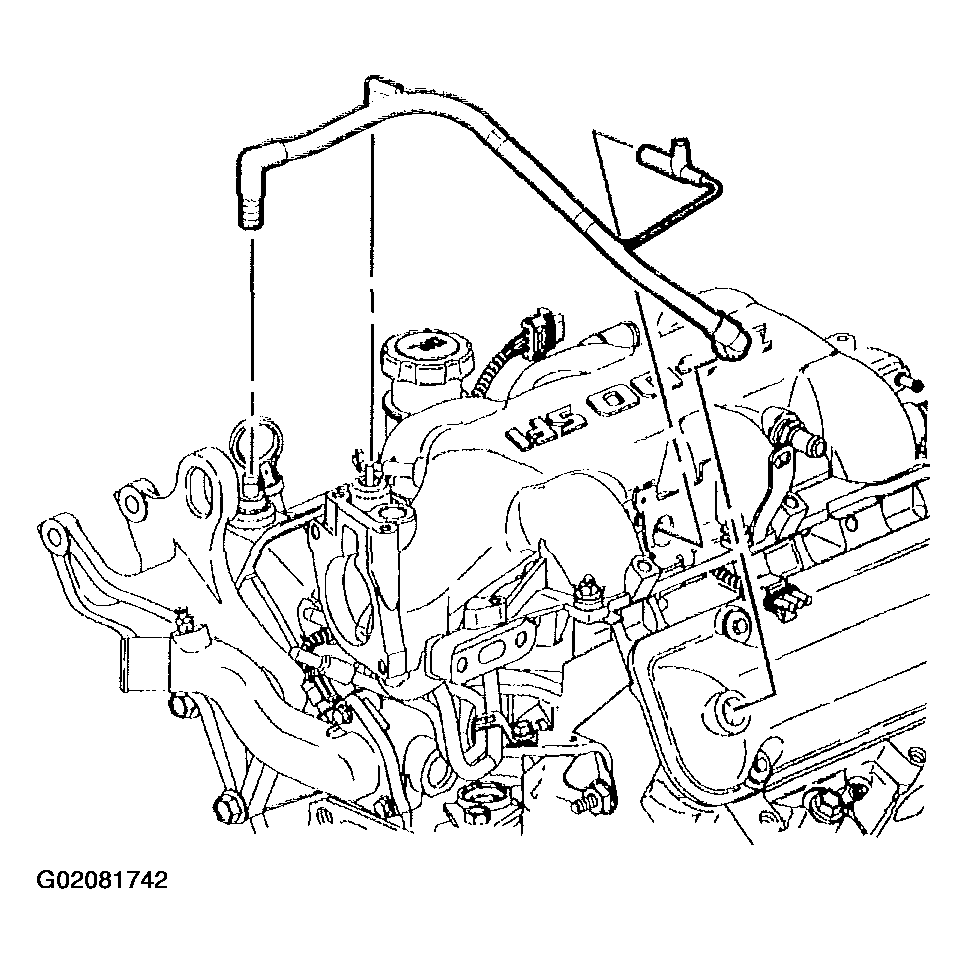

    Fig 2: Installing Vacuum Lines From Upper Intake Manifold
    G02081742Courtesy of GENERAL MOTORS CORP.
  6. Install the ignition coil studs.

    Tighten

    Tighten the ignition coil studs to 25 N.m (18 lb ft).

  7. Install the electronic ignition control module.
  8. Install the electronic ignition control module nuts and bolts.

    Tighten

    Tighten the electronic ignition control module nuts and bolts to 25 N.m (18 lb ft).

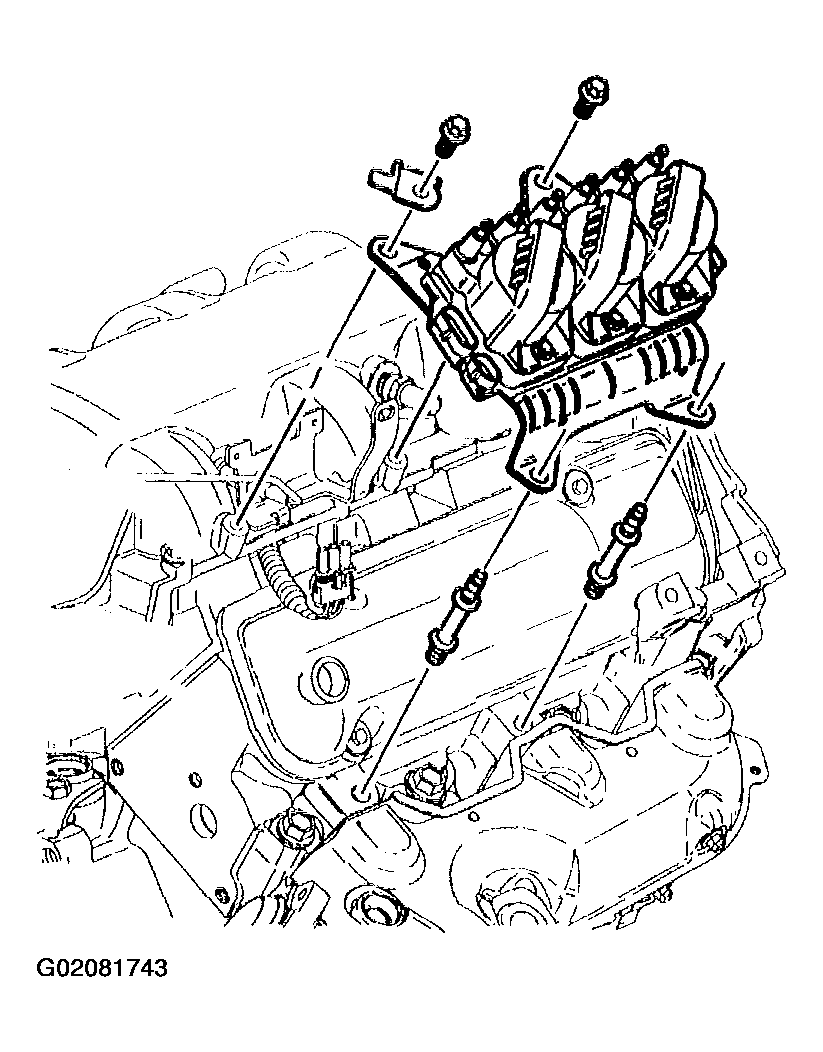

    Fig 3: Installing Ignition Coil
    G02081743Courtesy of GENERAL MOTORS CORP.
