Timing Chain and Sprockets Removal

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft sprocket bolt.
  2. Remove the camshaft sprocket and timing chain.

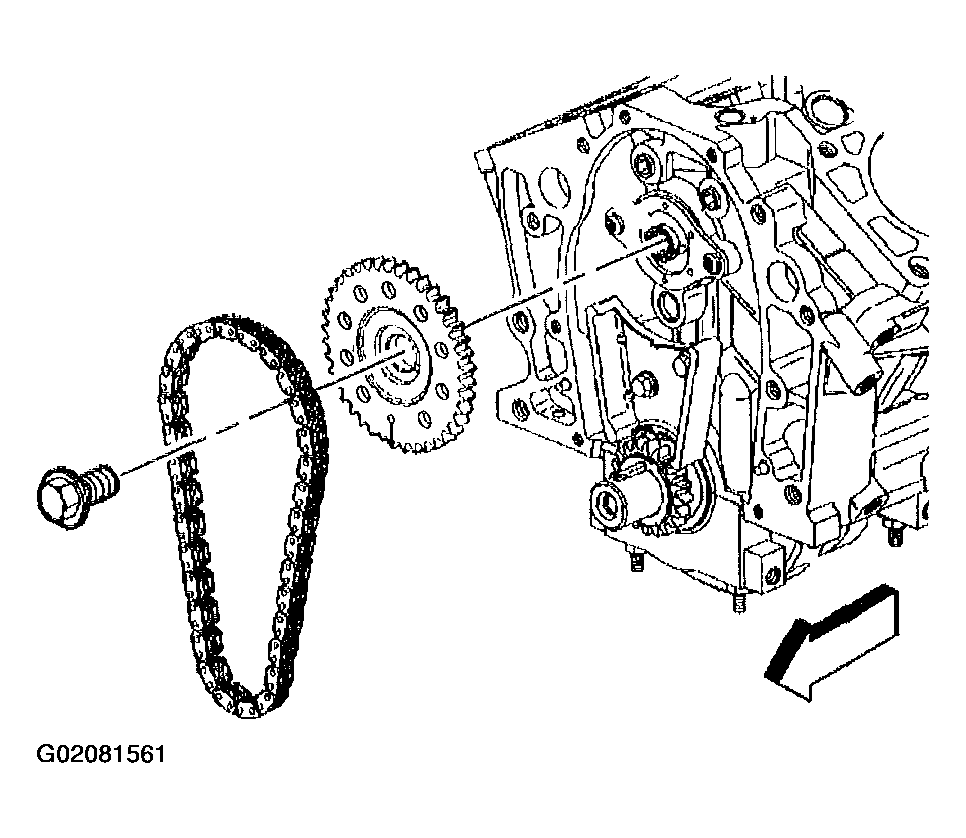

    Fig 1: Removing Timing Chain And Sprocket
    G02081561Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft sprocket.

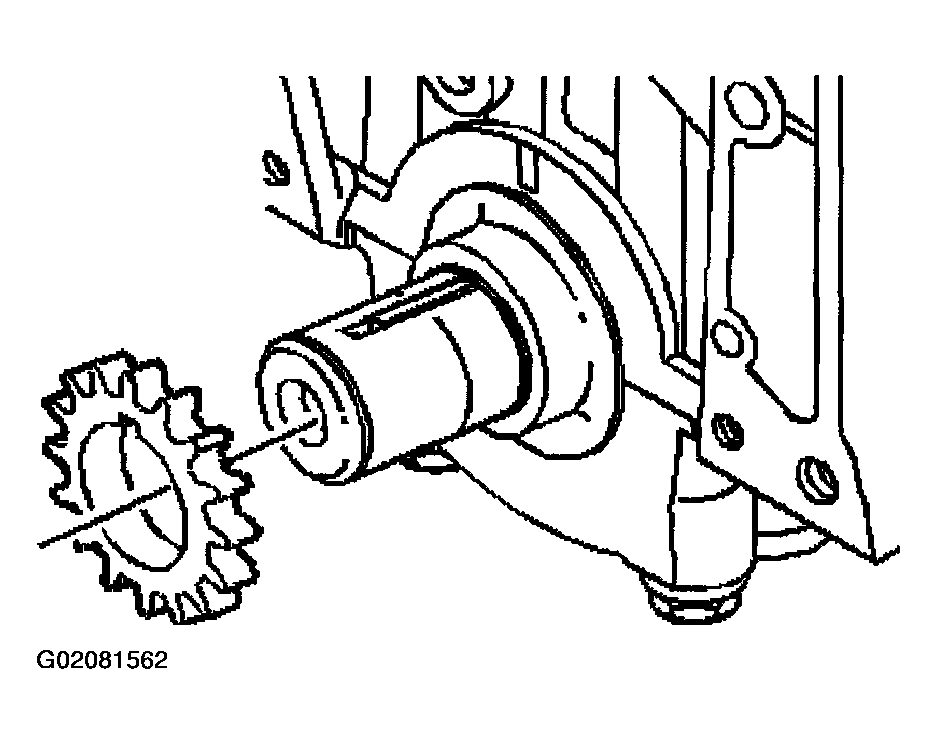

    Fig 2: Removing Crankshaft Sprocket
    G02081562Courtesy of GENERAL MOTORS CORP.
  4. Remove the timing chain dampener bolts.
  5. Remove the timing chain dampener.

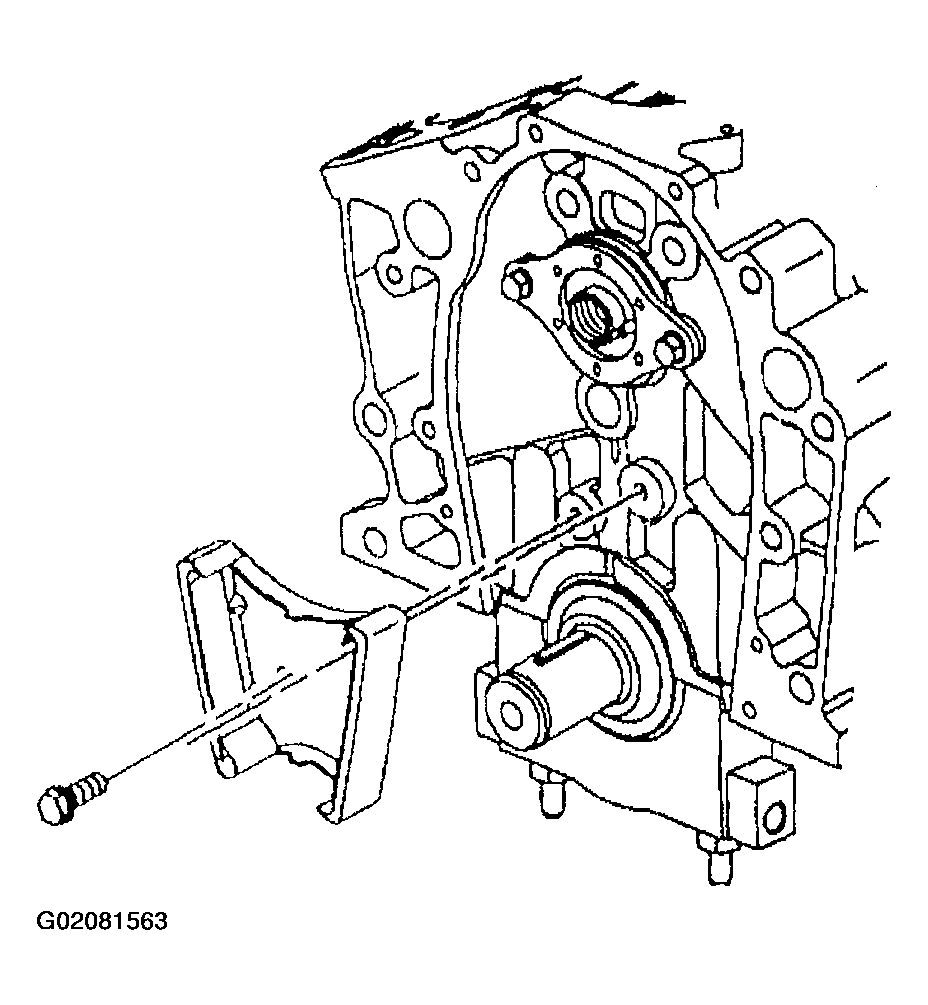

    Fig 3: Removing Timing Chain Dampener
    G02081563Courtesy of GENERAL MOTORS CORP.
