Oil Pump Drive Removal

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump drive clamp bolt.
  2. Remove the oil pump drive clamp.
  3. Remove the oil pump drive.

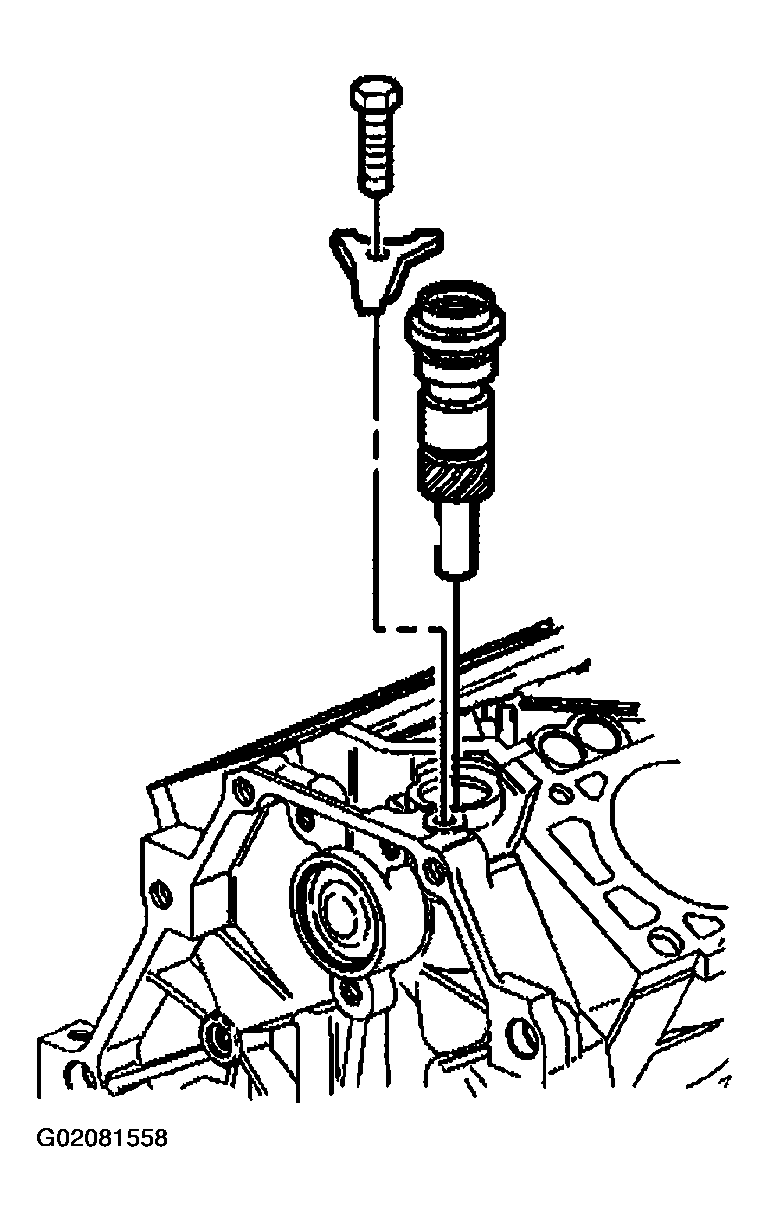

    Fig 1: Removing Oil Pump Drive
    G02081558Courtesy of GENERAL MOTORS CORP.
