Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the thermostat bypass pipe to throttle body nut (2).
  2. Remove the thermostat bypass pipe to throttle body hose clamps (1).
  3. Remove the thermostat bypass pipe to engine front cover bolt (4).
  4. Remove the thermostat bypass pipe hose clamp (5) and hose from pipe.
  5. Remove the thermostat bypass pipe (3).

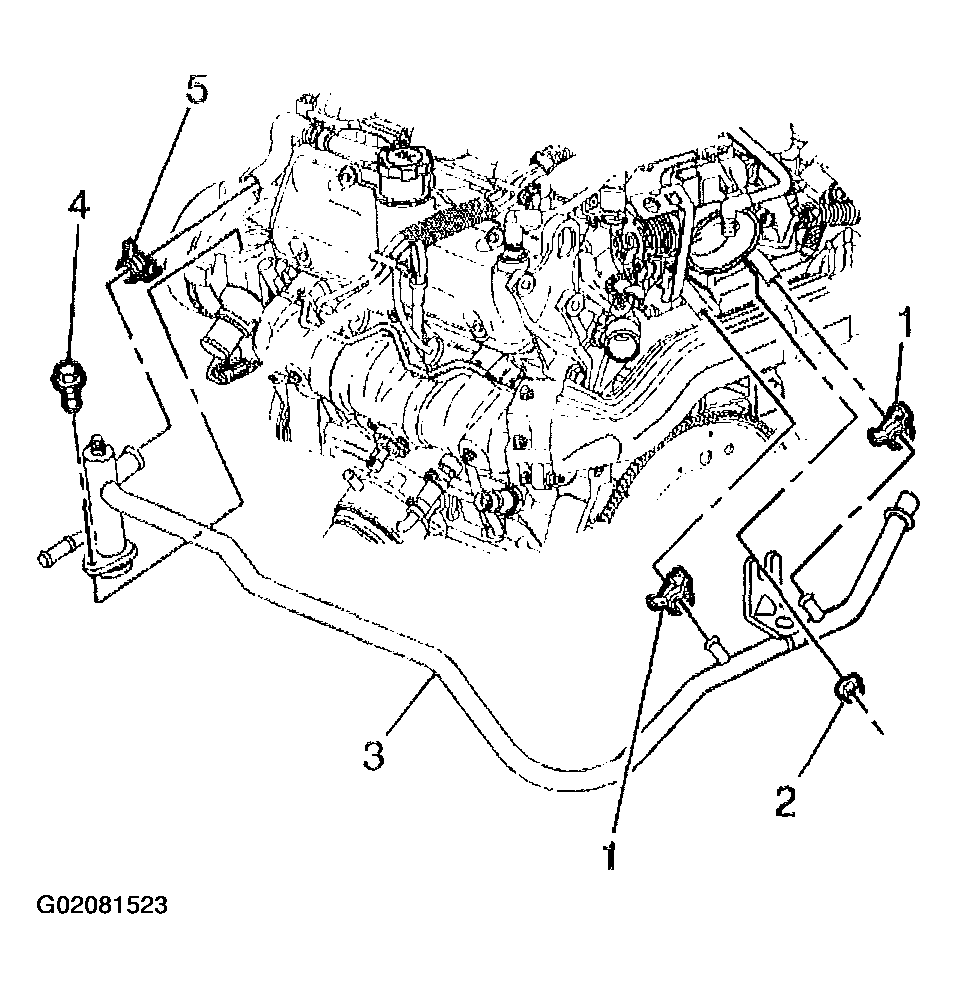

    Fig 1: Removing Oil Level Indicator Tube
    G02081523Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil level indicator tube bolt.
  7. Remove the oil level indicator and oil level indicator tube.

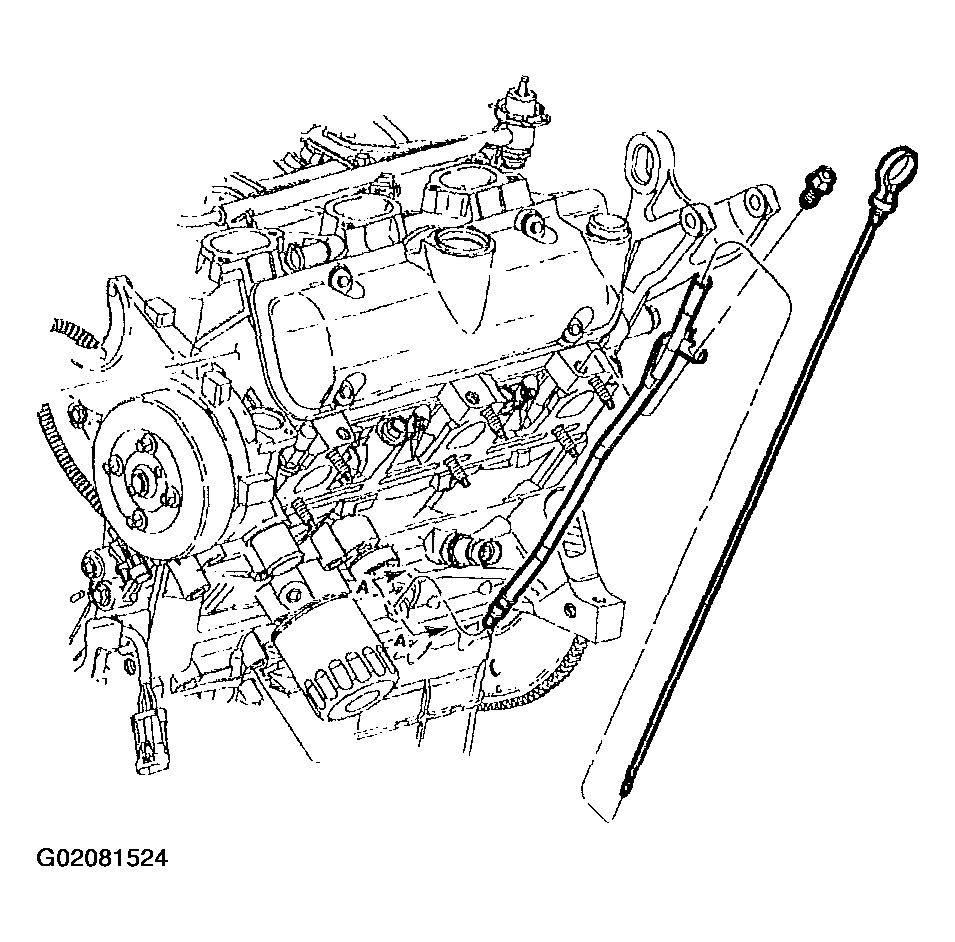

    Fig 2: Removing Oil Level Indicator And Oil Level Indicator Tube
    G02081524Courtesy of GENERAL MOTORS CORP.
