Intake Manifold Removal - Lower

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel feed and return pipe retaining clip bolt.
  2. Remove the fuel feed and return pipe retaining clip.

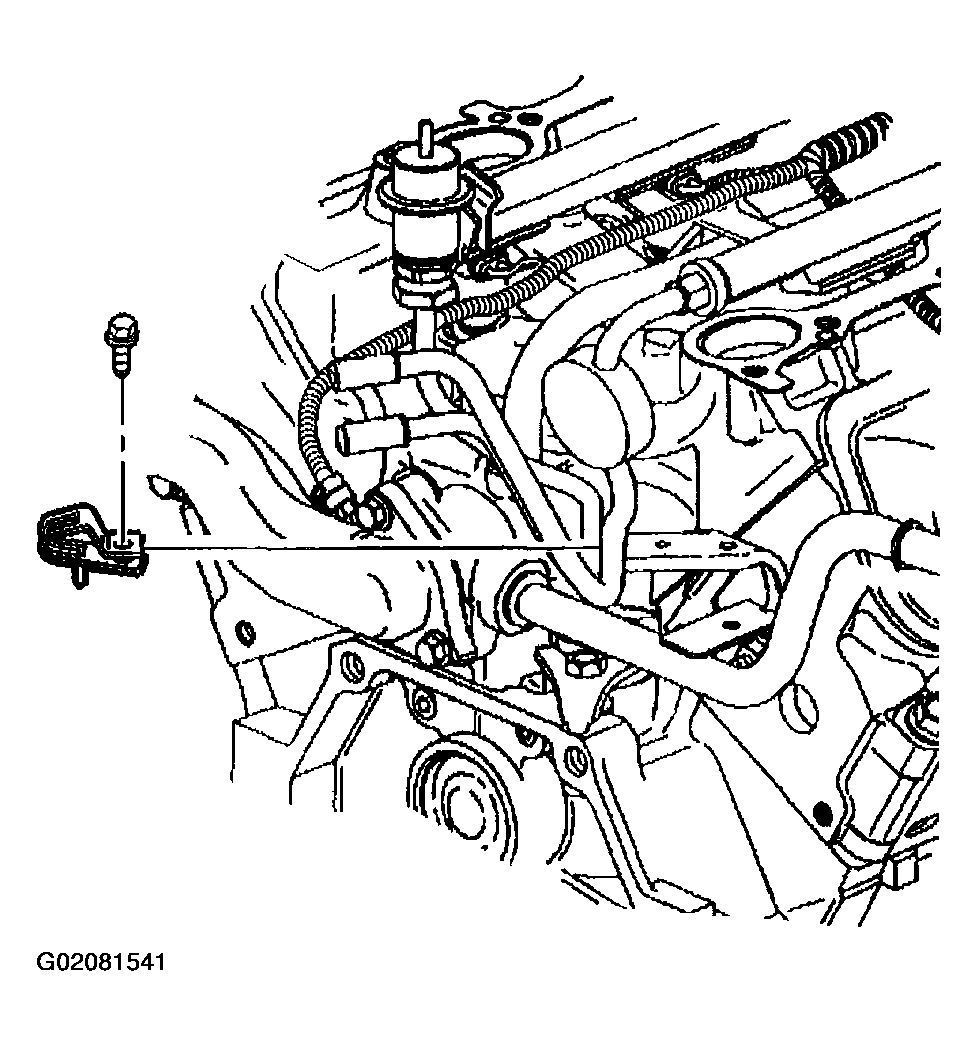

    Fig 1: Installing Return Pipe Retaining Clip
    G02081541Courtesy of GENERAL MOTORS CORP.
  3. Remove the fuel injector rail bolts.
  4. Remove the fuel injector rail assembly.

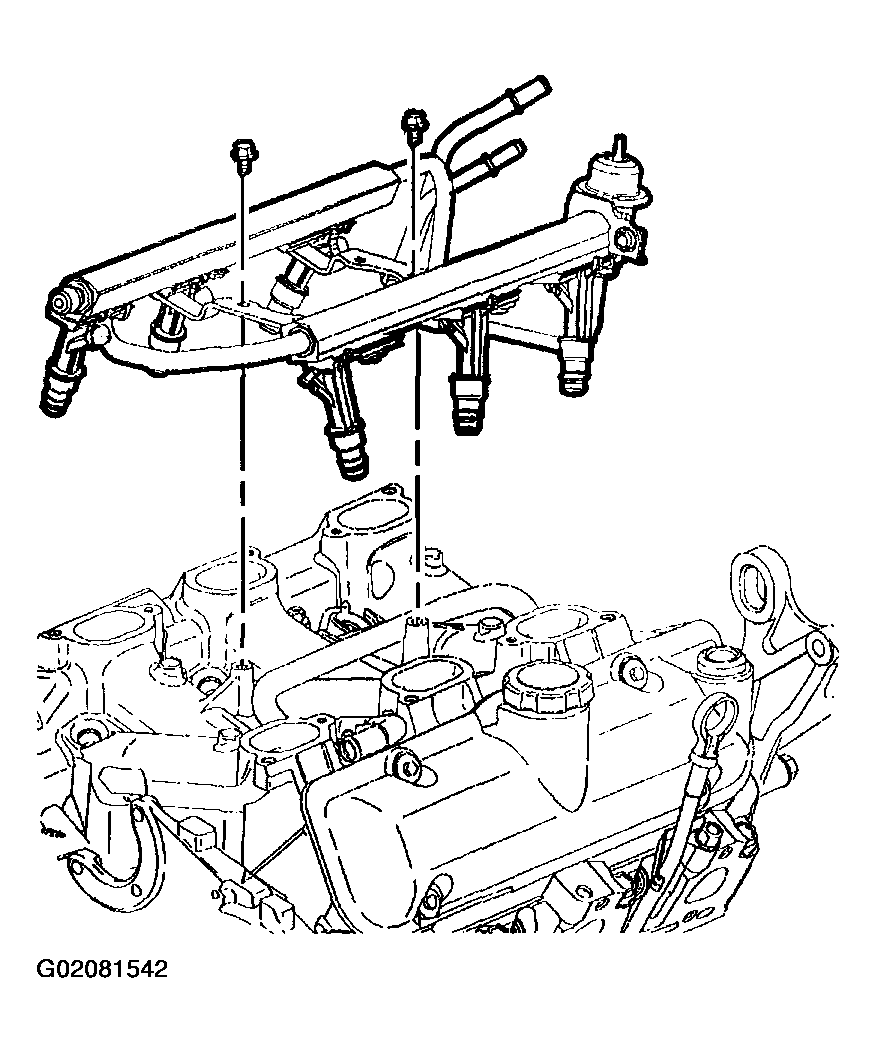

    Fig 2: Removing Fuel Injector Rail Assembly
    G02081542Courtesy of GENERAL MOTORS CORP.
  5. Remove the heater inlet pipe nut.
  6. Remove the heater inlet pipe.

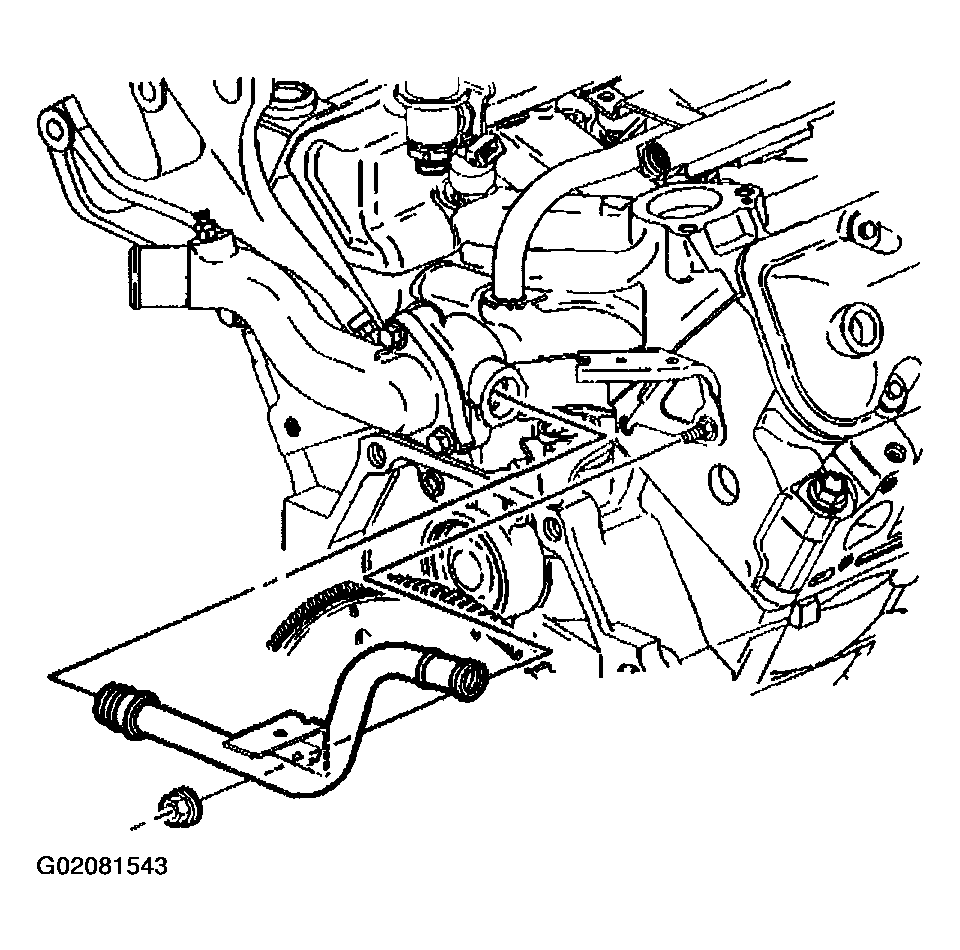

    Fig 3: Removing Heater Inlet Pipe
    G02081543Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower intake manifold bolts.
  8. Remove the lower intake manifold.

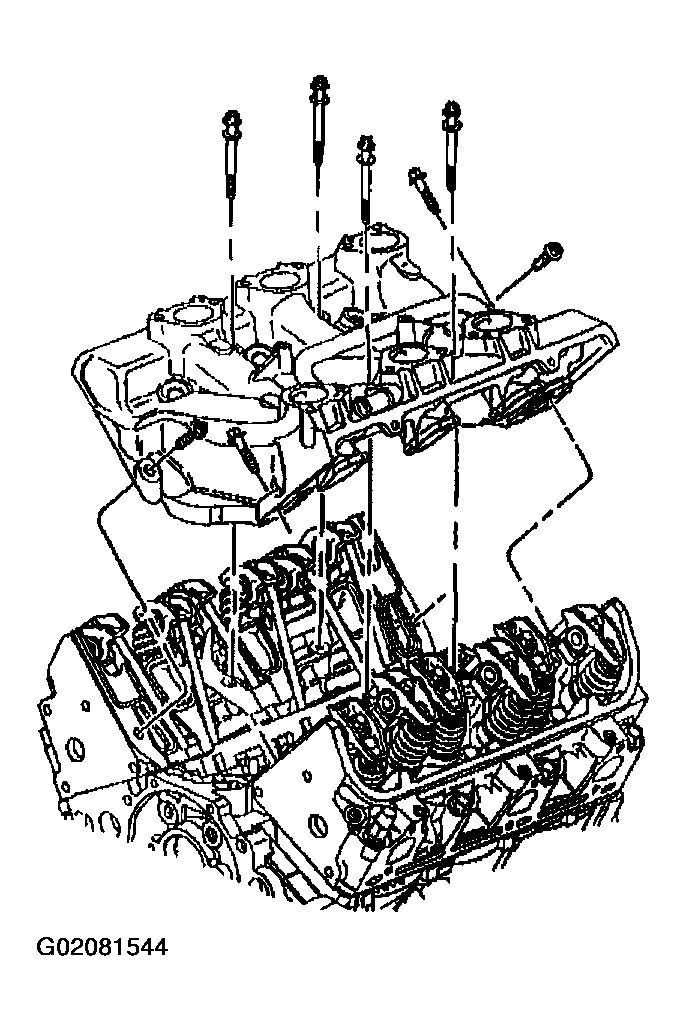

    Fig 4: Removing Lower Intake Manifold
    G02081544Courtesy of GENERAL MOTORS CORP.
