Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plug wires.
  2. Remove the spark plugs.
  3. Remove the exhaust manifold heat shield bolts.
  4. Remove the exhaust manifold heat shield.

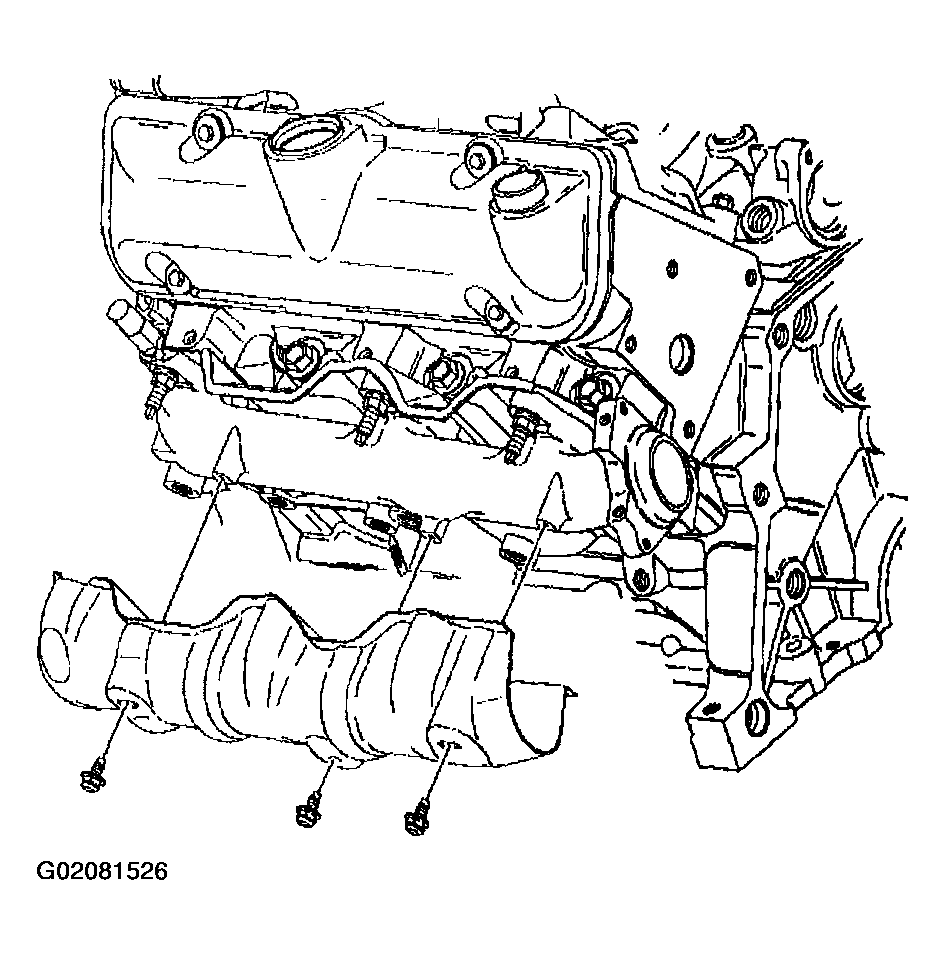

    Fig 1: Removing Exhaust Manifold Heat Shield
    G02081526Courtesy of GENERAL MOTORS CORP.
  5. Remove the exhaust manifold nuts.
  6. Remove the exhaust manifold.
  7. Remove the exhaust manifold gasket.
  8. Remove the exhaust studs, if required.

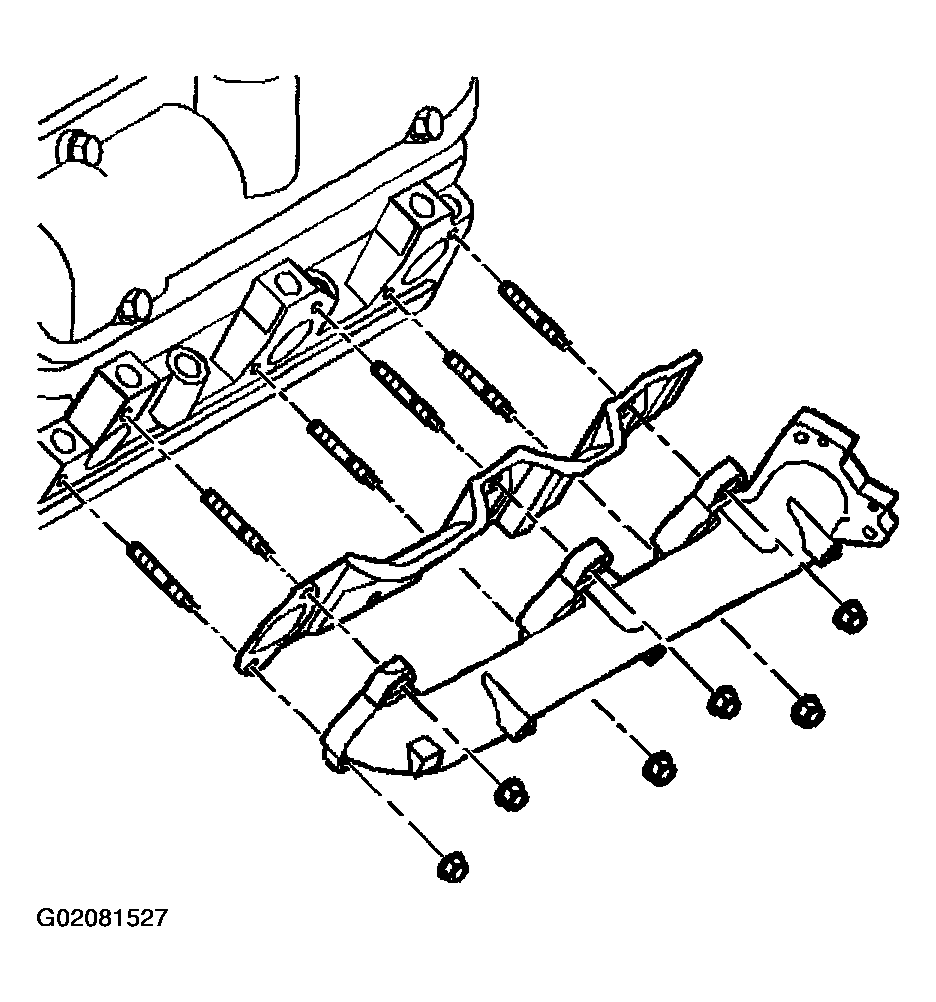

    Fig 2: Removing Exhaust Manifold Gasket
    G02081527Courtesy of GENERAL MOTORS CORP.
