Drive Belt Tensioner Removal

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt tensioner bolt.
  2. Remove the drive belt tensioner.

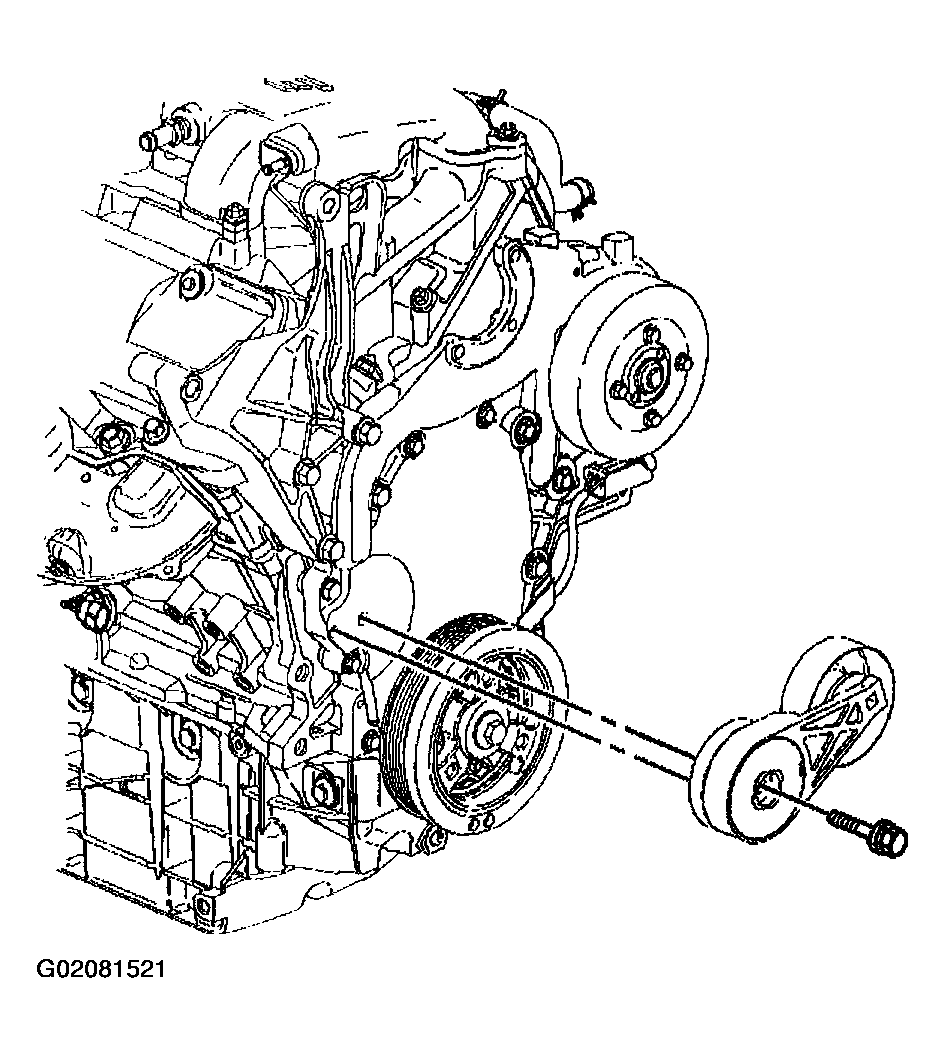

    Fig 1: Removing Drive Belt Tensioner
    G02081521Courtesy of GENERAL MOTORS CORP.
