Crankshaft Rear Oil Seal Removal

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft rear oil seal.

    Important:  Do not damage the crankshaft or seal bore.

  2. Pry out the crankshaft rear oil seal out using a suitable tool.

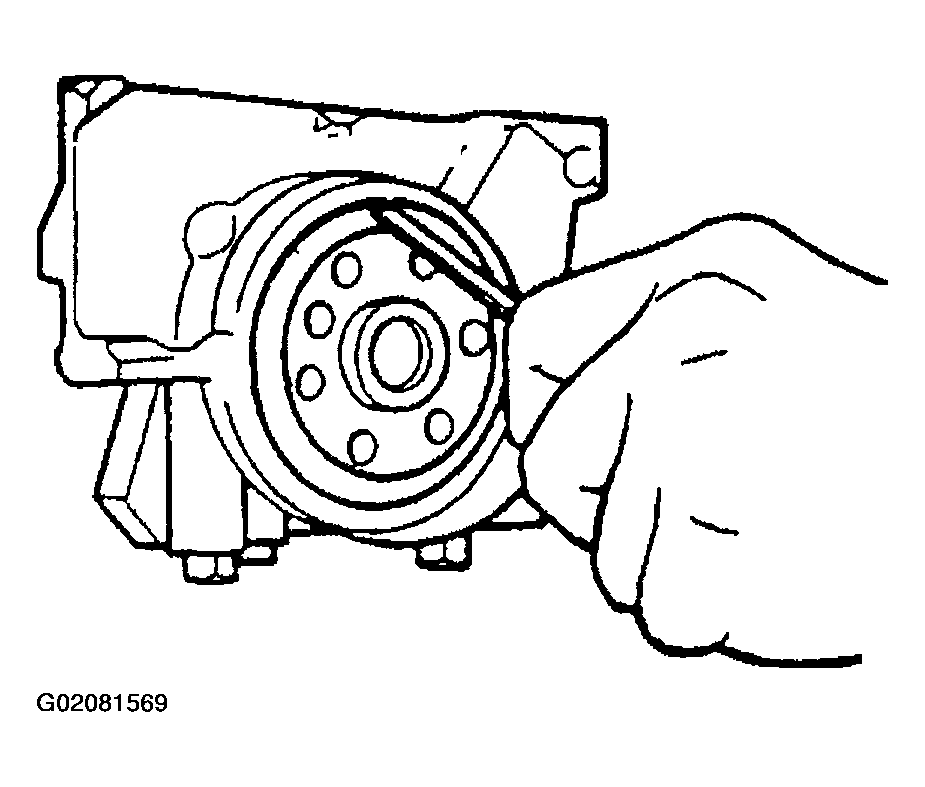

    Fig 1: Removing Crankshaft Rear Oil Seal
    G02081569Courtesy of GENERAL MOTORS CORP.
