Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

J 24420-C  Harmonic Balancer Puller

  1. Remove the crankshaft balancer retaining bolt and washer.

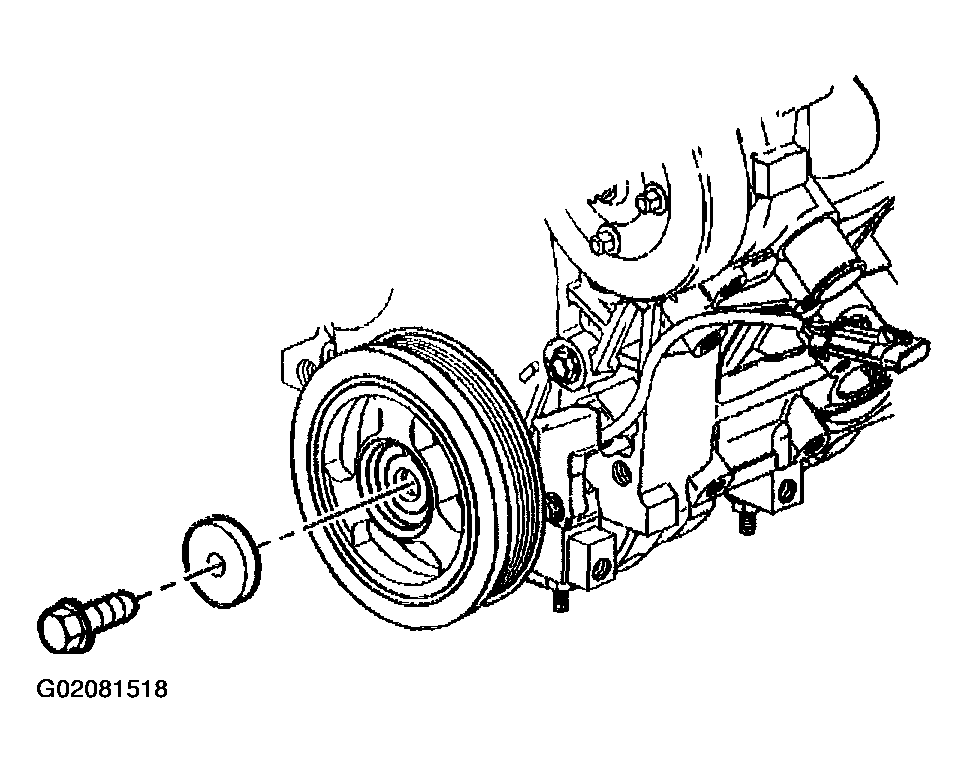

    Fig 1: Removing Crankshaft Balancer Bolt And Washer
    G02081518Courtesy of GENERAL MOTORS CORP.
  2. Remove the crankshaft balancer using the J 24420-C  .

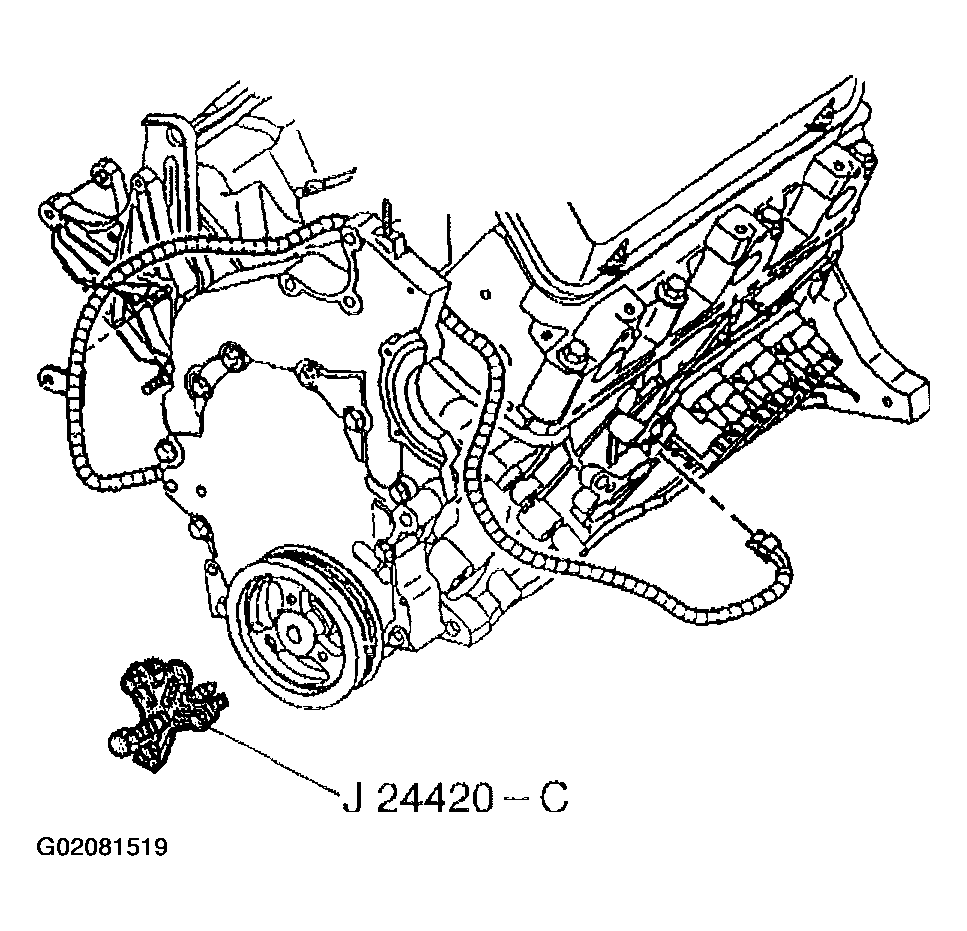

    Fig 2: Removing Crankshaft Balancer
    G02081519Courtesy of GENERAL MOTORS CORP.
