Test Description

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to step numbers on the Diagnostic Table.

  1. 2. This step determines if the DTC is current.

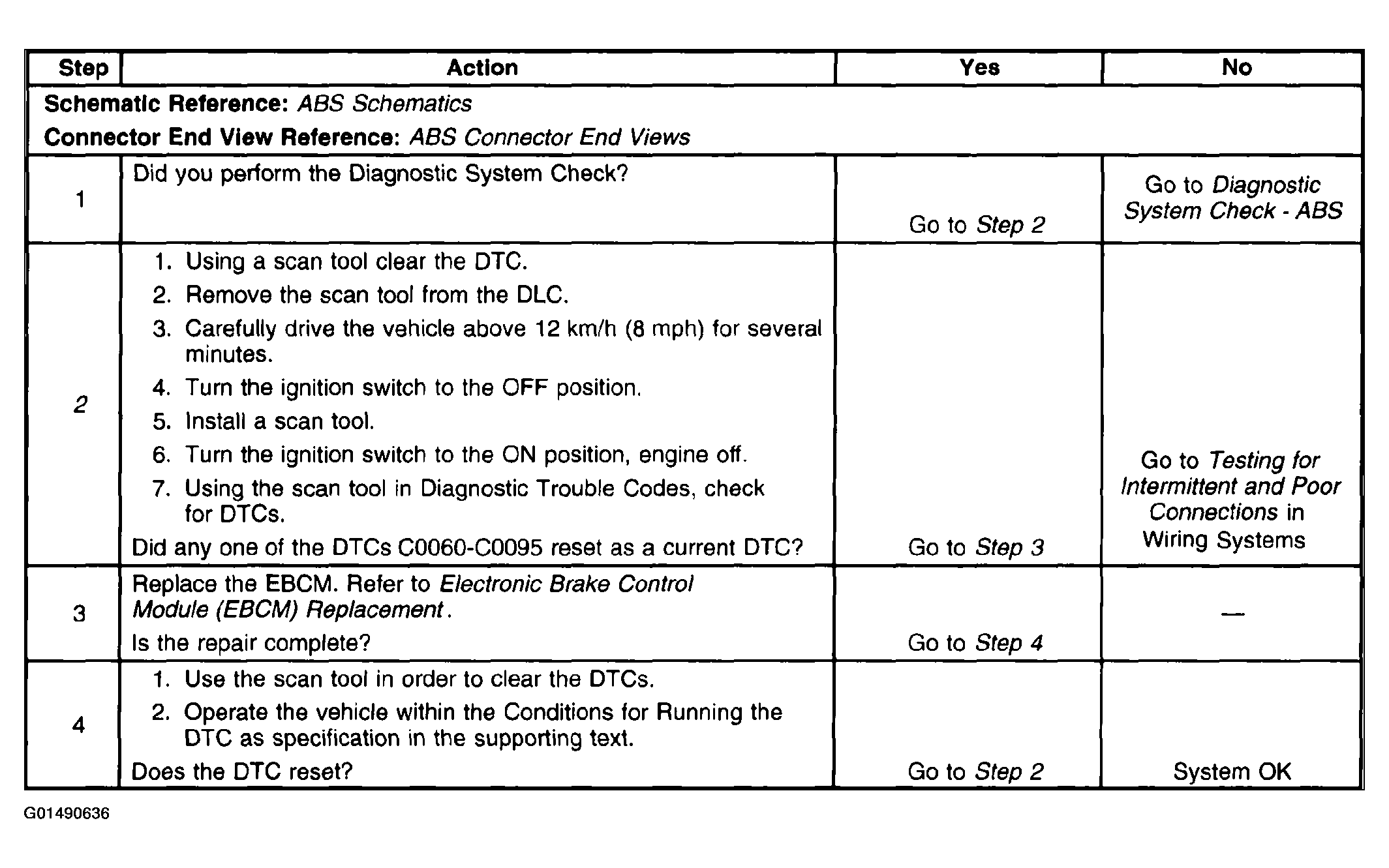

Fig 1: DTC C0060-C0095
G01490636Courtesy of GENERAL MOTORS CORP.
