Test Description

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 4. This step tests the wheel speed sensor for the proper resistance value.
  2. 5. This step ensures that the wheel speed sensor generates the proper voltage.

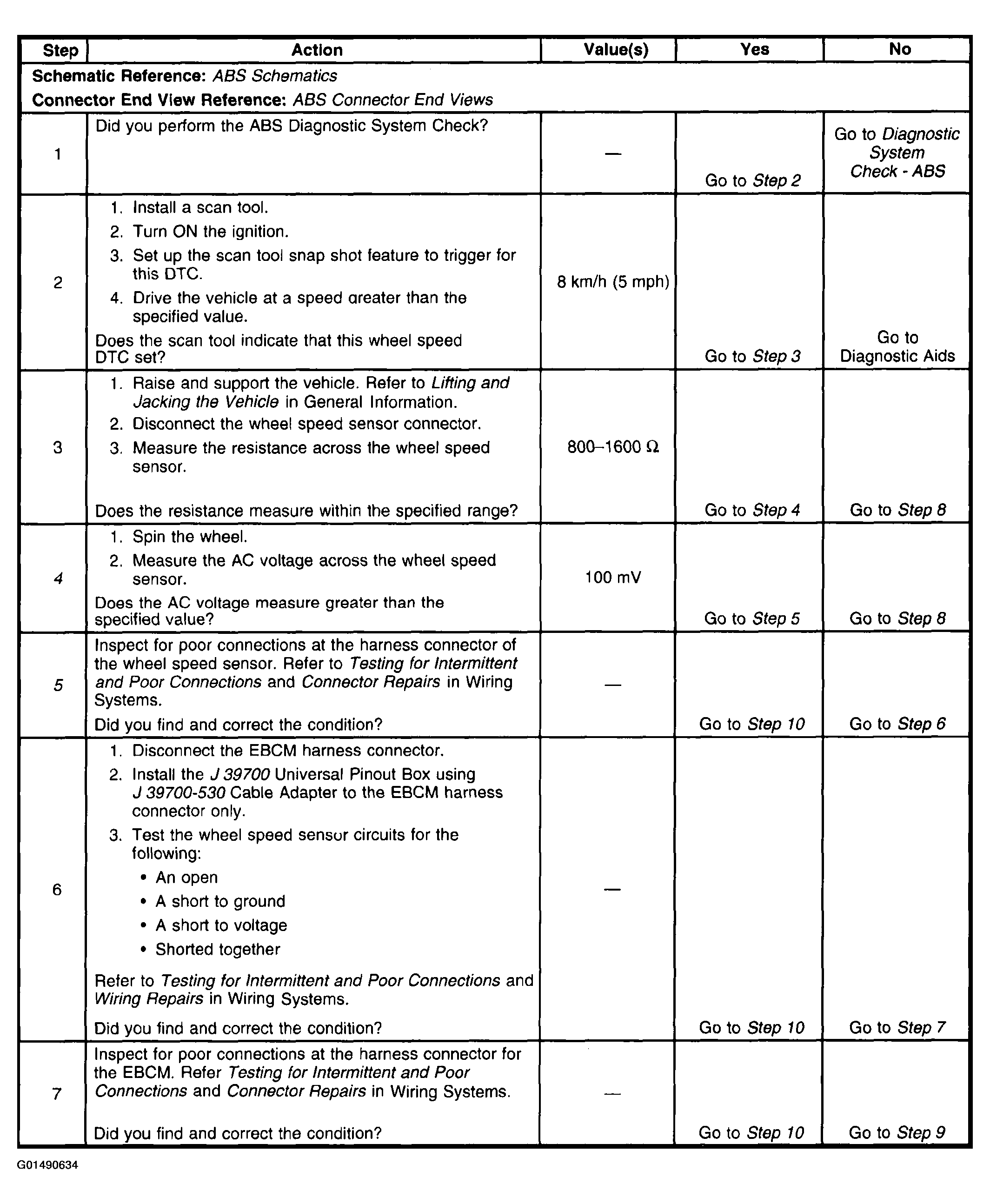

Fig 1: DTC C0035-C0051 (Steps 1 - 7)
G01490634Courtesy of GENERAL MOTORS CORP.

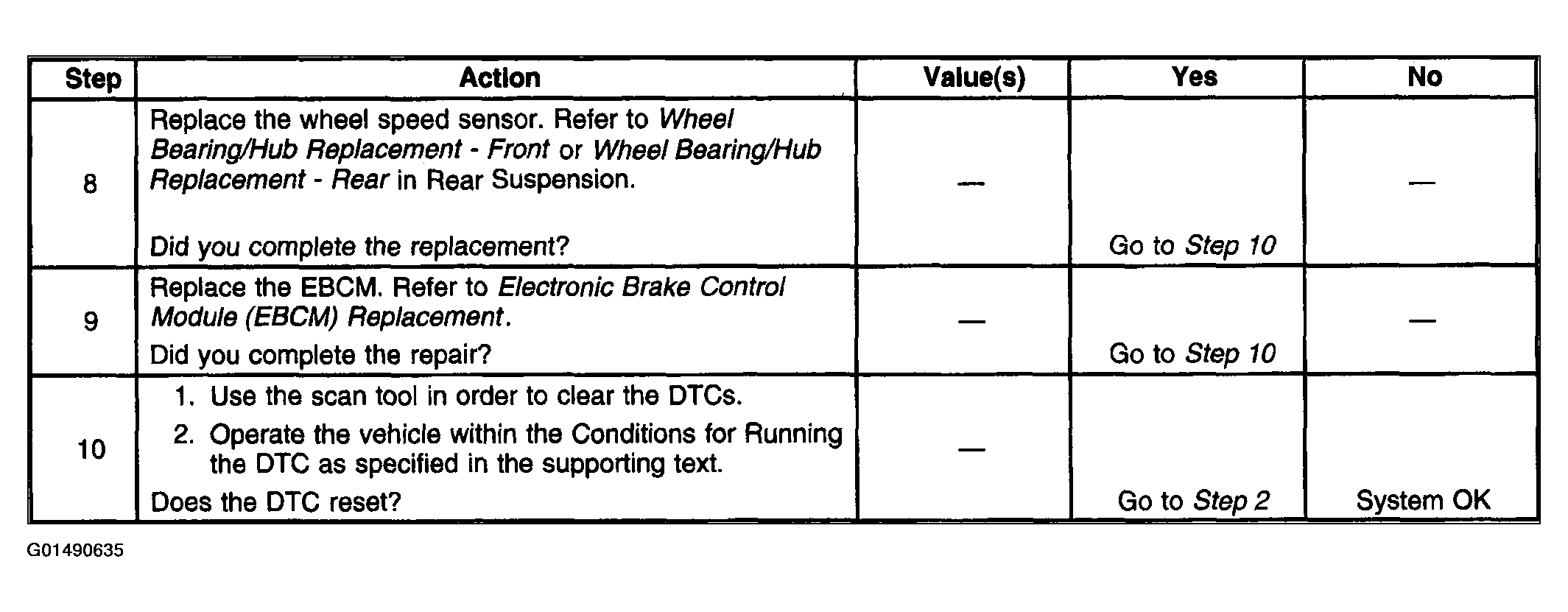

Fig 2: DTC C0035-C0051 (Steps 8 - 10)
G01490635Courtesy of GENERAL MOTORS CORP.
