Vehicle Leads/Pulls

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

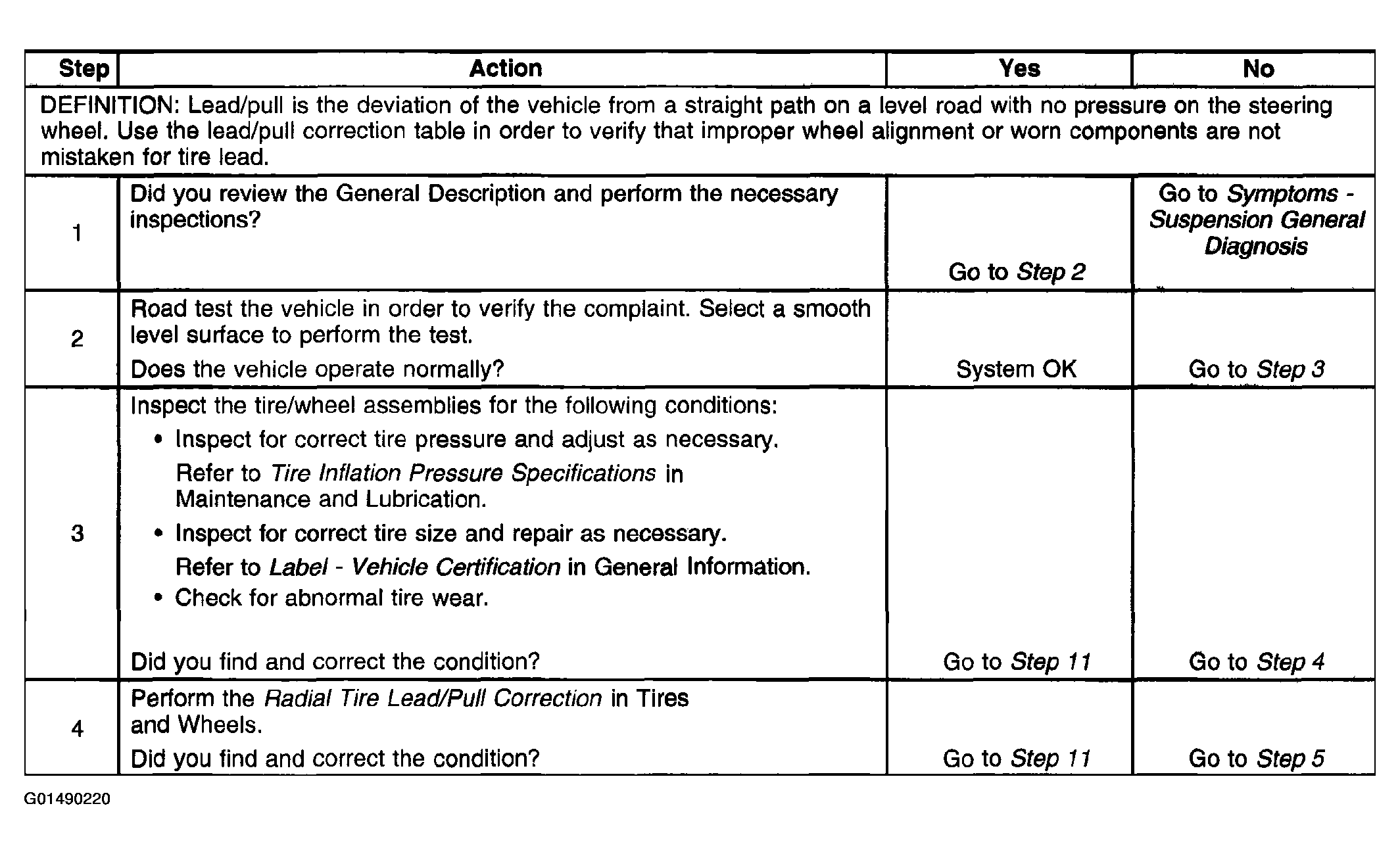

Fig 1: Vehicle Leads/Pulls (Steps 1 - 4)
G01490220Courtesy of GENERAL MOTORS CORP.

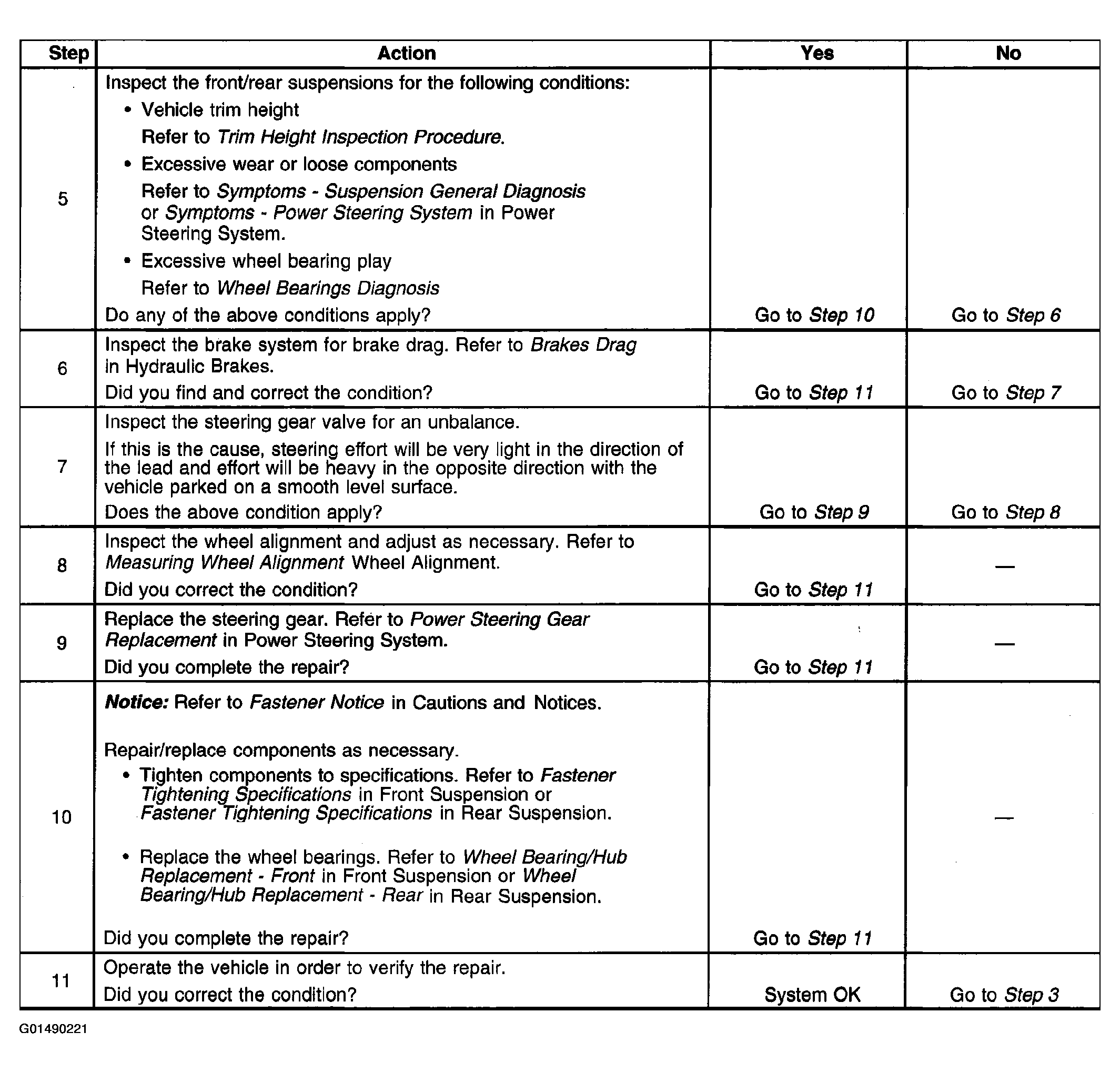

Fig 2: Vehicle Leads/Pulls (Steps 5 - 11)
G01490221Courtesy of GENERAL MOTORS CORP.
