Suspension Bottoms

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

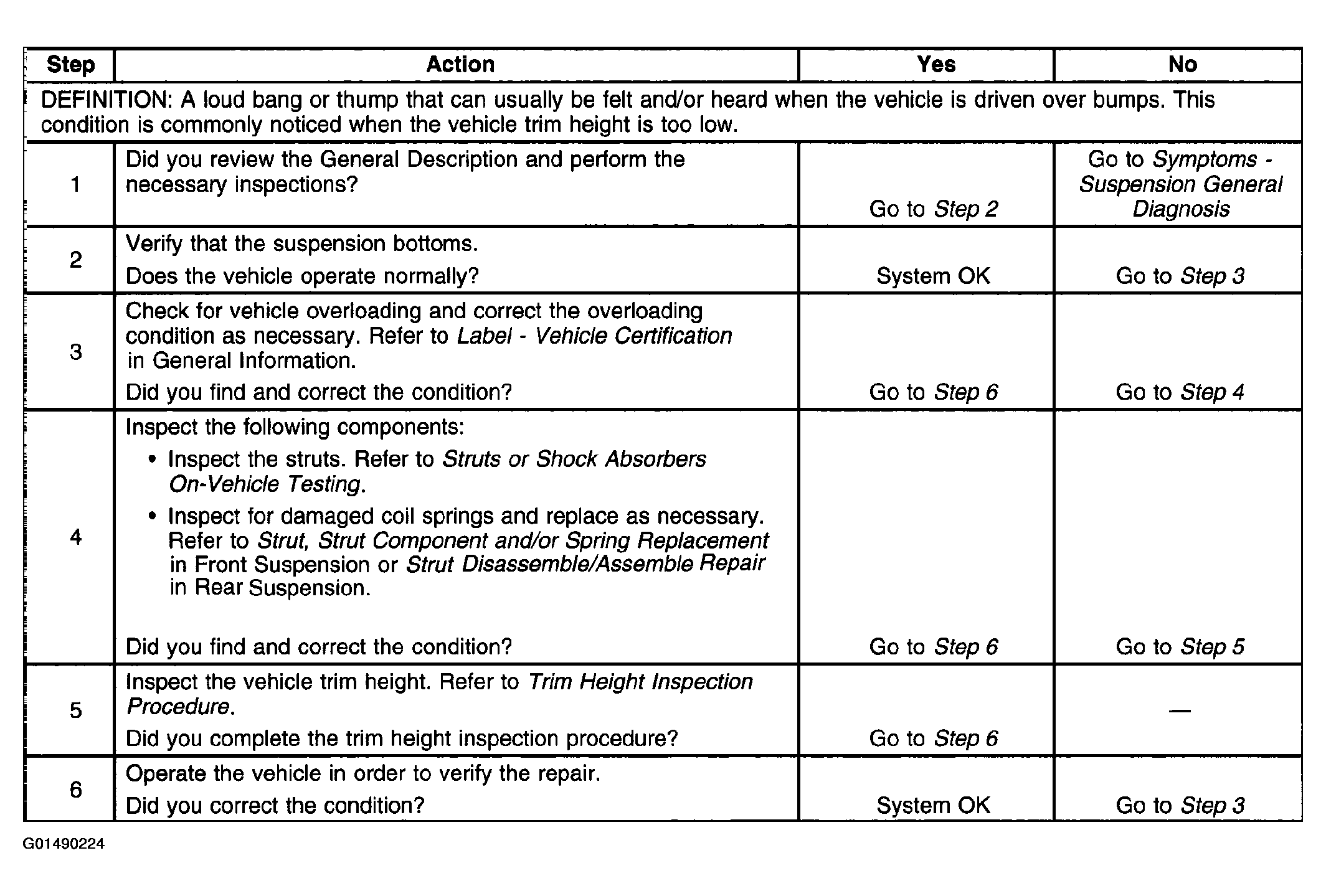

Fig 1: Suspension Bottoms
G01490224Courtesy of GENERAL MOTORS CORP.
