Struts or Shock Absorbers On-Vehicle Testing

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

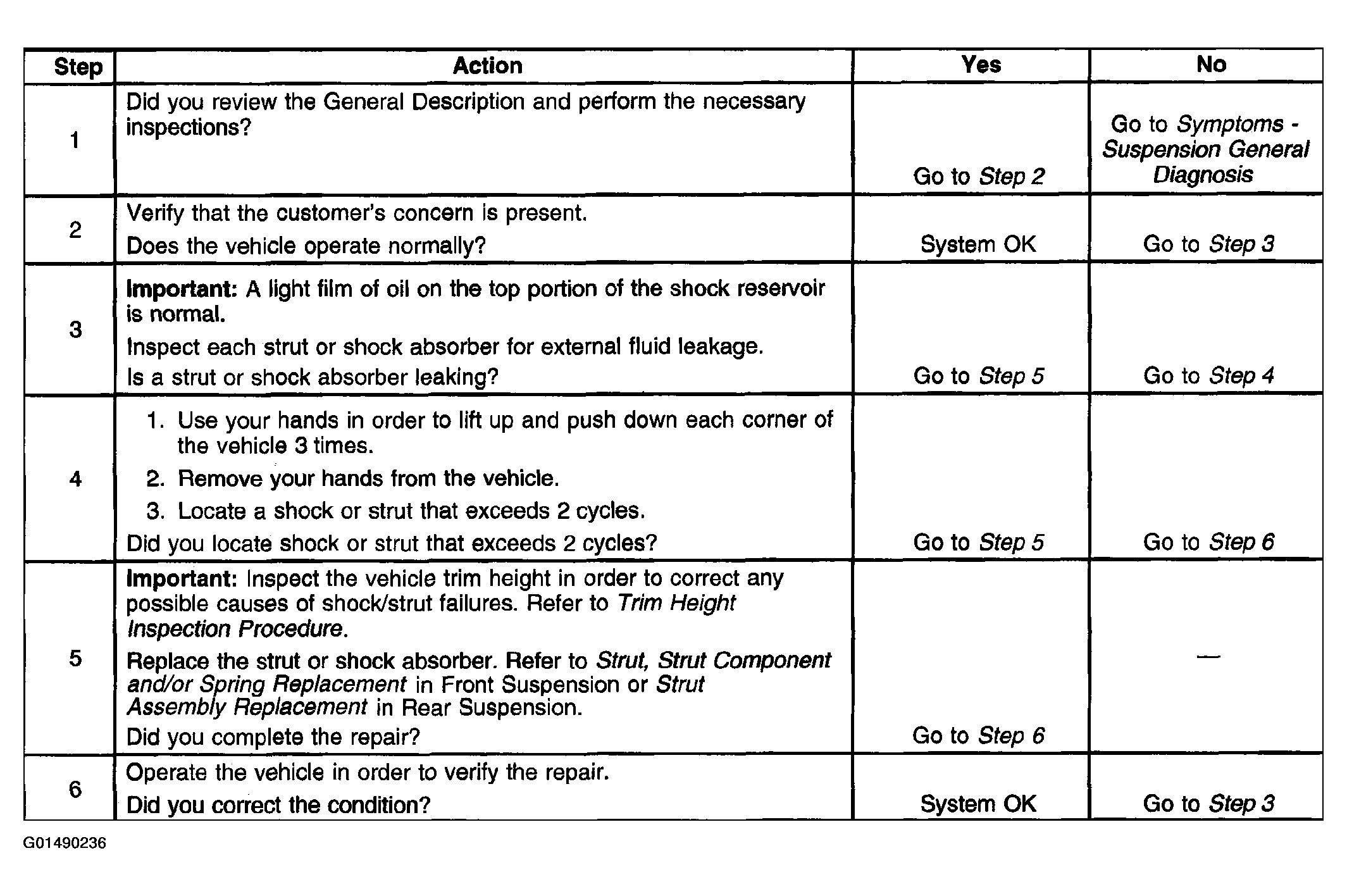

Fig 1: Struts Or Shock Absorbers On-Vehicle Testing
G01490236Courtesy of GENERAL MOTORS CORP.
