Memory Steer

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

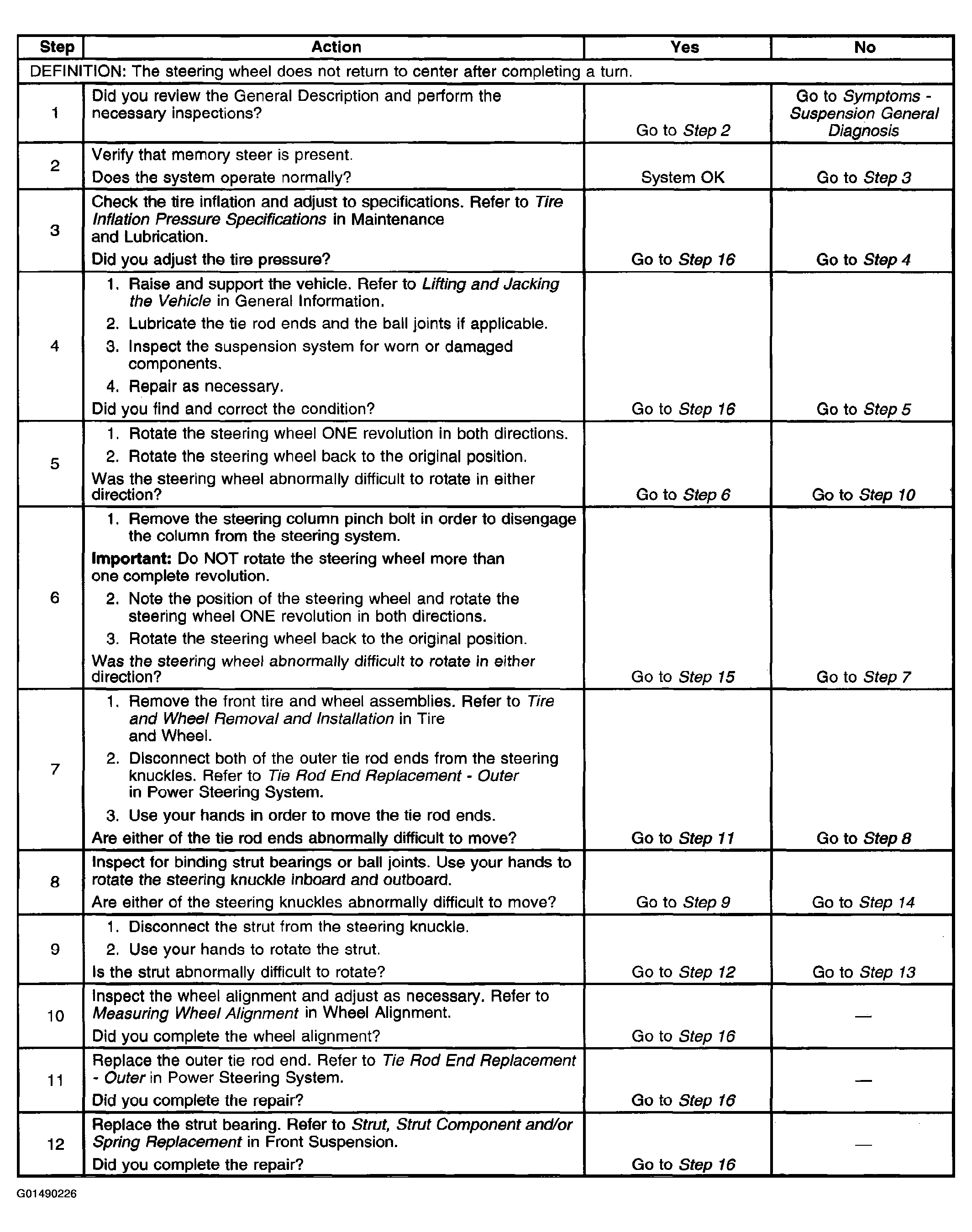

Fig 1: Memory Steer (Steps 1 - 12)
G01490226Courtesy of GENERAL MOTORS CORP.

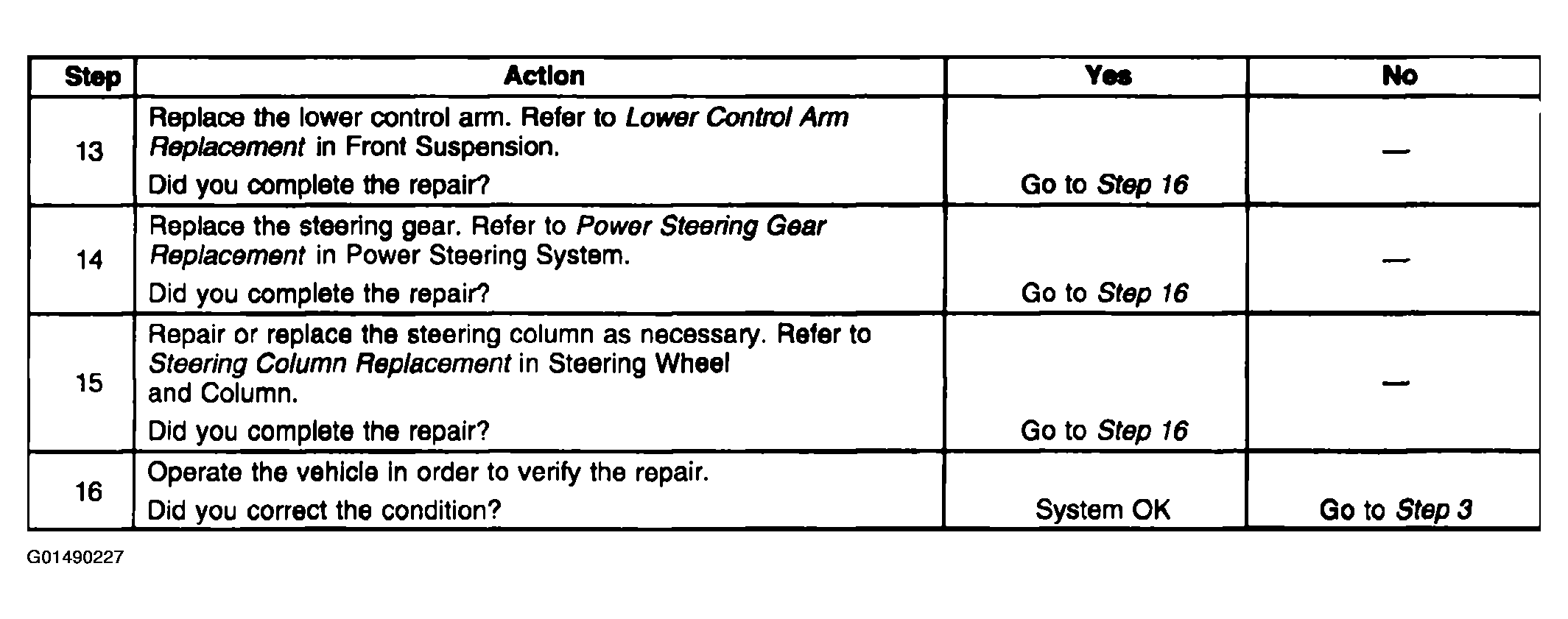

Fig 2: Memory Steer (Steps 13 - 16)
G01490227Courtesy of GENERAL MOTORS CORP.
