High Lock Effort

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

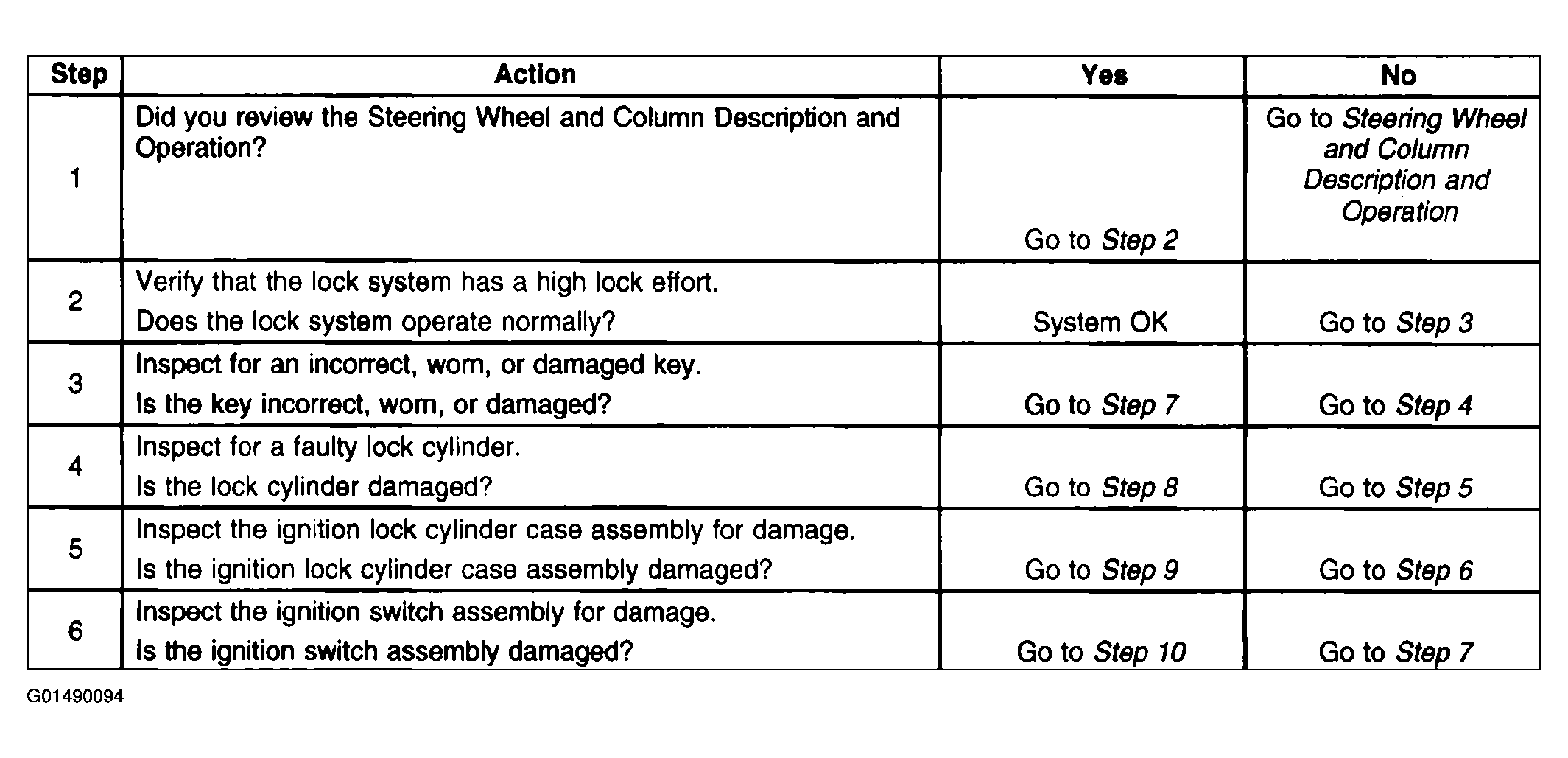

Fig 1: High Lock Effort (Steps 1 - 6)
G01490094Courtesy of GENERAL MOTORS CORP.

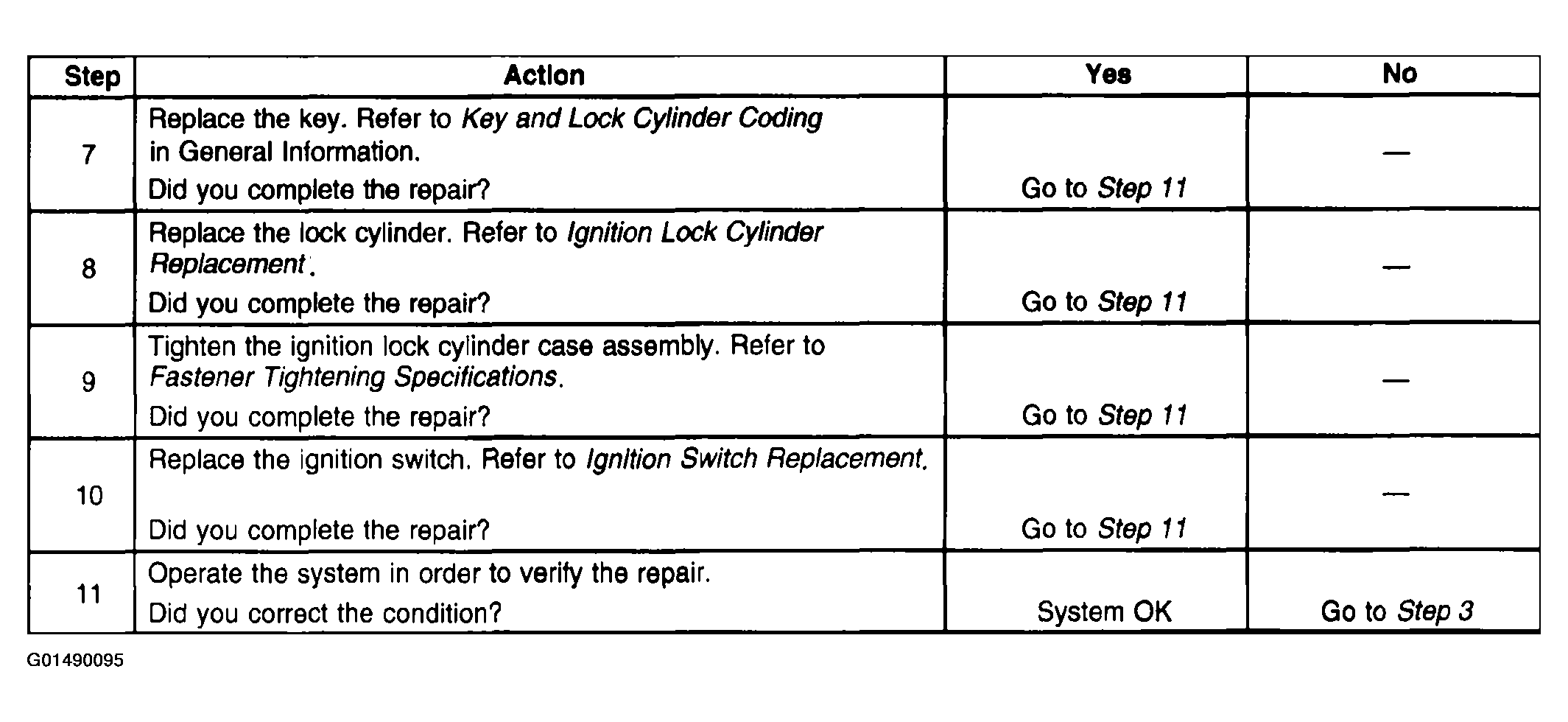

Fig 2: High Lock Effort (Steps 7 - 11)
G01490095Courtesy of GENERAL MOTORS CORP.
