Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  2. Remove the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) .
  3. Disconnect the electrical connector from the right air temperature actuator.

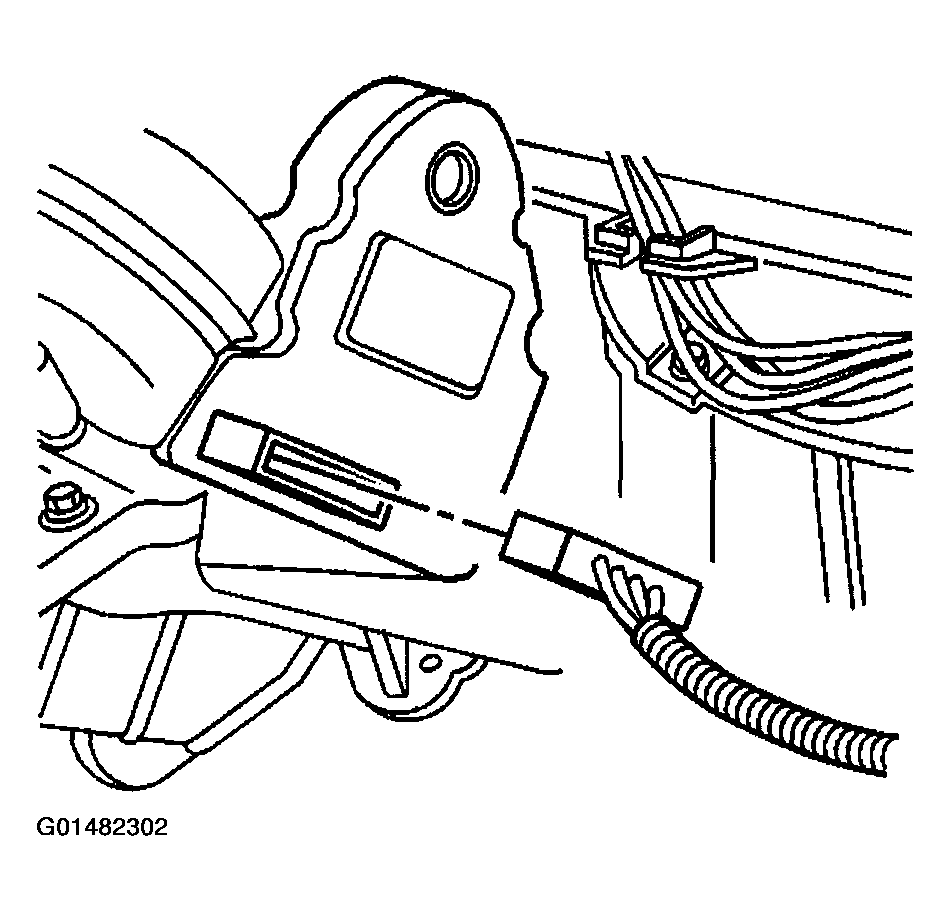

    Fig 1: Disconnecting Electrical Connector From Right Air Temperature Actuator
    G01482303Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws retaining the right air temperature actuator.
  5. Remove the right electric actuator.

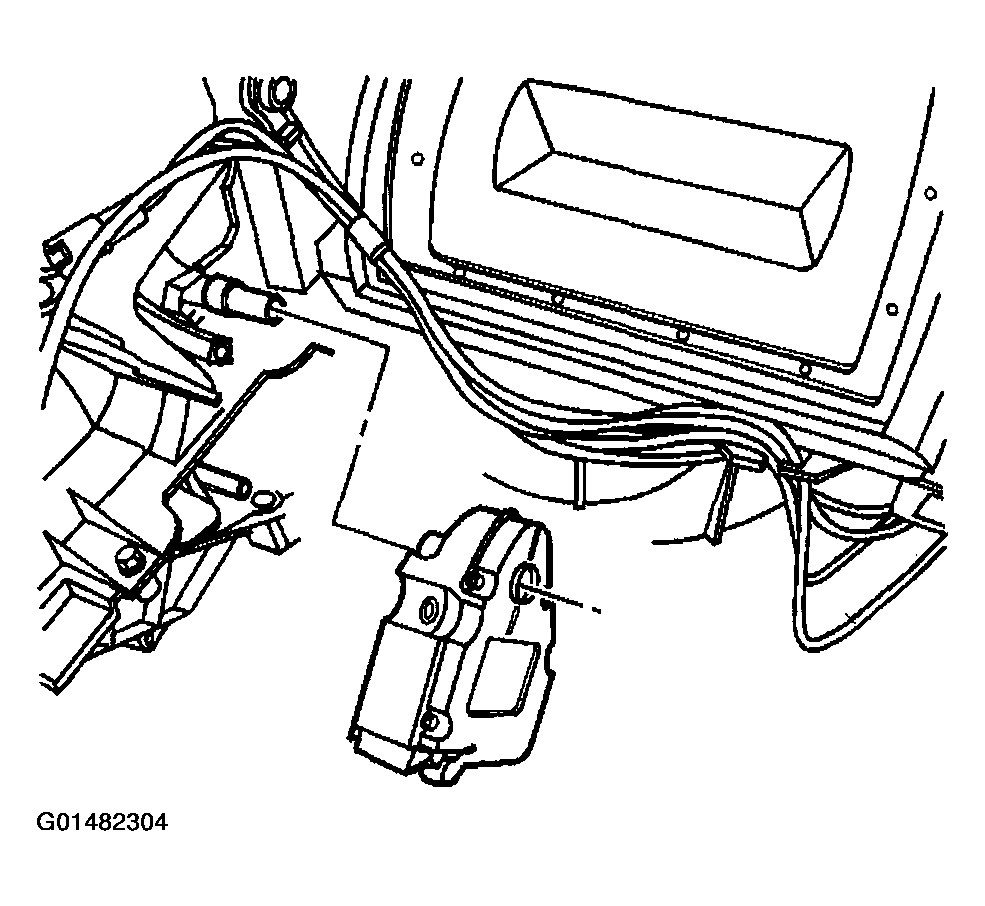

    Fig 2: Removing Right Electric Actuator
    G01482304Courtesy of GENERAL MOTORS CORP.
